Description

Price

1

Silencer

63505183000

Unavailable

2

Heat protection black cmpl.

63505111000C1

$143.79

3

Torx screw M5x10 black

78105181010

$1.49

4

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

5

DAMPING ELEMENT SILICON

27005011011

$8.50

6

MANIFOLD GASKET

69005005005

$16.82

7

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

8

CLAMP CPL.

69005050000

$24.58

9

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

10

Pre-muffler

64105050000

$1,529.28

11

O2 Sensor LSF 4

63541090000

$138.46

12

O2 Sensor LSF 4

63541190000

$138.46

13

Header

64105007100

$600.36

14

self-locking nut M8 Cu

51010086100

$3.08

15

Exhaust gasket

64105005000

$5.23

17

collar bushing 8.5x12x23.5x10

58405050065

$5.23

18

damp. component silicone grey

54305068100

$8.31

19

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

$2.05

20

Shape disc Alu

60405069000

$3.08

21

Bushing 8.5X11X29

61305069000

$19.07

22

stud screw 835 M8x25 - 10.9

63505015000

$2.05

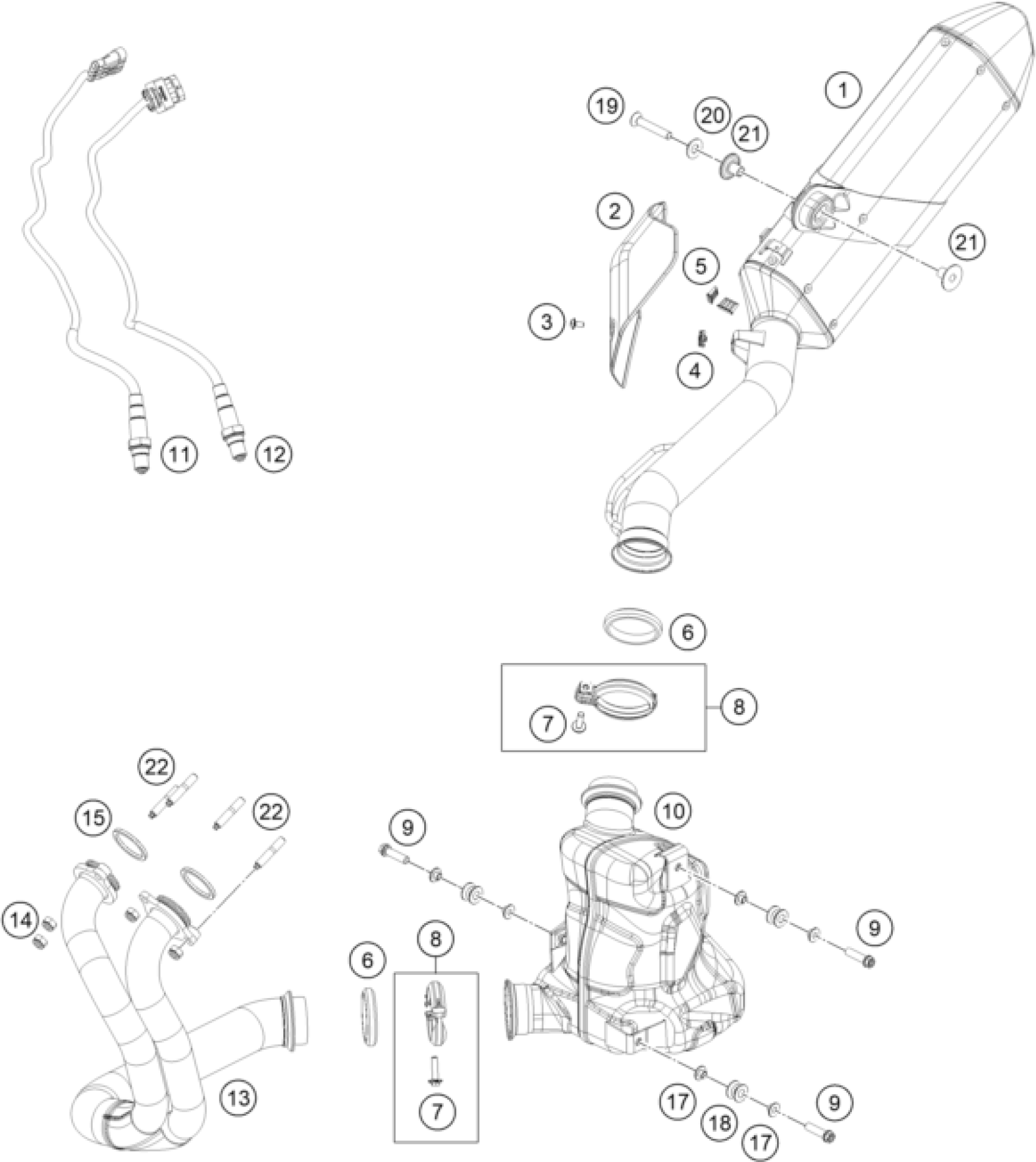

KTM 790 ADVENTURE, orange 2021 EXHAUST SYSTEM Diagram

Silencer

Heat protection black cmpl.

Torx screw M5x10 black

RANGE CHANGE METAL NUT M5 INOX

DAMPING ELEMENT SILICON

MANIFOLD GASKET

HH COLLAR SCREW M6X25 TX30

CLAMP CPL.

HH COLLAR SCREW M8X35 TX40

Pre-muffler

O2 Sensor LSF 4

O2 Sensor LSF 4

Header

self-locking nut M8 Cu

Exhaust gasket

collar bushing 8.5x12x23.5x10

damp. component silicone grey

COUN.-SUNK SCREW M8X50 ISA10.9

Shape disc Alu

Bushing 8.5X11X29

stud screw 835 M8x25 - 10.9
