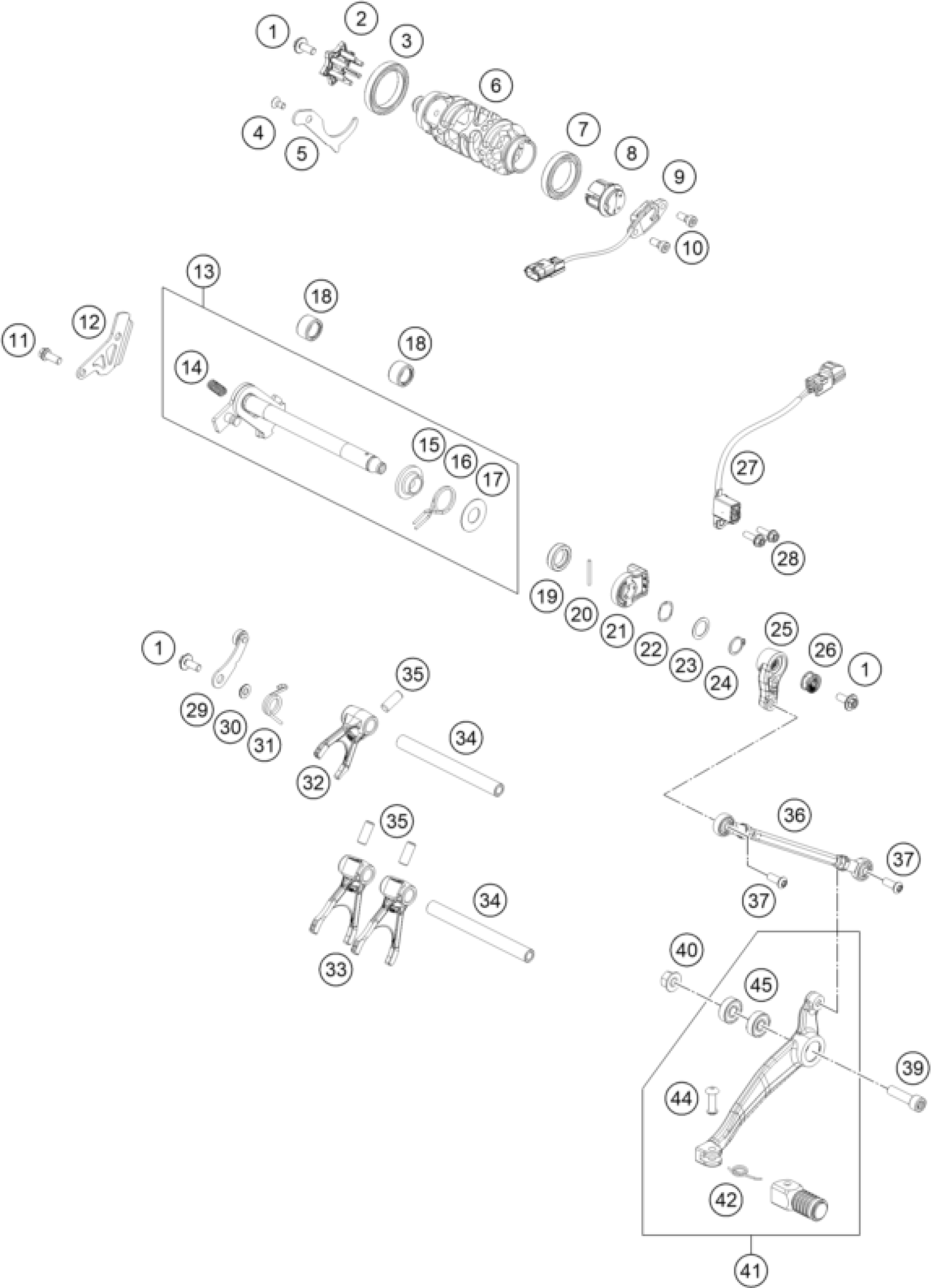

KTM 790 Adventure, orange 2019 SHIFTING MECHANISM Diagram

#

Description
Price

1

HH collar screw M6x15 TX30

0024060156S

Unavailable

2

Shift locker cpl.

63534015000

Unavailable

3

deep groove ball bearing 6807

0625068070

Unavailable

4

hex lobe countersunc screw M5x

0019050106S

Unavailable

5

Locking plate

63534011000

Unavailable

6

shift drum 6G

63534012001

Unavailable

7

deep groove ball bearing 6806

0625068060

Unavailable

8

Magnet bracket cmpl.

79234012020

Unavailable

9

gear position sensor

79211023000

Unavailable

10

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

Unavailable

11

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

12

bearing retaining plate

63533022000

Unavailable

13

shift shaft cpl.

63534005033

Unavailable

14

TENSIONING SPRING 0,8MM

56534013100

Unavailable

15

SPRING GUIDE

54634020000

Unavailable

16

RETURNSPRING 2MM

61234014000

Unavailable

17

STOP DISK 14X30X1

54634050000

Unavailable

18

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

19

radial shaft seal 14x24x6 B

0760142460

Unavailable

20

dowel pin DIN 7 A1 2.5m6x24

0007025241

Unavailable

21

magnet holder

63534050000

Unavailable

22

wave spring Smalley SSB-0075-S

63534050010

Unavailable

23

Thrust washer DIN 988 14x20x0.

0988142005

Unavailable

24

retaining ring DIN 471 14x1

0471140100

Unavailable

25

Pull Rod

6413403000033

Unavailable

26

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

27

Shift assistant sensor

63534051000

Unavailable

28

HH Collar Screw M5x16 ISA30 SS

0025050166S

Unavailable

29

detent arm cpl.

63534024000

Unavailable

30

step washer

63534052000

Unavailable

31

Detent arm spring

63534023000

Unavailable

32

shift fork 5-6 gear

63534002000

Unavailable

33

shift fork 1.-4. gear

63534001000

Unavailable

34

shift fork shaft

75034019100

Unavailable

35

needle roller D8x20

0402080200

Unavailable

36

Shift rod cmpl.

63534036044

Unavailable

37

Oval head screw ISR M6x20-A2-7

0738060205S

Unavailable

39

screw ISO 14579-M8x30-10.9-MK

014579080301S

Unavailable

40

Self locking nut M8 10.9

54310086200

Unavailable

41

Gear shift lever preassembled

6353403104433

Unavailable

42

SHIFTING LEVER SPRING 250

54634032100

Unavailable

44

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

45

Grooved ball bearing 608 2RS C

0625006087

Unavailable
