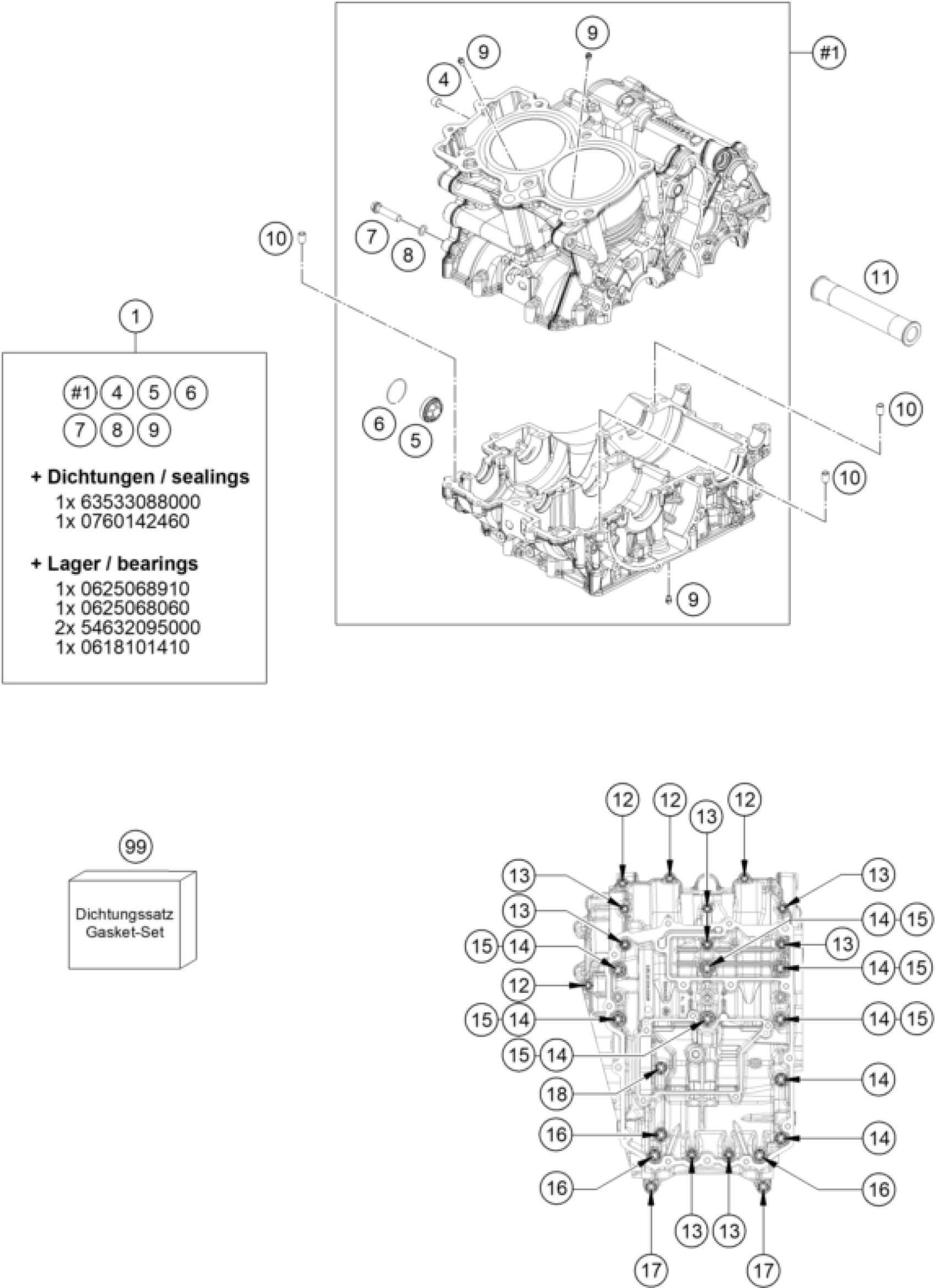

KTM 790 Adventure, orange 2019 ENGINE CASE Diagram

#

Description
Price

1

Engine case cmpl.

6353000014424

$1,952.27

4

pipe plug DIN 906 M10x1

0906100100

$4.11

5

OIL SIGHT GLASS

59030019200

$21.31

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

7

HH collar screw M8x35 TX40

0025080356

$4.11

8

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

9

oil jet 70 M5

60030063070

$8.59

10

dowel sleeve 6x8x11.5

59030023000

$1.49

11

housing socket

63530010000

$41.51

12

HH collar screw M6x30 TX30

0025060306

$3.08

13

HH collar screw M6x60 TX30

0025060606

$3.08

14

HH collar screw M8x90 TX40

0025080906

$4.11

15

washer DIN 125 A -8.4

0125080003

$1.49

16

HH collar screw M8x65 TX40

0025080656

$4.11

17

HH collar screw M8x55 TX40

0025080556

$5.23

18

HH collar screw M8x45 TX40

0025080456

$4.11

99

Engine gasket 790 Duke

63530099000

$252.16
