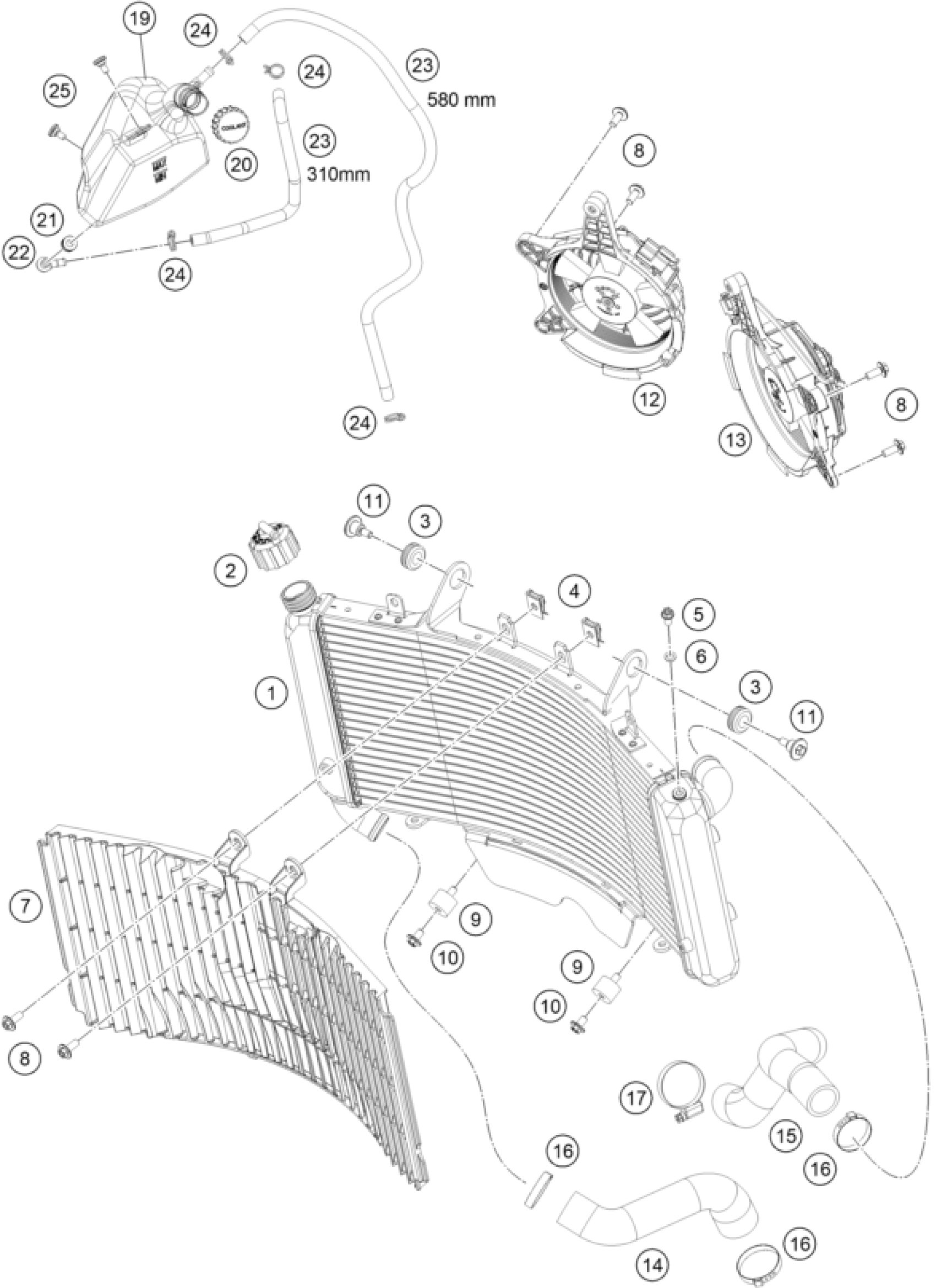

KTM 790 Adventure, orange 2019 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator

63535010000

Unavailable

2

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

3

RUBBER SLEEVE D=12MM

41001052000

Unavailable

4

clip nut M6

54603048100

Unavailable

5

HH collar screw M6x12 TX30

0025060126

Unavailable

6

ALU-GASKET 6X10X1.5

60035048000

Unavailable

7

Radiator protection

63535040000

Unavailable

8

HH collar screw M6x15 TX30

0024060156

Unavailable

9

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

10

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

11

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

12

Radiator fan right, cmpl.

63535141044

Unavailable

13

Fan left cpl.

63535041044

Unavailable

14

molded hose radiator

63535026000

Unavailable

15

molded hose radiator

63535027000

Unavailable

16

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

17

Hose clamp 25-40 SGT 4

10001120000

Unavailable

19

expansion tank water

63535065001

Unavailable

20

Latch, compens. tank cpl.

60335066044

Unavailable

21

RUBBER SLEEVE 6X9X14MM

70003065000

Unavailable

22

Angle piece, reservoir

60035068000

Unavailable

23

HOSE 6X10 EPDM 03

60035067001

Unavailable

24

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

25

special screw M5x12

69008021160

Unavailable
