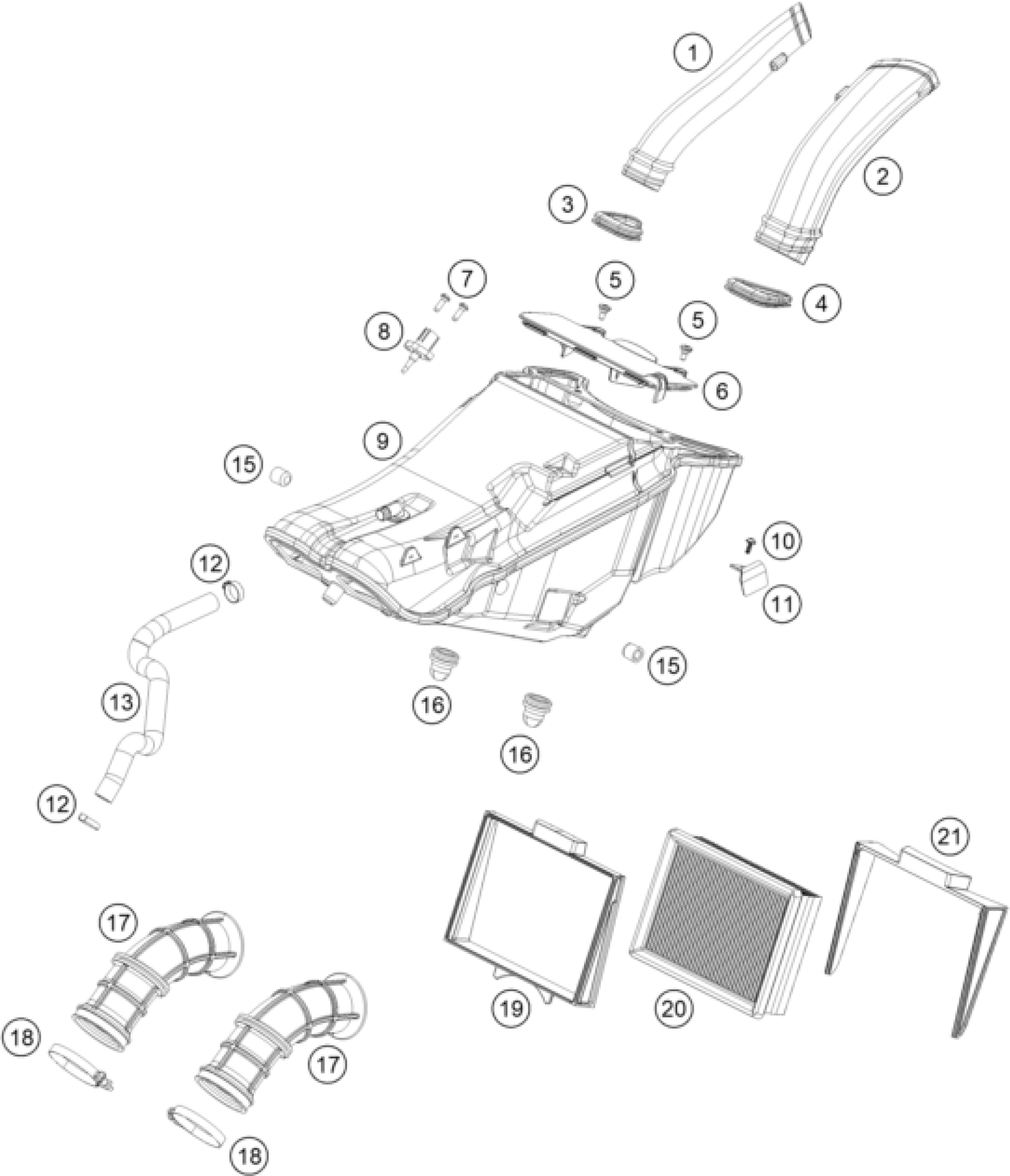

KTM 790 Adventure, orange 2019 AIR FILTER Diagram

#

Description
Price

3

Intake duct gasket, right

63506040050

Unavailable

4

Intake duct gasket, left

63506041050

Unavailable

5

special screw M5x12

69008021160

Unavailable

6

Air filter box cover

63506002000

Unavailable

7

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

8

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

9

Air filter box

63506001000

Unavailable

10

EJOT PT screw K50x12

0081050121

Unavailable

11

Cable holder air filter box

63506002060

Unavailable

15

rubber grommet

76006014000

Unavailable

16

RUBBER GRIMMET SLOTTED

50206020000

Unavailable

17

Velocity stack

63506026000

Unavailable

18

Hose clip GEMI 58

77236048000

Unavailable

19

Filter clamp frame

63506016000

Unavailable

20

AIR FILTER

60306015100

Unavailable

21

Filter clamp wedge

63506017000

Unavailable

1

Intake duct, right

63506041000

Unavailable

2

Intake duct, left

63506040000

Unavailable

13

Pre-formed hose engine breathe

63530087000

Unavailable

12

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

Unavailable
