Description

Price

1

Intake camshaft

C90036509044

$139.59

2

Exhaust camshaft

C90036510044

$202.23

3

Venting centrifuge

C90036080000

$2.05

4

slide bars

63536001000

$24.49

5

Tension Rail

63536002100

$41.13

6

ISA collar screw M8x25 ISA45

0035080256S

$2.05

7

Collar bush d8xD10x13.2

C63536002150

$2.52

8

Timing chain

63536013100

$40.10

9

slide bars, top cpl.

63536005000

$10.00

10

HH collar screw M6x20 TX30

0025060206S

$2.05

11

chain tension adjuster

77036003100

$63.85

12

o-ring 18.00x2.00 NBR70

C0770180020

$1.49

13

o-ring 22.00x2.00 NBR70

C0770220020

$1.49

14

chain tension adjuster plug

C61236008201

$20.09

15

o-ring 10.00x1.00 NBR70

C0770010010

$1.49

16

SCREW PLUG

77236080000

$6.63

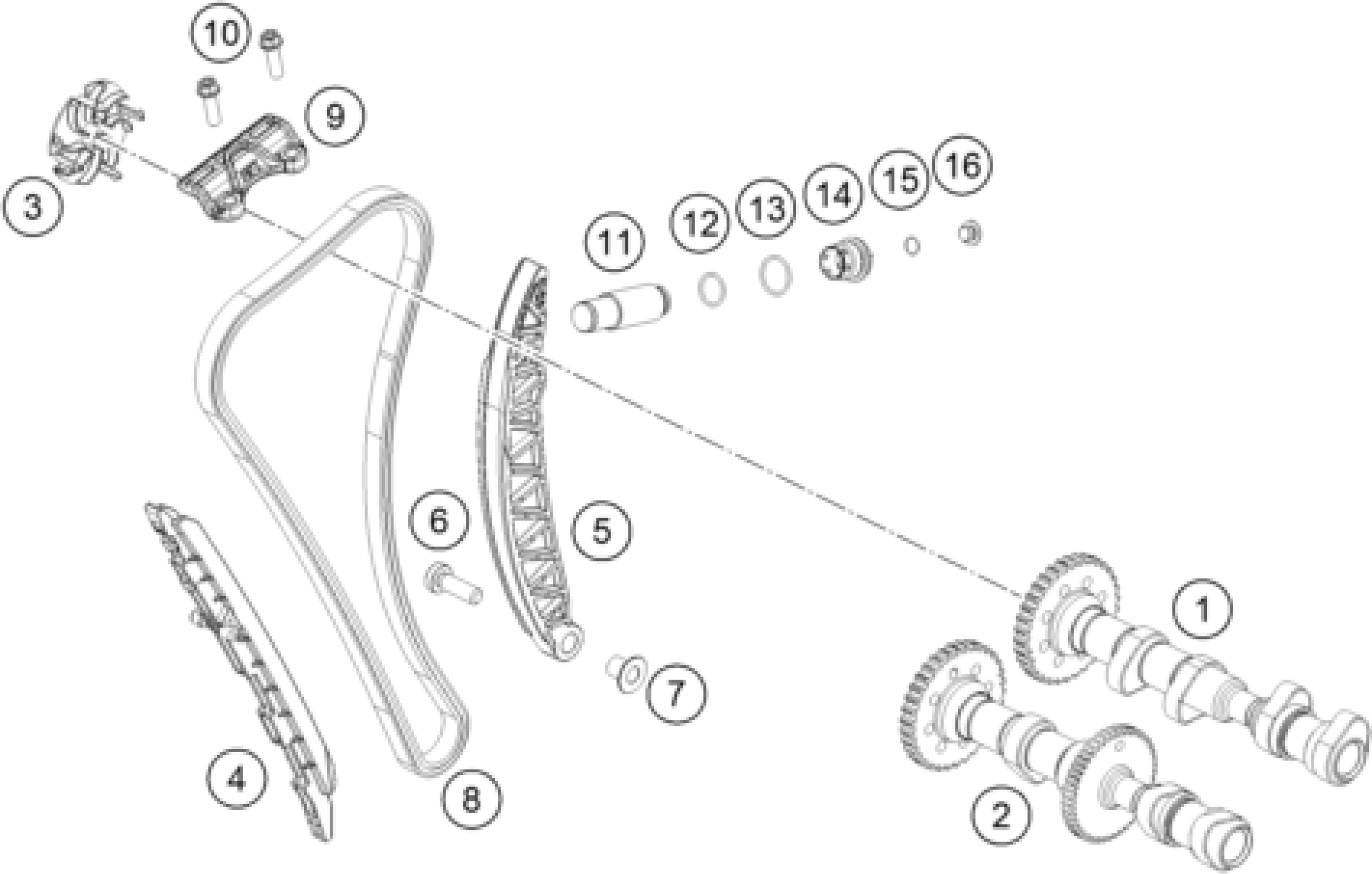

KTM 790 ADVENTURE, black 2023 TIMING DRIVE Diagram

Intake camshaft

Exhaust camshaft

Venting centrifuge

slide bars

Tension Rail

ISA collar screw M8x25 ISA45

Collar bush d8xD10x13.2

Timing chain

slide bars, top cpl.

HH collar screw M6x20 TX30

chain tension adjuster

o-ring 18.00x2.00 NBR70

o-ring 22.00x2.00 NBR70

chain tension adjuster plug

o-ring 10.00x1.00 NBR70

SCREW PLUG
