Description

Price

1

seat passenger

C64607047000C1

$82.83

2

Seat rider

C61007040000C1

$98.17

4

Fuel tank

C63507613000CB

$1,948.16

5

Fuel tank fairing

C63507058000

$3.92

6

Cap head screw, ISO 14579, M5x

C0912050083

$1.49

7

AH SCREW DIN0912-M 5X30

C0009120503000

$1.49

8

Fuel tank filler neck

A61007008050

$13.46

9

Fuel lever sensor

63507080200

$140.15

10

AH SCREW DIN0912-M 5X16

C0009120501600

$1.49

11

FUEL COCK CPL.

C58507003200

$17.85

12

HH collar screw M6x12 TX30

C0000250601200

$1.49

13

CLAMP YDNAC 10128 12MM

58031005000

$3.08

14

Interconnection hose

C63507016000

$41.13

15

Tank overflow hose 718mm

C63515027100

$16.35

16

collar bushing, front tank hol

C61007065000

$1.49

18

collar bushing, bearing, outsi

C61007060000

$16.07

19

SHCS DIN 912 M8x40

N0009120804000

$2.05

20

Seal, tank insert

C21007008251

$10.37

21

Gasket fuel level sensor

C90707080090

$3.08

23

Motorex Fuel Stabilizer 125ml

00001000015

$19.81

24

Cover fuel pump

C64607087010

$10.65

25

Seat screw M6x11.5 ISA30

N0900000601200

$4.11

26

Isolation pad

C90707040041

$1.49

27

COUNTERSUNK SCREW ISA25 M5X12

C0000190501200

$1.49

28

Oval head screw M5x14 TX25

58605083014

$3.08

29

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

30

Washer DIN9021-A 6.4

0021060003

$2.05

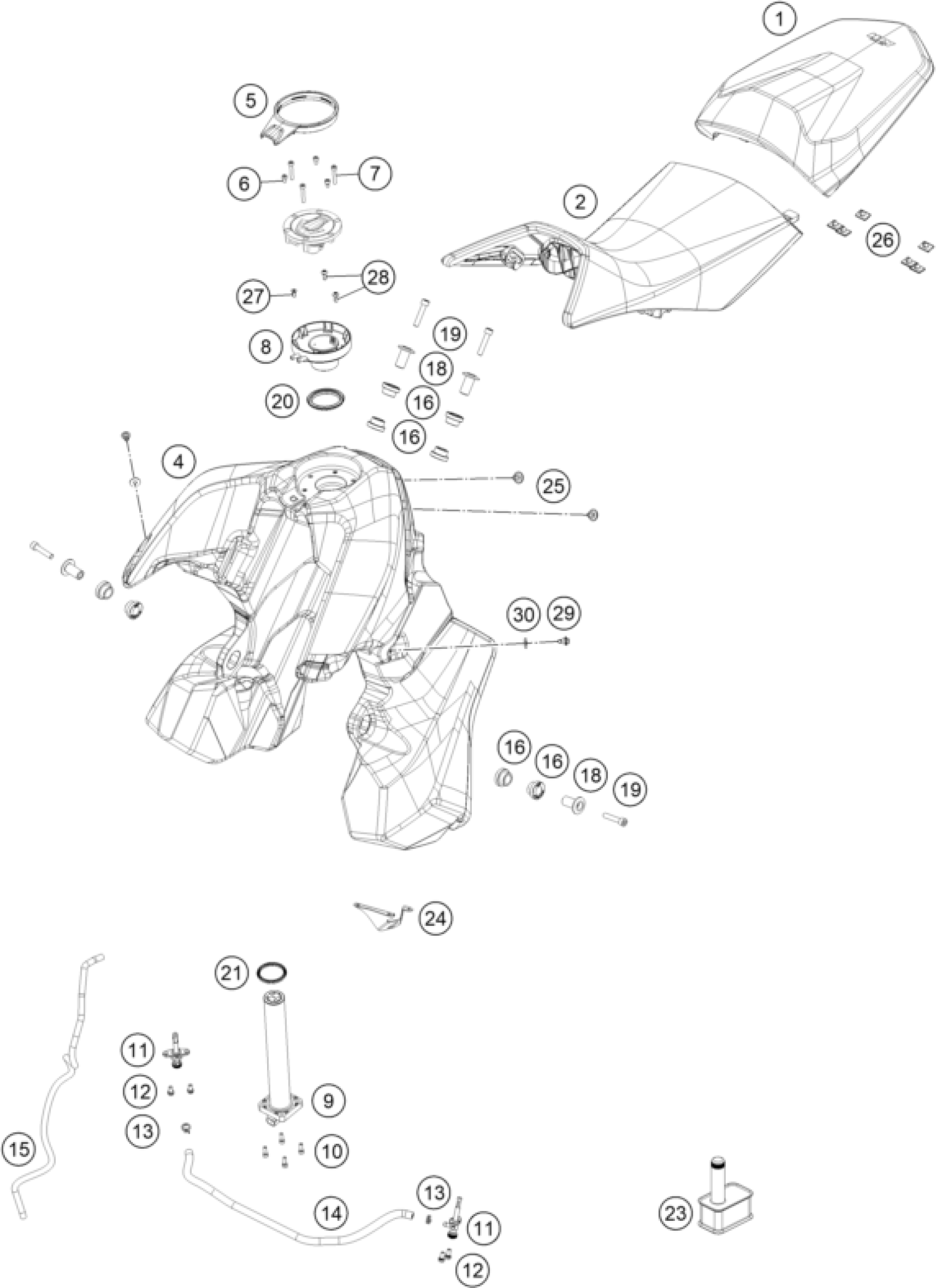

KTM 790 ADVENTURE, black 2023 TANK, SEAT Diagram

seat passenger

Seat rider

Fuel tank

Fuel tank fairing

Cap head screw, ISO 14579, M5x

AH SCREW DIN0912-M 5X30

Fuel tank filler neck

Fuel lever sensor

AH SCREW DIN0912-M 5X16

FUEL COCK CPL.

HH collar screw M6x12 TX30

CLAMP YDNAC 10128 12MM

Interconnection hose

Tank overflow hose 718mm

collar bushing, front tank hol

collar bushing, bearing, outsi

SHCS DIN 912 M8x40

Seal, tank insert

Gasket fuel level sensor

Motorex Fuel Stabilizer 125ml

Cover fuel pump

Seat screw M6x11.5 ISA30

Isolation pad

COUNTERSUNK SCREW ISA25 M5X12

Oval head screw M5x14 TX25

SPECIAL SCREW M6X12,5 WS=8

Washer DIN9021-A 6.4
