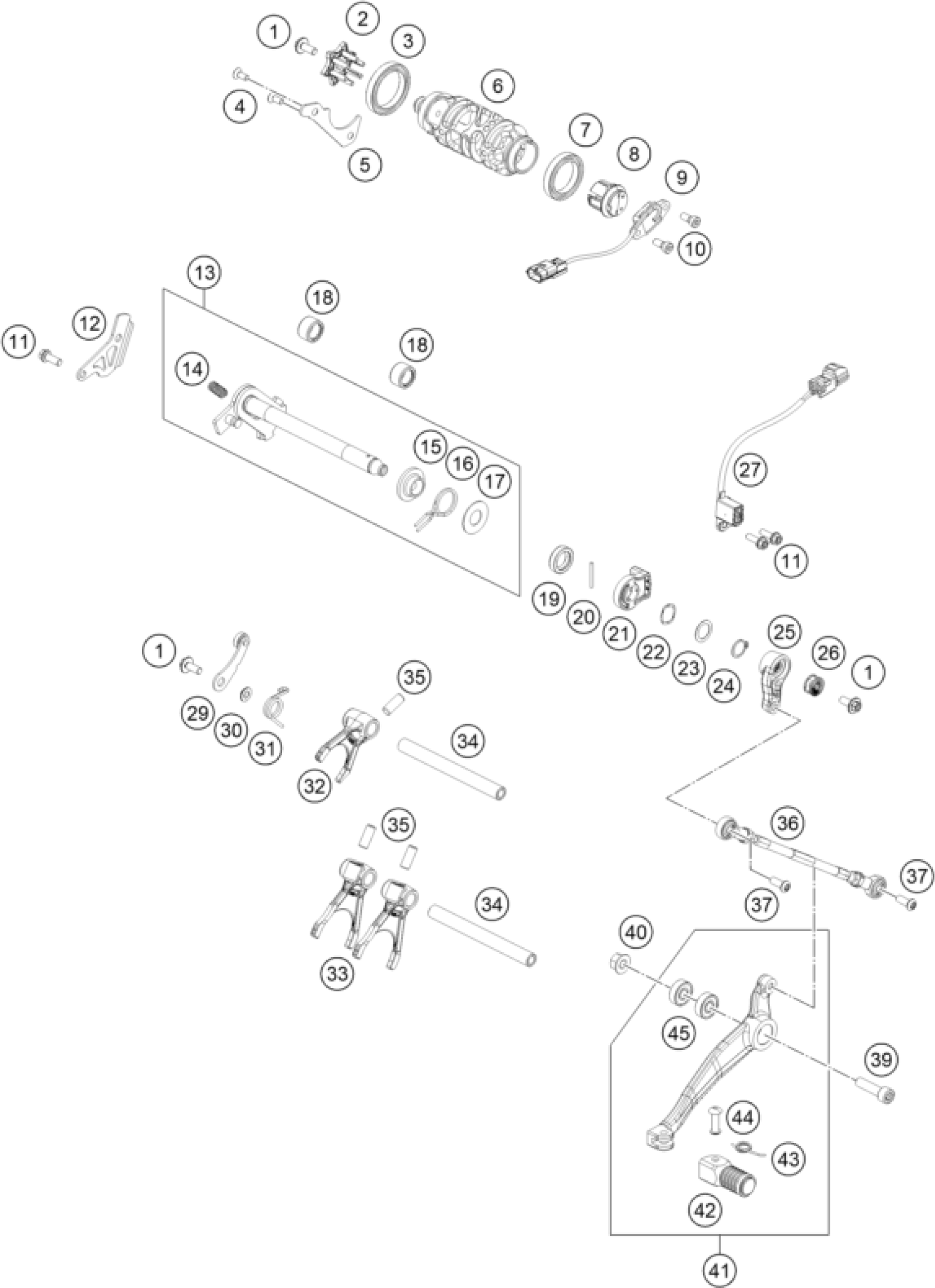

KTM 790 ADVENTURE, black 2023 SHIFTING MECHANISM Diagram

HH collar screw M6x15 TX30

0024060156S

$2.05

Shift star

C90034015000

$19.63

deep groove ball bearing 6807

C0625068070

$16.73

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

Bearing retaining bracket

C90034011200

$2.05

shift drum 6G

63534012001

$95.55

deep groove ball bearing 6806

C0625068060

$14.86

magnet holder cpl.

C90034012020

$19.16

Gear position sensor

C90011023100

$78.72

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

bearing retaining plate

C90033022000

$2.05

shift shaft cpl.

63534005033

$66.75

TENSIONING SPRING 0,8MM

56534013100

$1.49

SPRING GUIDE

54634020000

$6.44

RETURNSPRING 2MM

61234014000

$6.44

STOP DISK 14X30X1

54634050000

$2.05

needle sleeve HK 1412 14x20x12

C90032095000

$3.08

radial shaft seal 14x24x6 B

C0760142460

$2.05

dowel pin DIN 7 A1 2.5m6x24

C0007025241

$1.49

magnet holder

C90034050000

$22.52

wave spring Smalley SSB-0075-S

63534050010

$7.00

Thrust washer DIN 988 14x20x0.

C0988142005

$1.49

retaining ring DIN 471 14x1

C0471140100

$1.49

Pull Rod

6413403000033

$42.63

PAIR NORDLOCK WASHER M6

50233041500

$4.11

Shift assistant sensor

C90034051100

$94.99

detent arm cpl.

C63534024000

$11.30

step washer

C63534052000

$1.49

Detent arm spring

C90034023000

$1.49

shift fork 5-6 gear

63534002000

$14.67

Shift fork

63534001100

$17.48

shift fork shaft

C75034019100

$12.52

needle roller D8x20

C0402080200

$1.49

Shift rod cmpl.

C63534036044

$40.57

Oval head screw ISR M6x20-A2-7

C0073800602000S

$1.49

screw ISO 14579-M8x30-10.9-MK

C0145790803000S

$1.96

Self locking nut M8 10.9

54310086200

$3.08

Gear shift lever preassembled

C63534031044C1

$65.72

Pedal tread with pedal rubber

C58334131044

$18.69

shift lever spring

C0510001000200

$1.49

rivet round-dia. 6 x l 24xbrig

C0930000602000

$1.49

Bearing 608 2RS

C0410000800700

$3.08
