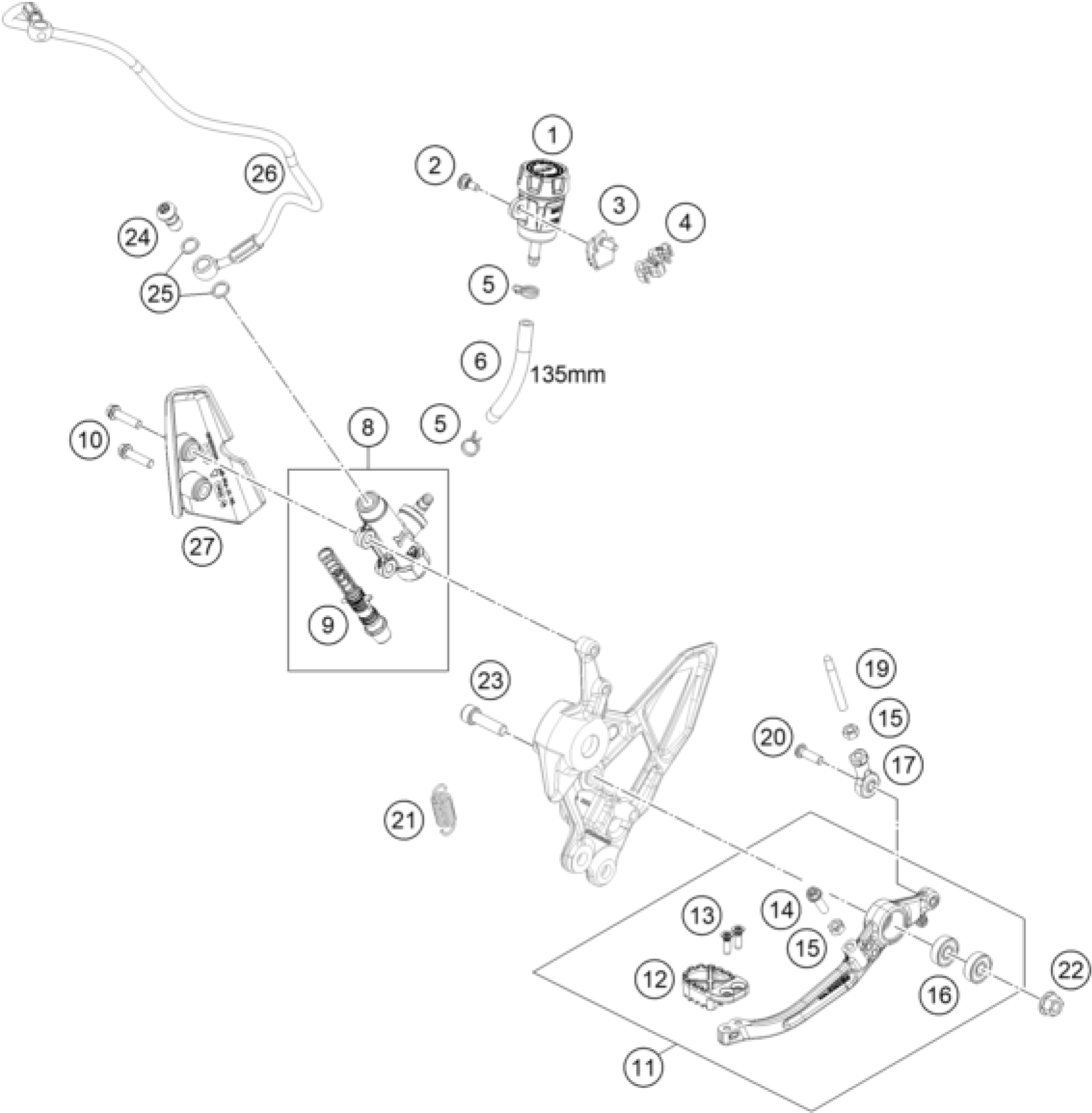

KTM 790 ADVENTURE, black 2023 REAR BRAKE CONTROL Diagram

#

Description
Price

1

Reservoir assembly

64113069000

$35.33

2

Screw for expansion tank

69013099050

$4.11

3

Brake line holder

C90713126000

$11.87

4

Bracket ABS line d7.5

C90742046000

$1.49

5

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

6

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

8

Foot master cylinder cpl. blac

6411306000030

$116.96

9

Piston assembly

64113061000

$59.36

10

Screw M6x25 10.9

C0000250602500S

$1.49

11

Footbrake lever preassembled

C63513050033C1

$104.52

12

Foot peg, brake pedal

63513151000

$37.86

13

Countersunk screw ISO14581-M5x

C0145810501600

$1.49

14

HH collar screw M6x20 TX30

C0000250602000

$1.49

15

hexagon nut DIN 934 M6

C0009340600502

$1.49

16

Bearing 608 2RS

C0410000800700

$3.08

17

rod end M6 silver

C90703069200

$10.18

19

rear brake push bar

C90703068000

$3.08

20

Oval head screw ISR M6x20-A2-7

C0073800602000S

$1.49

21

Return spring for brake lever

C0520001100200

$1.49

22

Self locking nut M8 10.9

54310086200

$3.08

23

screw ISO 14579-M8x30-10.9-MK

014579080301S

$2.05

24

banjo bolt M10x1x19.5

C62113020100

$9.53

25

sealing ring DIN 7603 10x14x1

0603100141

$2.05

26

Rear brake line

A64642002000

$50.39

27

Rear master cylinder guard

C63503039151

$15.42
