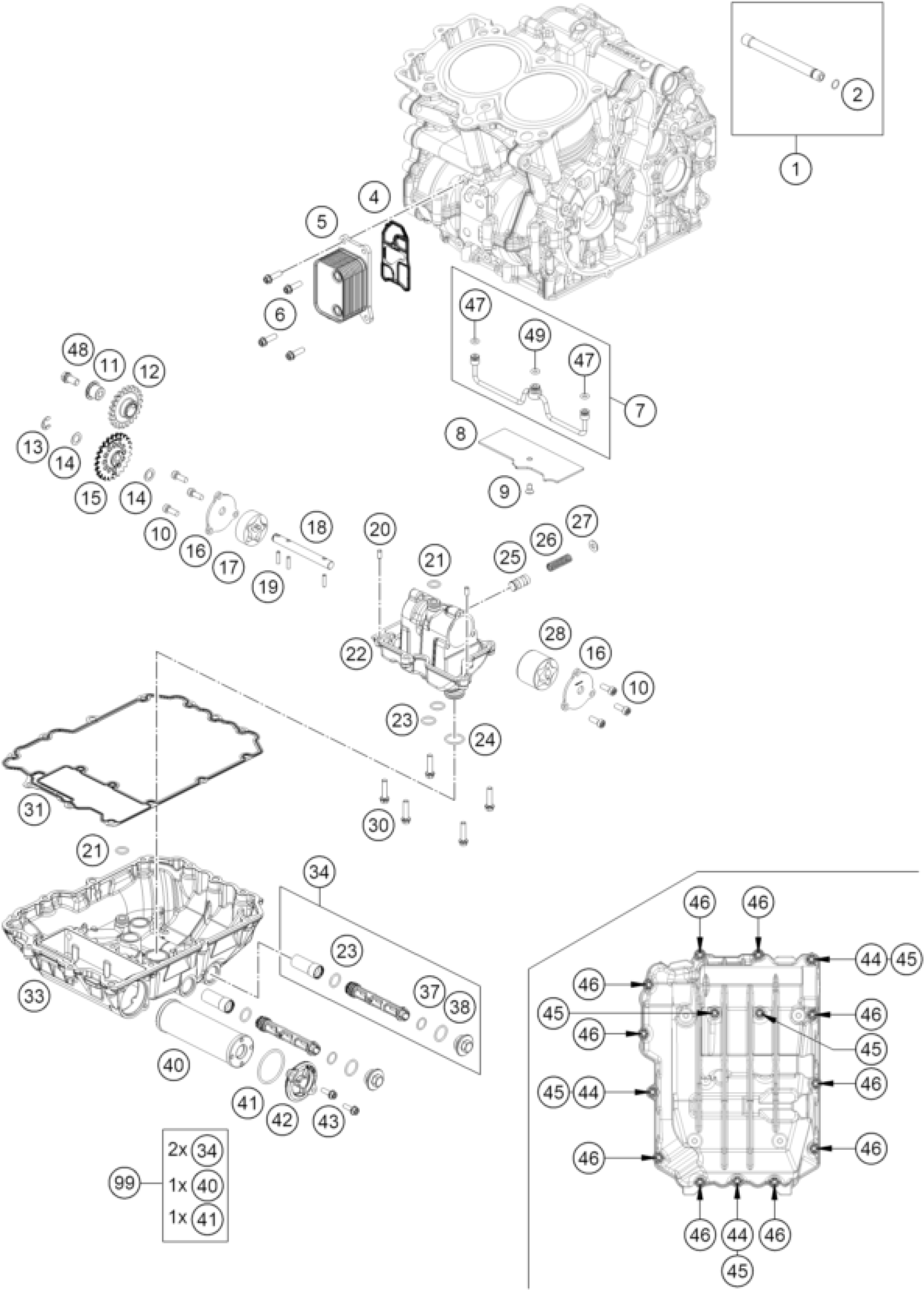

KTM 790 ADVENTURE, black 2023 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Gearbox lubrication pipe cmpl.

63530065000

$28.88

2

o-ring 10.00x1.00 NBR70

C0770010010

$1.49

4

Gasket with support sheet

C90038051000

$12.52

5

oil-water-heater exchanger

C90038050000

$56.65

6

HH collar screw M6x20 TX30

0025060206S

$2.05

7

oil line

C90038035000

$19.44

8

pressure plate

C63530086010

$7.75

9

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

10

Cylinder head bolt ISO 14580 M

C014580060126S

$1.49

11

Bearing bolt

C63638003000

$8.69

12

oil pump idler wheel 22 teeth

C90038001022

$24.96

13

Lock washer DIN 6799 - RS 8

C0799080000

$1.49

14

Washer 10x16x0.5

C90038007010

$1.49

15

Oil pump gear 24T

C90038001224

$10.37

16

Oil pump cover

C90038008050

$8.50

17

Eaton pump set 14 mm

C90038009014

$18.60

18

Oil pump shaft

C90038002000

$13.92

19

Needle roller 4x15.8 G2 NRB

C0402041580

$1.49

20

needle roller DIN 5402 5x9.8

C0402050980

$1.49

21

O-ring 12x2

C0770120020

$1.49

22

Oil pump housing

C90038012000

$65.07

23

O-ring 14x2

C0770140200

$1.49

24

O-ring 20x2 VITON

C0770020020

$1.49

25

Control piston

C90038128000

$8.50

26

Oil compression spring

C90038026000

$5.23

27

Shim

C90037073000

$2.05

28

Eaton pump set 30 mm

C90038010000

$35.05

30

HH collar screw M6x25 TX30

0025060256

$3.08

31

Oil sump gasket

C90030086100

$13.92

33

Oil pan

C9003008500024

$162.21

34

Oil screen cmpl.

61238021200

$26.17

37

O-RING 12,5X1,5 NBR

0770125015

$2.05

38

O-RING 17,00X2,00

0770170200

$2.05

40

Oil filter

C90038015200

$20.66

41

O-RING 39,34X2,62

C07700390261

$2.05

42

Oil filter cover

C90038041200

$14.86

43

HH collar screw M5x16 TX30

0025050166

$2.05

44

Dowel

C90030024000

$3.08

45

HH collar screw M6x35 TX30

0025060356

$3.08

46

HH collar screw M6x30 TX30

0025060306

$3.08

47

O-ring 6x2,5

C0770060025

$1.49

48

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

49

O-ring 7x2,5

C0770070025

$1.49

99

Oil filter service kit

C00050000068

Unavailable
