Description

Price

1

rotor cpl.

C90039105000

$336.40

2

special screw M12x1.5 WS15

C60339003000

$22.99

3

HH collar screw M6x30 TX30

0025060306S

$3.08

4

Stator

C90039004000

$87.04

5

generator line bracket

C60039040020

$1.49

6

Dowel

C90030024000

$3.08

7

ignition cover gasket

C90030040100

$11.02

8

Generator Cover KTMR2R

C9003010200041

Unavailable

8

Generator Cover

C9003020200041

$82.08

9

o-ring 24.00x2.50 Viton

C07700240251

$2.05

10

threaded plug M24x1.5 PA 6.6

C90030094000

$2.05

11

HH collar screw M6x35 TX30

0025060356

$3.08

12

HH collar screw M6x30 TX30

0025060306

$3.08

13

pulse generator KOKUSAN 4K3-A/

C90039034000

$17.66

14

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

15

HH collar screw M6x16 TX30

0025060166

$3.08

16

Stick coil

C90039006100

$78.34

17

spark plug

77839093000

$22.71

18

EJOT PT screw K50x14

0081050141

$1.49

19

retaining bracket SLS cpl.

C90011038000

$4.11

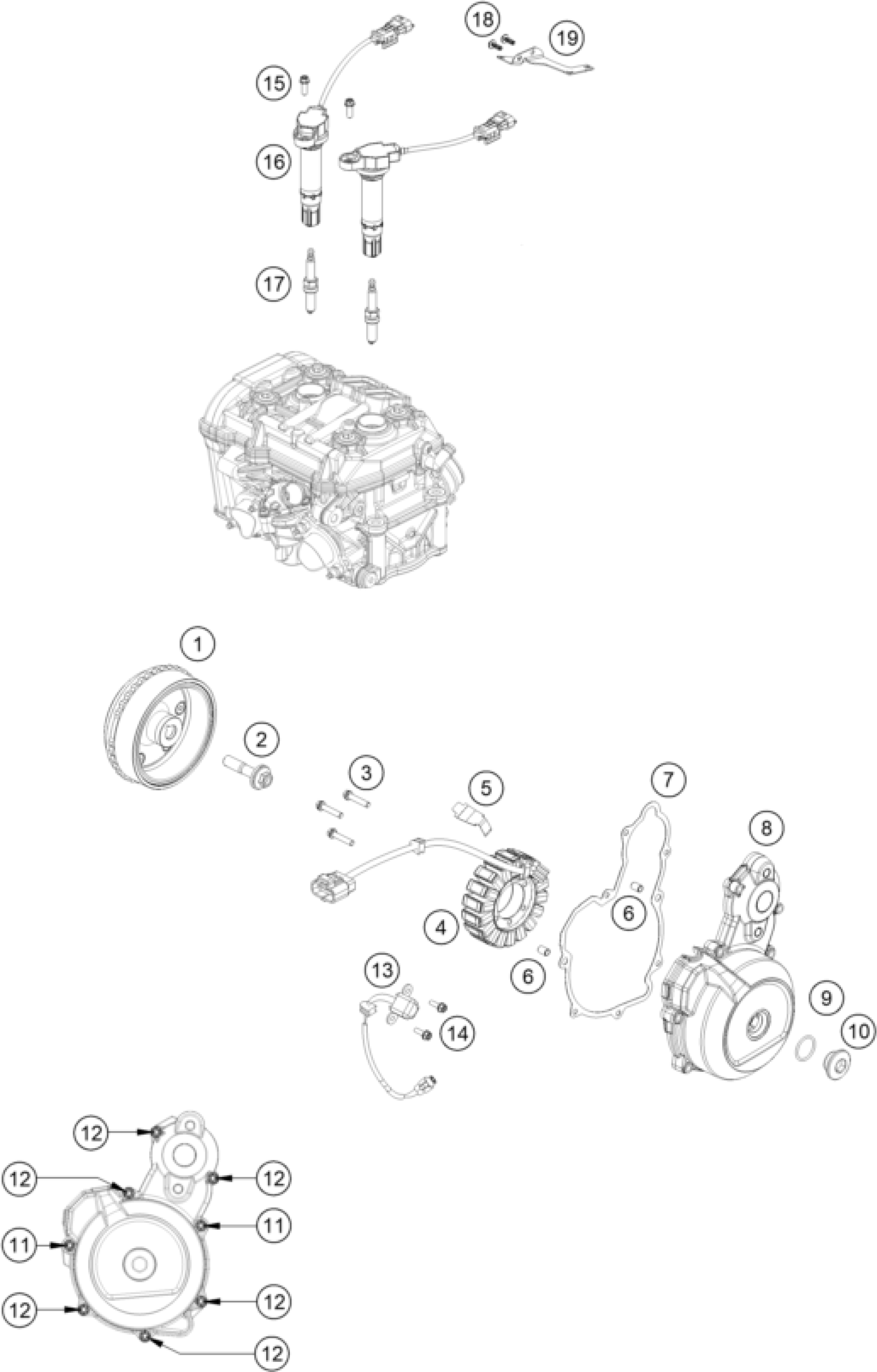

KTM 790 ADVENTURE, black 2023 IGNITION SYSTEM Diagram

rotor cpl.

special screw M12x1.5 WS15

HH collar screw M6x30 TX30

Stator

generator line bracket

Dowel

ignition cover gasket

Generator Cover KTMR2R

Generator Cover

o-ring 24.00x2.50 Viton

threaded plug M24x1.5 PA 6.6

HH collar screw M6x35 TX30

HH collar screw M6x30 TX30

pulse generator KOKUSAN 4K3-A/

HH Collar Screw M5x16 ISA30 SS

HH collar screw M6x16 TX30

Stick coil

spark plug

EJOT PT screw K50x14

retaining bracket SLS cpl.
