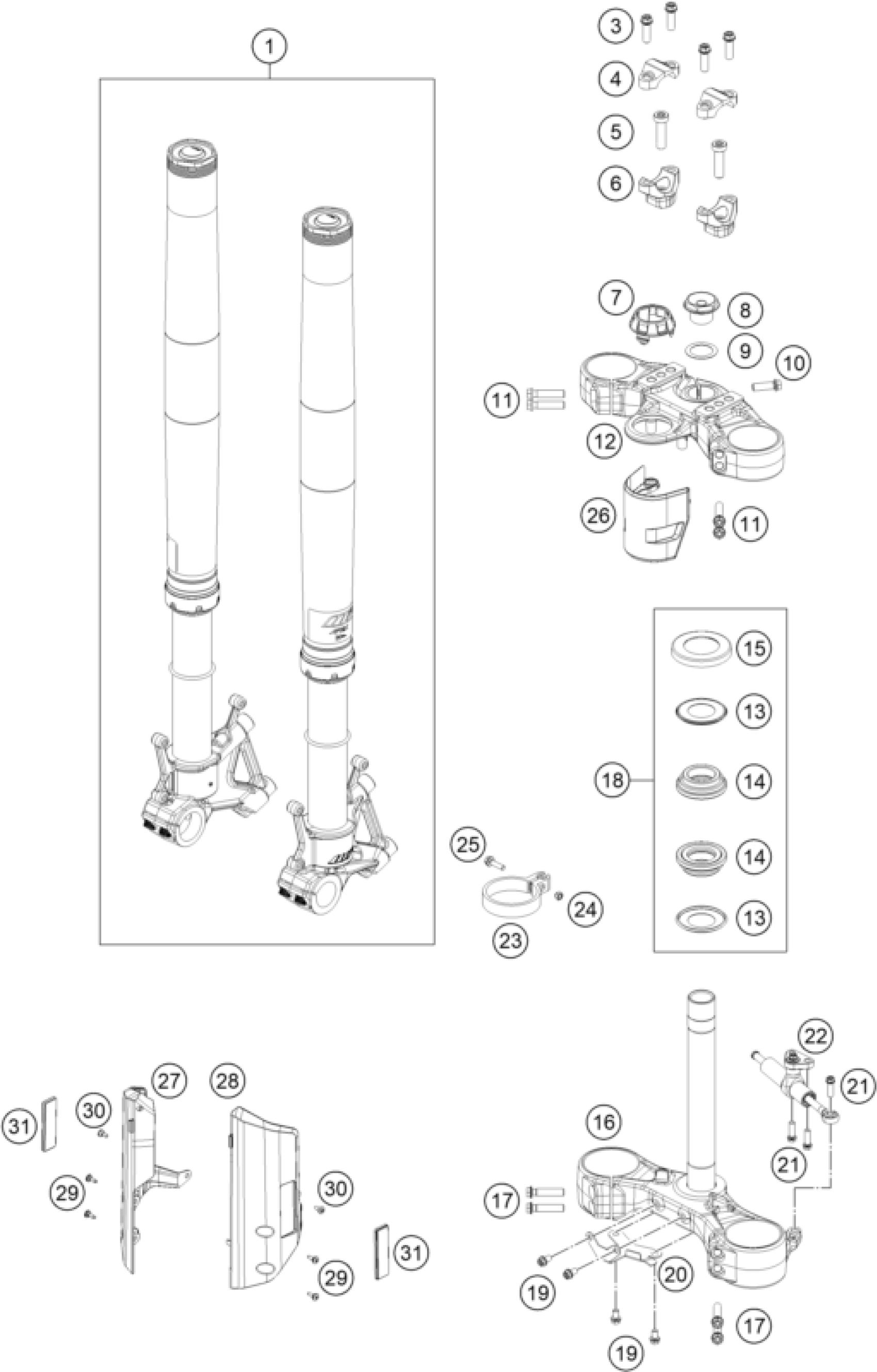

KTM 790 ADVENTURE, black 2023 FRONT FORK, TRIPLE CLAMP Diagram

Fork KTM 790 Adventure S 19

05586S2901

$2,301.59

HH collar screw M8x25

C0000250802500

$1.49

HANDLEBAR CLAMP 28MM

C90701038000C1

$20.37

AH-COLLAR SCREW M10X35 ISA45

C0000351003501S

$1.67

HANDLEBAR SUPPORT D=28 H=32 BL

C90701039032C1

$27.20

Ignition lock cover

C63501045010

$1.49

Steering head screw M20x1,5 WS

C54801036000C1

$18.22

Shim ring

C63601042000

$1.49

Hex collar screw M8x25 SW10 SS

N0000150802500S

$3.08

HH collar screw M8x30

C0000250803000

$1.49

Triple clamp top

C63701034030C1

$187.27

Stearing head gasket

C90701084000

$3.08

steering head bearing cpl.

C90701080000

$17.10

PROT. RING STEER. HEAD BEARING

C90701086000

$1.49

Bottom triple clamp cmpl.

C63701032030C1

$271.33

HH collar screw M8x35 TX40

C0000250803500

$1.49

Stearing head rep. Kit

C90701081010

Unavailable

HH COLLAR SCREW M8X25 TX40

C0000250802500S

$2.05

Steering damper790 Adventure c

16181S55E

$260.11

SPEEDOMETER CABLE GUIDE MARZO.

C54601099000

$1.49

Self-locking nut DIN 985 M5

N0009850500500

$2.05

HH collar screw M5x20 TX30

C0000250502000

$1.49

Ignition lock cover

C63511066010

$3.64

fender carrier right

C63508026000C1

$20.66

fender carrier left

C63508025000C1

$20.66

Special screw M5x17

C0900000501700

$1.49

screrw M5x17 ISA30

C0900000501701

$1.49

SIDE REFLECTOR YELLOW ''CEV''

C90712080000

$3.08

Brake line retaining bracket

C63501072000

$10.37

HH collar screw M6x10 TX30

C0000250601000

$1.49
