Description

Price

1

silencer

C64605083000

$882.07

2

BUSHING 8,5X11X29

C90705169000

$8.59

3

DAMPING RUBBER

C90705068000

$9.34

5

conical seat Alu

C90705069000

$5.70

6

COUN.-SUNK SCREW M8X50 ISA10.9

C0000190805000

$2.05

7

heat protection black cpl.

C63505111000C1

$56.00

8

Damping element silicon

C90705011011

$1.49

9

torx screw M5x10 black

C0900000501000

$1.49

10

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

11

Manifold gasket

C90705005005

$5.51

12

Exhaust clamp tube 50 mm

C63605058100

$12.43

13

Premuffler

C64605050000

$341.27

14

HH COLLAR SCREW M8X35 TX40

C0000250803500S

$2.05

15

Collar bushing 8.5x12x23.5x10

C90705050065

$3.08

16

damp. component silicone grey

C90705067000

$5.88

17

Header pipe

C64605007000

$315.65

18

self-locking nut M8 Cu

51010086100

$3.08

20

Exhaust gasket

C90705005000

$2.05

21

stud screw 835 M8x25 - 10.9

C63505015000

$2.33

22

Bracket oxygen sensor socket c

C90742040020

$6.91

23

EJOT PT screw K50x14

0081050141

$1.49

24

O2 Sensor LSF 4

63541090000

$138.46

25

O2 Sensor LSF 4

63541190000

$138.46

26

RANGE CHANGE METAL NUT M8

54603048000

$4.11

27

Collar screw M8x40 ISA40 SS

C0000250804000S

$2.05

28

Collar bushing 8.5x12x23.5x11.

C0800000901201

Unavailable

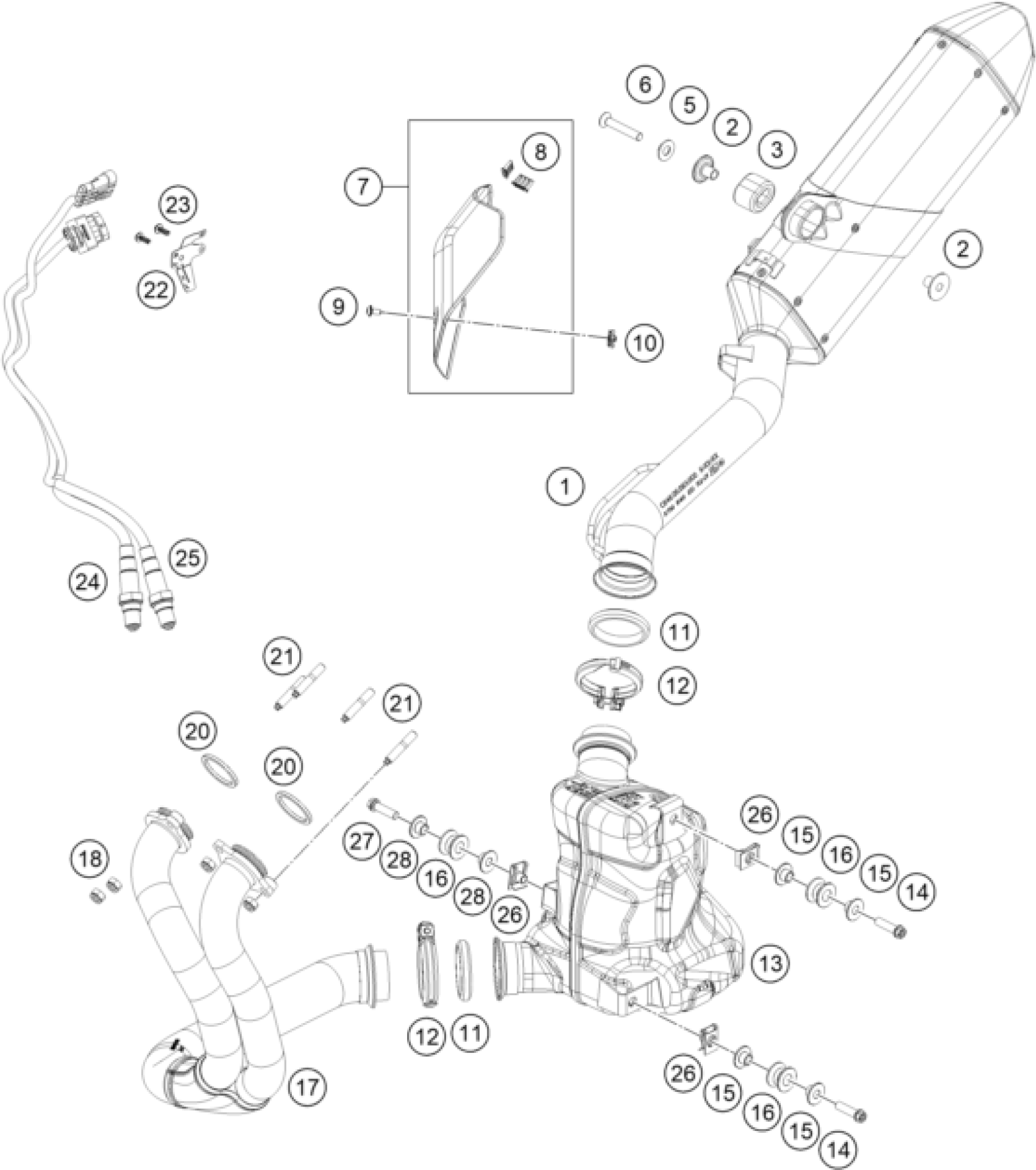

KTM 790 ADVENTURE, black 2023 EXHAUST SYSTEM Diagram

silencer

BUSHING 8,5X11X29

DAMPING RUBBER

conical seat Alu

COUN.-SUNK SCREW M8X50 ISA10.9

heat protection black cpl.

Damping element silicon

torx screw M5x10 black

RANGE CHANGE METAL NUT M5 INOX

Manifold gasket

Exhaust clamp tube 50 mm

Premuffler

HH COLLAR SCREW M8X35 TX40

Collar bushing 8.5x12x23.5x10

damp. component silicone grey

Header pipe

self-locking nut M8 Cu

Exhaust gasket

stud screw 835 M8x25 - 10.9

Bracket oxygen sensor socket c

EJOT PT screw K50x14

O2 Sensor LSF 4

O2 Sensor LSF 4

RANGE CHANGE METAL NUT M8

Collar screw M8x40 ISA40 SS

Collar bushing 8.5x12x23.5x11.
