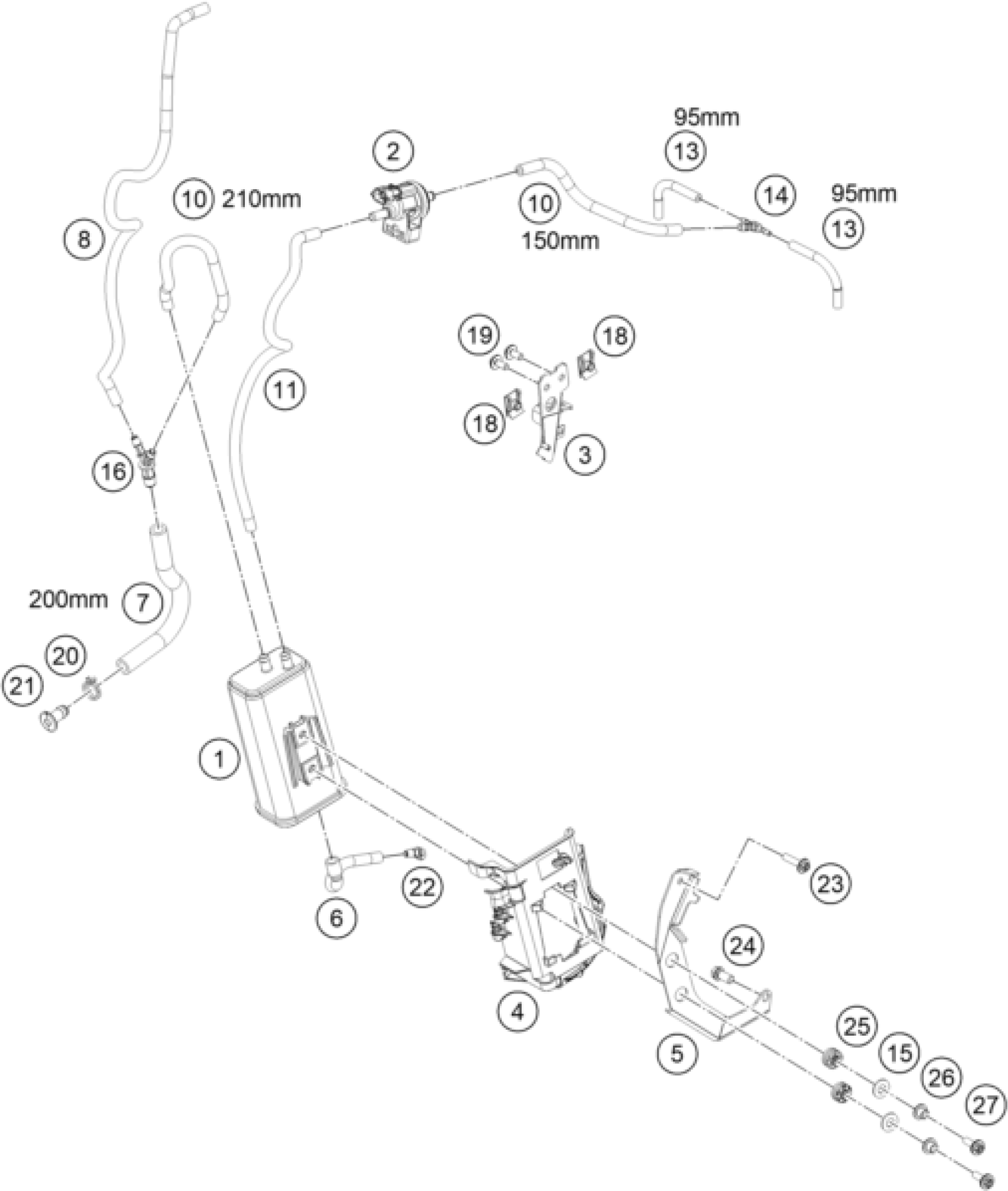

KTM 790 ADVENTURE, black 2023 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

$66.66

2

EVAP valve

76015015000

$254.78

3

Retaining bracket ACF valve cp

C63515026015C1

$20.84

4

Hose clip ACF

C63515003010

$9.53

5

Retaining bracket ACF

C63515002010C1

$18.13

6

Hose ACF venting

C61015021000

$3.82

7

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

8

hose tank vent 688mm

C63515024100

$14.95

10

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

11

Hose ACF purge valve

C63515028000

$9.81

13

HOSE EPA D=4/8 L=2000MM

78015021000

$49.92

14

Tube conector

C90015126000

$4.11

15

shim

50337073000

$2.05

16

Y-connector YS 6-10-6

C0610001100400

$3.92

18

clip nut M6

54603048100

$4.11

19

HH Collar screw M6x13 TX30

C0000240601300

$1.49

20

YDNAC-clip 10173 (16mm)

C0310000801600

$1.49

21

ACF plug

C90715026000

$3.08

22

Angle piece for overrun

C63503098030

$1.86

23

HH COLLAR SCREW M6X25 TX30

C0000240602500

$1.49

24

HH collar screw M6x16 TX30

C0000250601600

$1.49

25

DUMPER 40 SHORE

C62142041100

$1.49

26

collar bushing 6.1x9.2x15x8.5x

C69014015000

$9.34

27

special screw M6x18-8.8 ISA30

C0900000601800S

$1.49
