Description

Price

1

Skid plate

C6100309000001

$458.80

2

torx screw M5x10

C0900000501001

$1.49

3

engine protection cover

C63503991090

$77.22

4

clip nut M5

69008021080

$3.08

6

Lower Alu Skidplate Support

C63503090016

$20.28

7

seat rubber 10mm

C75007046010

$1.49

8

Front skid plate linkage

C63503090050C1

$85.45

9

Collar screw M8x40 ISA40 SS

C0000250804000S

$2.05

10

flange screw M6x22-8.8 ISA30

C69014117000

$1.49

11

Damper ABS modulator

C90742041000

$1.49

12

Collar bushing 6,5x9x18x8.5

61342041100

$1.49

13

RANGE CHANGE METAL NUT M6 INOX

54603048300

$5.23

14

Tank protector left

C61007025010

$20.09

15

Tank protector right

C61007025020

$20.09

16

Special screw M6x12x3

C90708000012

$1.49

17

TANK RUBBER

C60307020000

$13.36

18

HH collar screw M6x8 TX30

N0000250600800

$2.05

19

Silent block 20x12 M6x10/M6x8

C0660002001200

$7.56

5

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

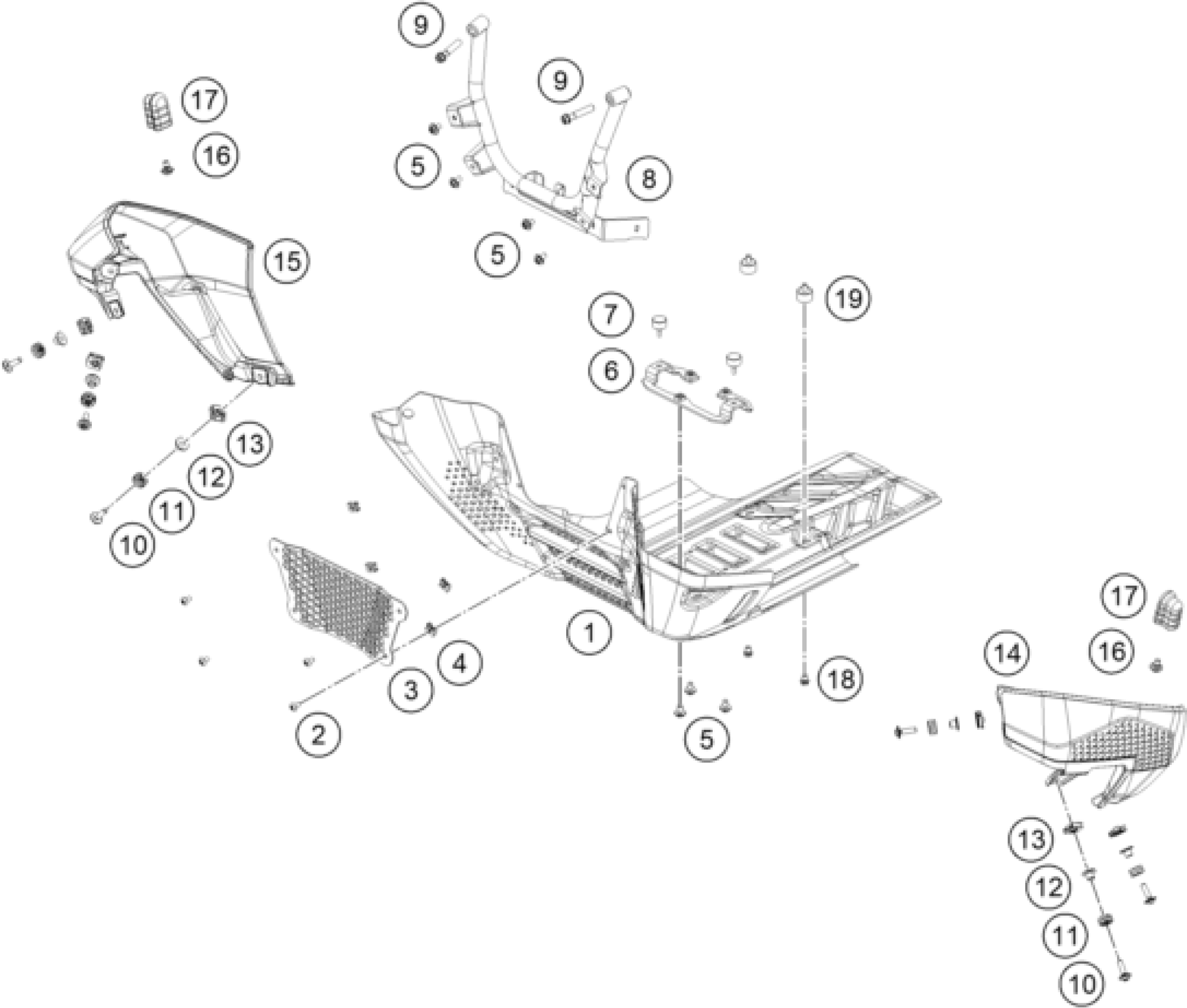

KTM 790 ADVENTURE, black 2023 ENGINE GUARD Diagram

Skid plate

torx screw M5x10

engine protection cover

clip nut M5

Lower Alu Skidplate Support

seat rubber 10mm

Front skid plate linkage

Collar screw M8x40 ISA40 SS

flange screw M6x22-8.8 ISA30

Damper ABS modulator

Collar bushing 6,5x9x18x8.5

RANGE CHANGE METAL NUT M6 INOX

Tank protector left

Tank protector right

Special screw M6x12x3

TANK RUBBER

HH collar screw M6x8 TX30

Silent block 20x12 M6x10/M6x8

HH COLLAR SCREW M6X10 TX30
