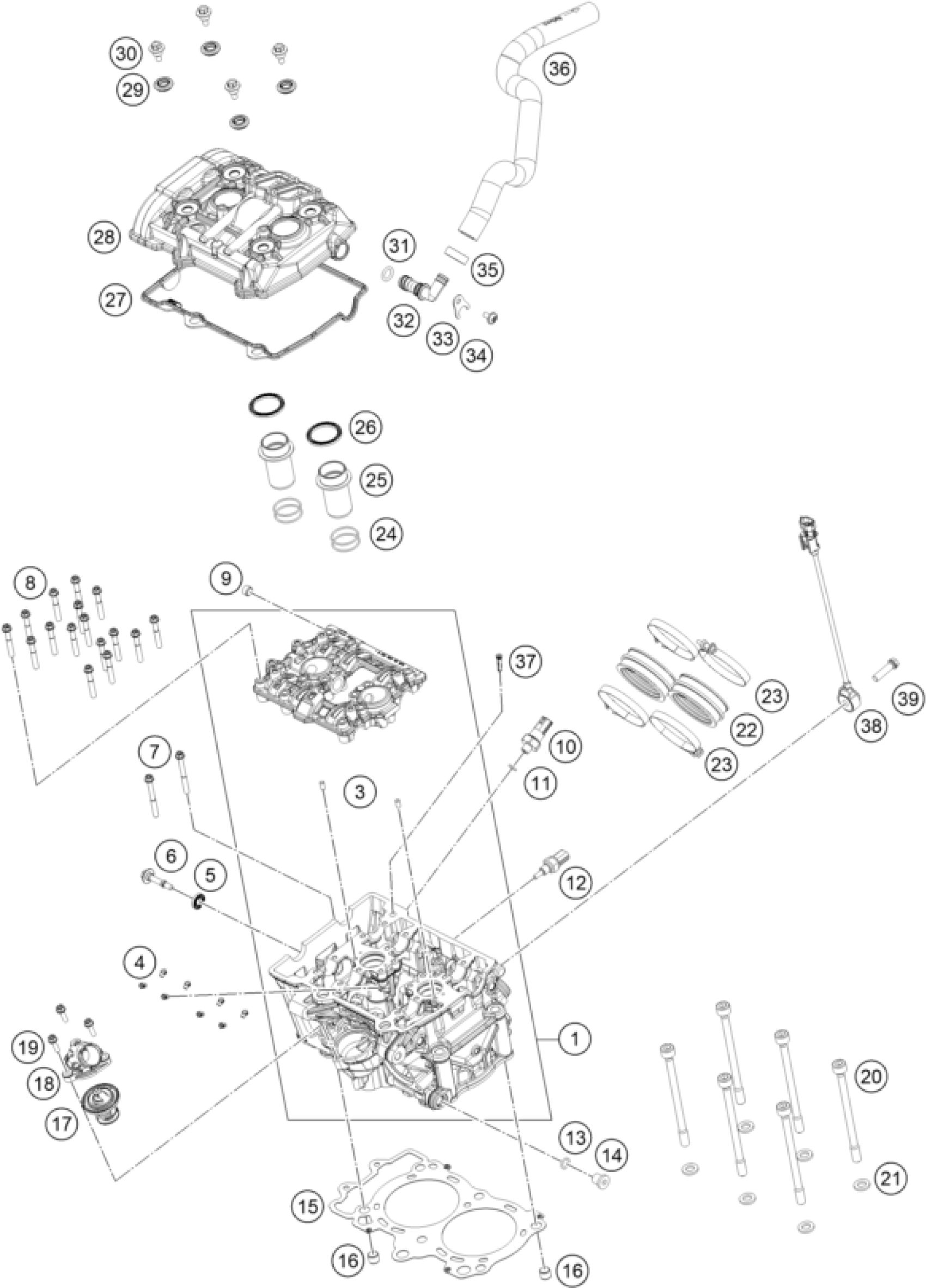

KTM 790 ADVENTURE, black 2023 CYLINDER HEAD Diagram

#

Description
Price

1

cylinder head cpl.

C9003622010024

$492.18

3

needle roller DIN 5402 5x9.8

C0402050980

$1.49

4

oil jet 50 M5

C90030063050

$3.08

5

Decoupling element

C90036052010

$1.49

6

valve mechanism cover screw

C90036055000

$3.54

7

HH collar screw M6x55 TX30

0025060556

$3.08

8

HH collar screw M6x40 ISA30

0025060405

$1.49

9

pipe plug DIN 906 M10x1

0906100100

$4.11

10

oil pressure switch ''BITRON''

61238091100

$33.46

11

O-RING 9x1,5 V80 SH

C07700900151

$1.49

12

water temperature sensor

C90035047000

$21.31

13

o-ring 10.00x2.00 silicone

C0770100020

$1.49

14

screw M12x1,5

C0908120153

$1.49

15

Cylinder head gasket

C90030036200

$17.98

16

dowl sleeve 10.2x12.5x10

C58530014100

$1.96

17

Thermostat BING 205-66

C90035117000

$28.04

18

Water connection

C90035019100

$16.45

19

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

20

cylinder head bolt M10x1.25 L=

C78630044000

$11.49

21

washer 19x10.5x2.5

C90036089010

$1.49

22

Intake sleeve

C90036144000

$28.23

23

hose clamp Gemi 66

61236048000

$9.53

24

O-RING 29,87X1,78 VITON

C0770298178

$1.49

25

spark plug shaft insert

C63536075000

$21.03

26

spark plug shaft gasket

C90036075050

$5.23

27

Valve cover seal

C90036053000

$13.55

28

valve cover

C9003605200033

$17.01

29

RUBBER GASKET FOR SCREW

C90036054160

$3.08

30

Valve cover screw

C90036054150

$2.98

31

O-RING 12,00X3,0 VITON 75

C0770012030

$1.49

32

bleeder connector

C90036081000

$2.05

33

connecting angle retaining pla

C90036082150

$1.49

34

Hex collar screw M6x12 TX30

C0025060126

$1.49

35

variable one-year clamp 19.8mm

C00050198706

$2.05

36

enigne breather hose

C64630087000

$25.89

37

Oil screen

C90038016000

$6.44

38

Knock control sensor

63641038000

$72.36

39

HH collar screw M8x30

0025080306

$3.08
