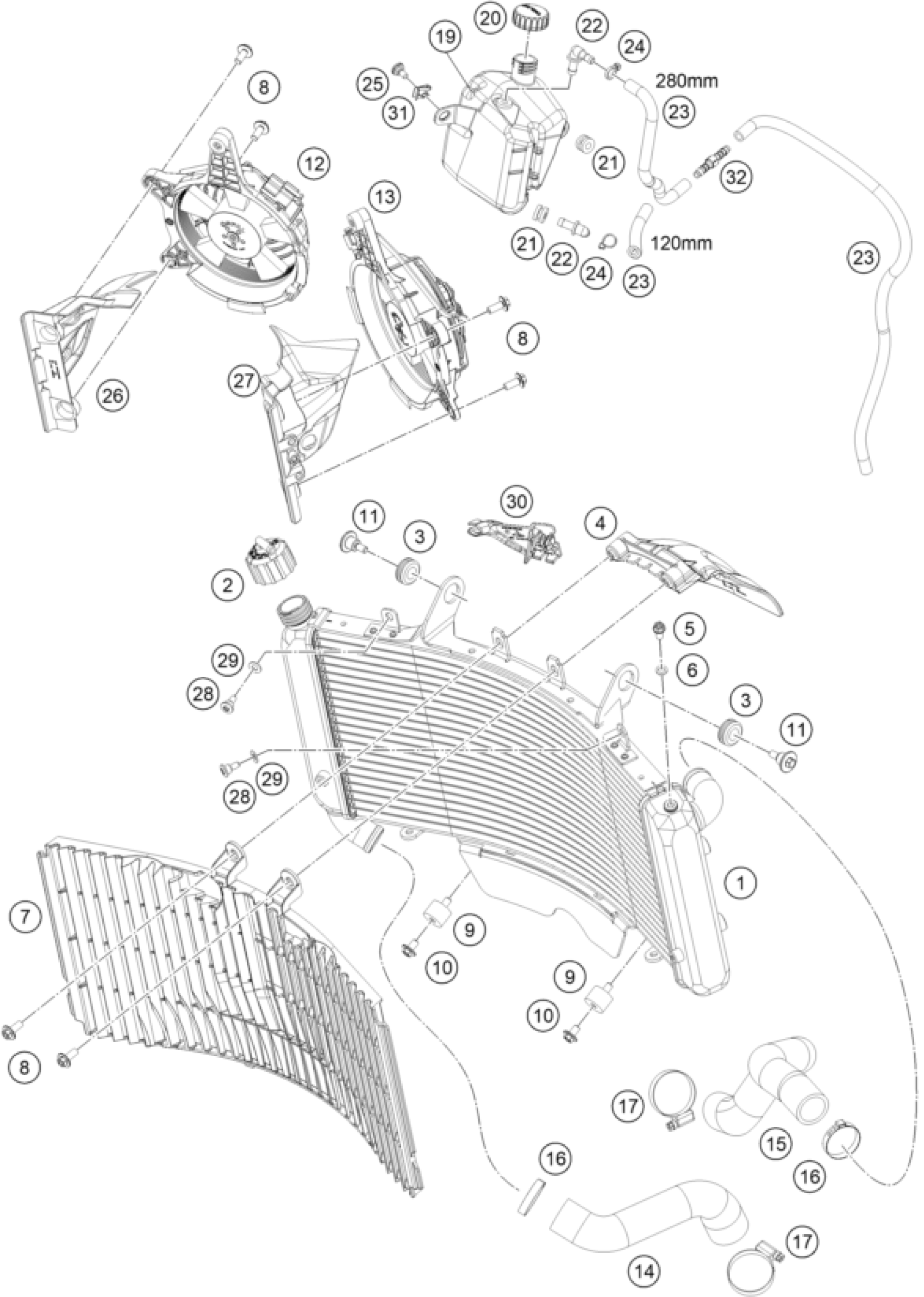

KTM 790 ADVENTURE, black 2023 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator

A61035010000

Unavailable

2

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

3

RUBBER SLEEVE D=12MM

41001052000

Unavailable

4

Air deflector, radiator

63635042000

Unavailable

5

HH collar screw M6x12 TX30

0025060126

Unavailable

6

ALU-GASKET 6X10X1.5

60035048000

Unavailable

7

Radiator protection

63535040000

Unavailable

8

HH collar screw M6x15 TX30

0024060156

Unavailable

9

silentbloc 20x15-M6x10-(1)

C90705062000

Unavailable

10

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

11

SPECIAL SCREW M6X21 WS=8

C60035001000

Unavailable

12

Radiator fan right, cmpl.

63535141044

Unavailable

13

Fan left cpl.

63535041044

Unavailable

14

Pre-formed hose, radiator

C63535026100

Unavailable

15

Pre-formed hose, radiator

C63535027100

Unavailable

16

HOSE CLAMP GEMI 20-32 MM

C0310000903200

Unavailable

17

Hose clamp 25-40 SGT 4

10001120000

Unavailable

19

expansion tank water

C61035065000

Unavailable

20

expansiontank plug cpl

C90735066044

Unavailable

21

rubber insert

C90703065000

Unavailable

22

Angle connection expans. Tank

C90735068000

Unavailable

23

HOSE 6X10 EPDM 03

60035067001

Unavailable

24

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

25

special screw M5x12

69008021160

Unavailable

26

air deflector left

A61008023050

Unavailable

27

air deflector right

A61008024050

Unavailable

28

SCREW M5X14 ISA30 ALU

69007125050

Unavailable

29

WASHER 6X12X1 HRC 40-45

0988060121

Unavailable

30

bracket overrun hose compensat

C61035065010

Unavailable

31

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

32

connector straight

C69015019010

Unavailable
