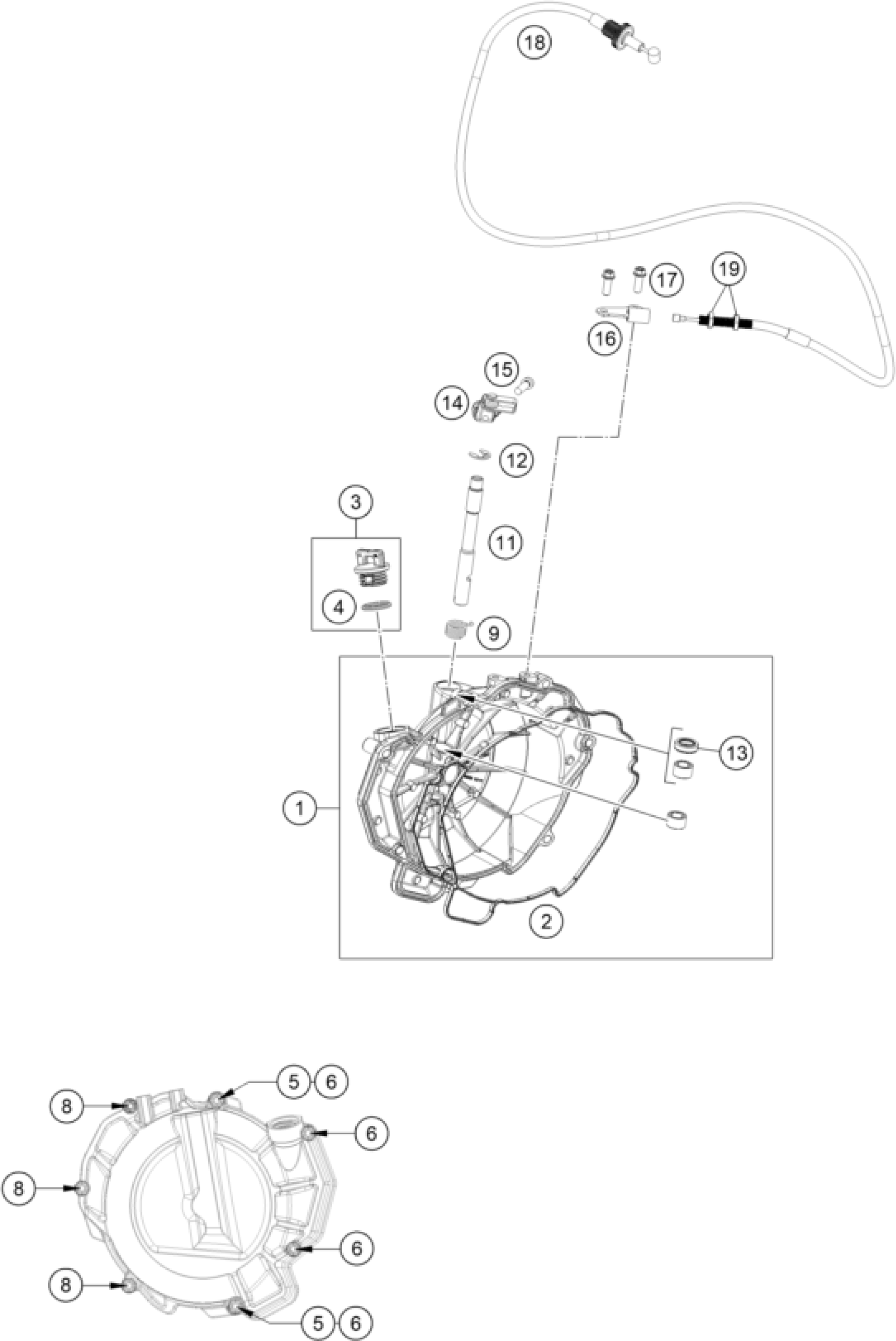

KTM 790 ADVENTURE, black 2023 CLUTCH COVER Diagram

#

Description
Price

1

Clutch cover cpl.

C9003020114441

$89.19

1

Clutch cover cpl. KTMR2R

C9003010114441

Unavailable

2

Form ring, clutch cover

C90030025100

$9.06

3

oil plug cpl. M24x3

C90030020100

$3.00

4

O-ring 19x3 NBR

C0770191015

$1.49

5

Dowel

C90030024000

$3.08

6

HH collar screw M6x35 TX30

0025060356

$3.08

8

HH collar screw M6x25 TX30

0025060256

$3.08

9

clutch release lever spring

C90032048003

$1.49

11

Clutch release shaft

63532149000

$22.06

12

retaining washer DIN 6799 - 9

C0799090003

$1.49

13

Shaft seal ring 32x45x6.5

C0760122060

$2.05

14

Release lever assembly cmpl.

C90032148033

$27.95

15

Cyl. screw ISO 14580 M6x20 SS

014580060206S

$1.49

16

Cable retaining bracket

C63532052100

$1.67

17

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

18

Clutch cable wire

A64602090000

$64.51

19

Hexagonal nut DIN 934 M8

C0934080006

Unavailable
