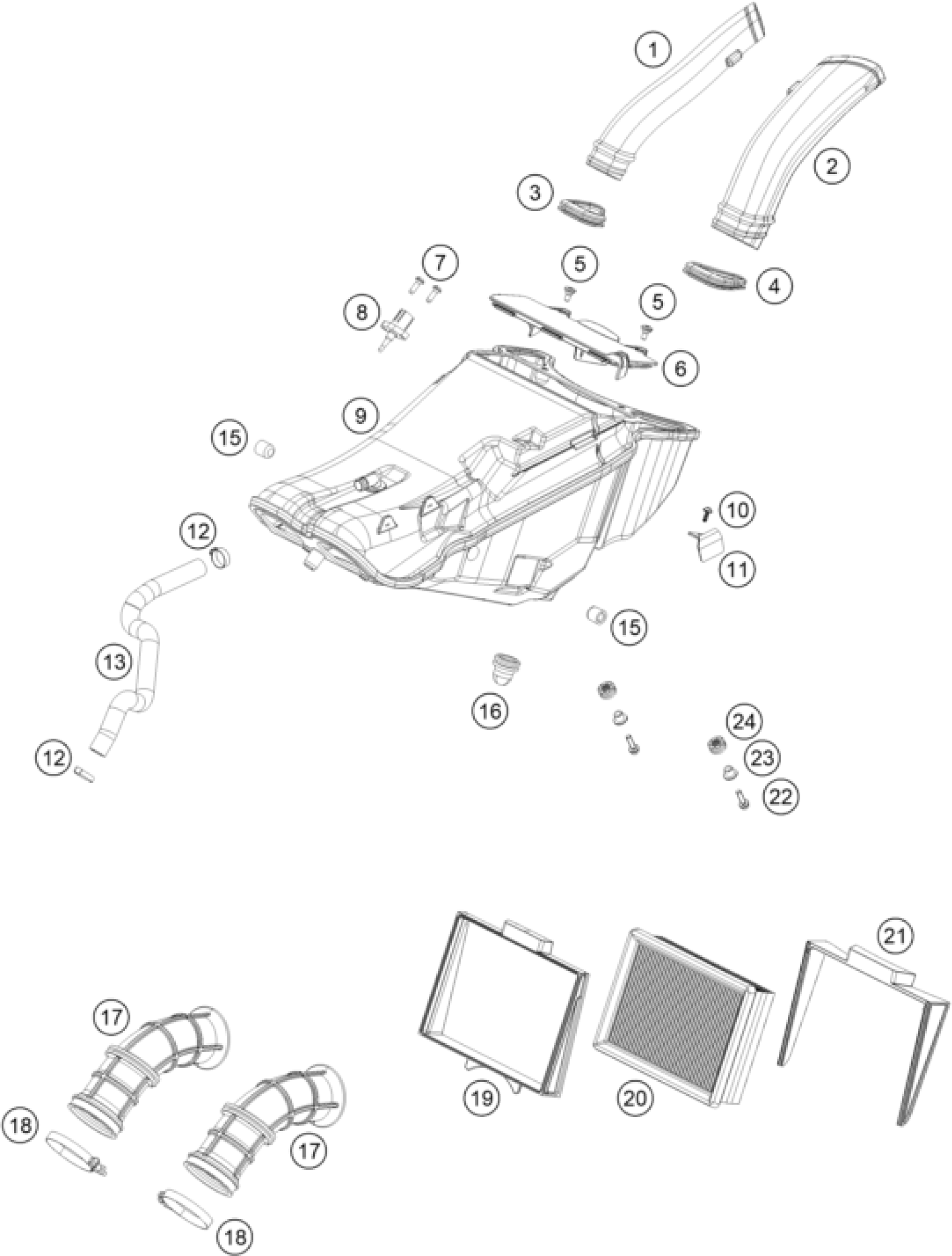

KTM 790 ADVENTURE, black 2023 AIR FILTER Diagram

#

Description
Price

1

INTAKE DUCT, RIGHT

63506041100

Unavailable

2

INTAKE DUCT, LEFT

63506040100

Unavailable

3

Intake port gasket right

63506040150

$2.98

4

Intake port gasket left

63506041150

$2.98

5

Special screw M5x12

69008121160

$1.67

6

Air filter box cover

63506002100

$5.04

7

EJOT PT SCREW K50X16 1451

0081050161

$1.49

8

Intake air temperature sensor

C61041080000

$17.85

9

Air filter box

63506001200

$54.97

10

EJOT PT screw K50x12

0081050121

$2.05

11

Cable bracket air filter box

63506002160

$1.49

12

variable one-year clamp 19.8mm

C00050198706

$2.05

13

Pre-formed hose engine breathe

63530087000

$19.63

15

Rubber grommet

C90706014000

$1.49

16

Rubber grommet slotted

50206020200

$1.49

17

Intake channel

63506026100

$11.59

18

HOSE CLAMP 58MM

C77236048100

$2.98

19

Filter clamp frame

63506116000

$4.67

20

Air filter

A61006015000

$12.71

21

Filter clamp wedge

63506117000

$5.32

22

HH collar screw M5x20 TX30

C0000250502000

$1.49

23

Collar bushing 5.5x9x15x8.5

61314062050

$5.41

24

Damper ABS modulator

C90742041000

$1.49
