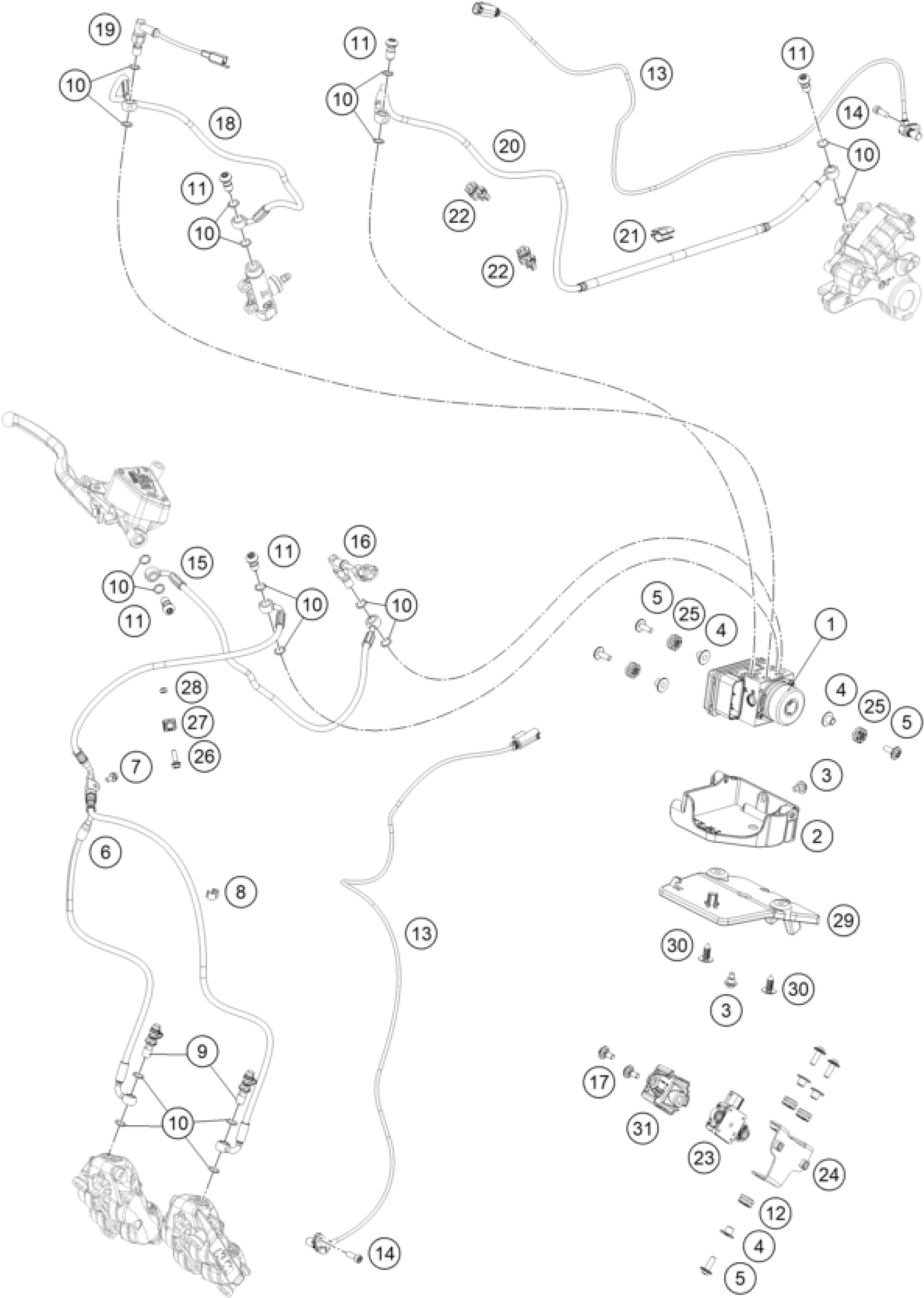

KTM 790 ADVENTURE, black 2023 ABS Diagram

#

Description
Price

1

ABS module filled

A61042031044

Unavailable

2

holder ABS module

C63542040100

Unavailable

3

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

4

Collar bushing 6,5x9x18x8.5

61342041100

Unavailable

5

SPECIAL SCREW M6X18 ISA30 08

C90714017000

Unavailable

6

Brake line front

A64642003000

Unavailable

7

HH collar screw M5x10 TX30

C0000250501000

Unavailable

8

BAR SPACER 4/7 BLACK

C90711094000

Unavailable

9

BLEEDER SCREW CPL. 05

62513020000

Unavailable

10

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

11

banjo bolt M10x1x19.5

C62113020100

Unavailable

12

DUMPER 40 SHORE

C62142041100

Unavailable

13

ABS-SENSOR

76042125000

Unavailable

14

SHCS ISO 14580 M6x16

C0145800601600

Unavailable

15

Front brake line

A64642001000

Unavailable

16

Brake light switch

63711051000

Unavailable

18

Rear brake line

A64642002000

Unavailable

19

BRAKE LIGHT SWITCH REAR

62111051000

Unavailable

20

Rear brake line

A64642004000

Unavailable

21

Hose bracket 10/4

C90713026100

Unavailable

22

Bracket ABS line d7.5

C90742046000

Unavailable

23

Angle sensor

61542090000

Unavailable

24

Retaining bracket, angle senso

6354219003033

Unavailable

25

Damper ABS modulator

C90742041000

Unavailable

26

HH collar screw M5x16 TX30

N0000250501600

Unavailable

27

SUPPORT FOR BRAKE HOSE M5

C60113146000

Unavailable

28

Self-locking nut DIN 985 M5

N0009850500500

Unavailable

29

Heatshield ECU

C61042040010

Unavailable

30

Plug for M8

C61103165000

Unavailable

17

Special screw M6x15x3

C90708000015

Unavailable

31

COVER SENSOR BOX

C61342090050

Unavailable
