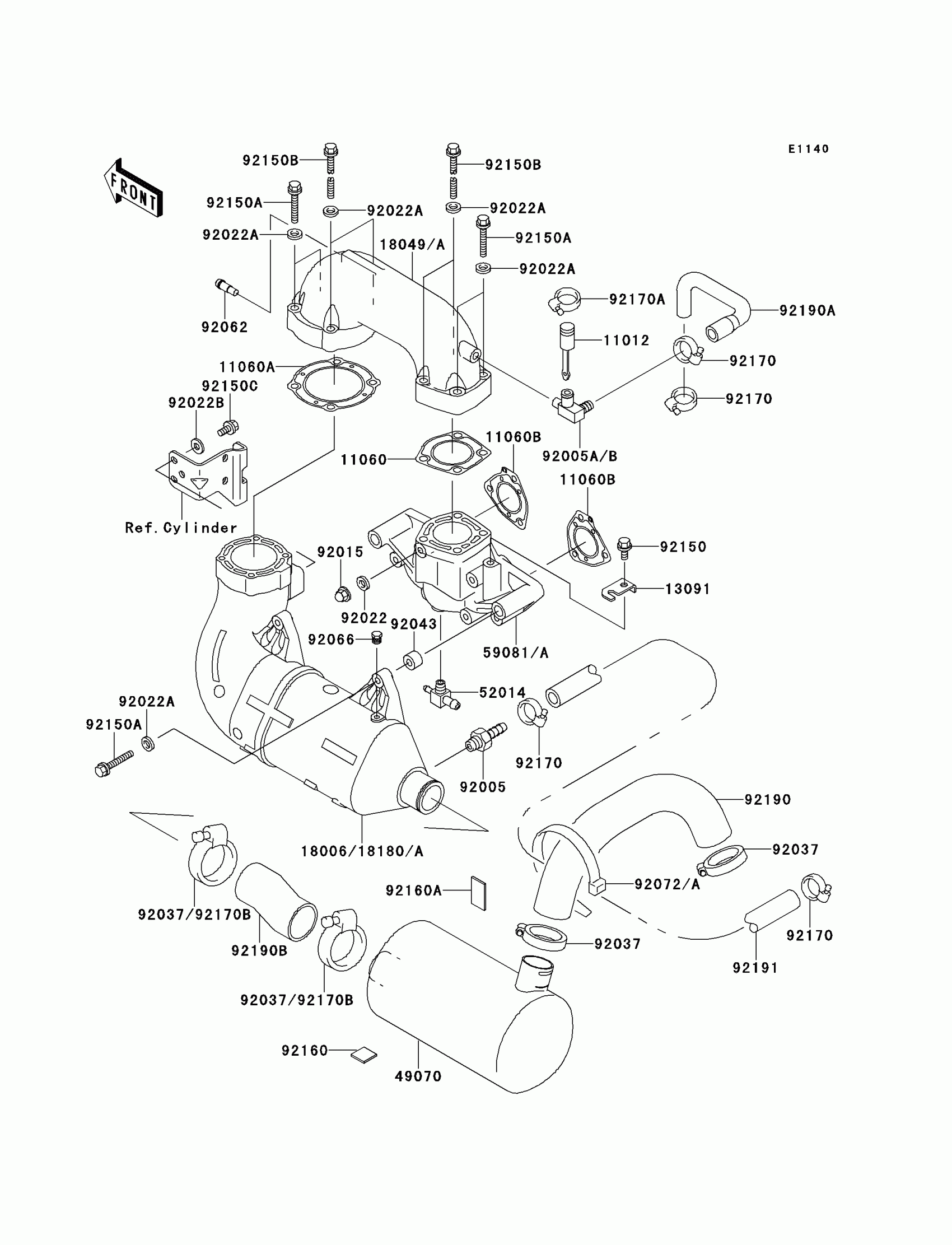

Kawasaki 750 ZXi Muffler(s) Diagram
#
11012
CAP
11012-3757
$10.97
11060
GASKET
11060-3754
$36.78
11060A
GASKET
11060-3755
$33.76
11060B
GASKET,EXHAUST MANIFOLD
11060-3759
$16.53
13091
HOLDER
13091-3791
Unavailable
18049A
PIPE-EXHAUST
18049-3753
$238.80
18180A
BODY-MUFFLER
18180-3706
Unavailable
49070
MUFFLER-COMP
49070-3725
$377.06
52014
ELBOW
52014-3711
$30.12
59081A
MANIFOLD-EXHAUST
59081-3719
Unavailable
92005
FITTING,HOSE
92005-3712
$10.88
92005B
FITTING
92005-3723
Unavailable
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92022B
WASHER,8.2X18X1.5
92022-3743
$4.22
92037
CLAMP
92037-3738
$6.89
92043
PIN,11X14X12.3
92043-1266
$1.08
92062
NOZZLE
92062-3705
$8.44
92066
PLUG,CYLINDER HEAD
92066-3001
Unavailable
92072
BAND,L=292.1
92072-3509
Unavailable
92072A
BAND
92072-3799
$1.59
92150
BOLT,8X16
92150-3722
$7.62
92150A
BOLT,10X50
92150-3819
$13.08
92150B
BOLT,10X125
92150-3825
$20.50
92150C
BOLT,8X16
92150-3846
$6.22
92160
DAMPER,25X25
92160-3864
$3.32
92160A
DAMPER,40X25
92160-3865
$5.24
92170
CLAMP
92170-3718
$13.67
92170A
CLAMP
92170-3729
Unavailable
92170B
CLAMP
92170-3754
$13.41
92190
TUBE,MUFFLER-TAILPIPE
92190-3938
$41.45
92190A
TUBE,HEAD-EXHAUSTPIPE
92190-3939
Unavailable
92190B
TUBE,CHAMBER-MUFFLER
92190-3986
$24.92
92191
TUBE,TAIL-CHAMBER
92191-3714
Unavailable
