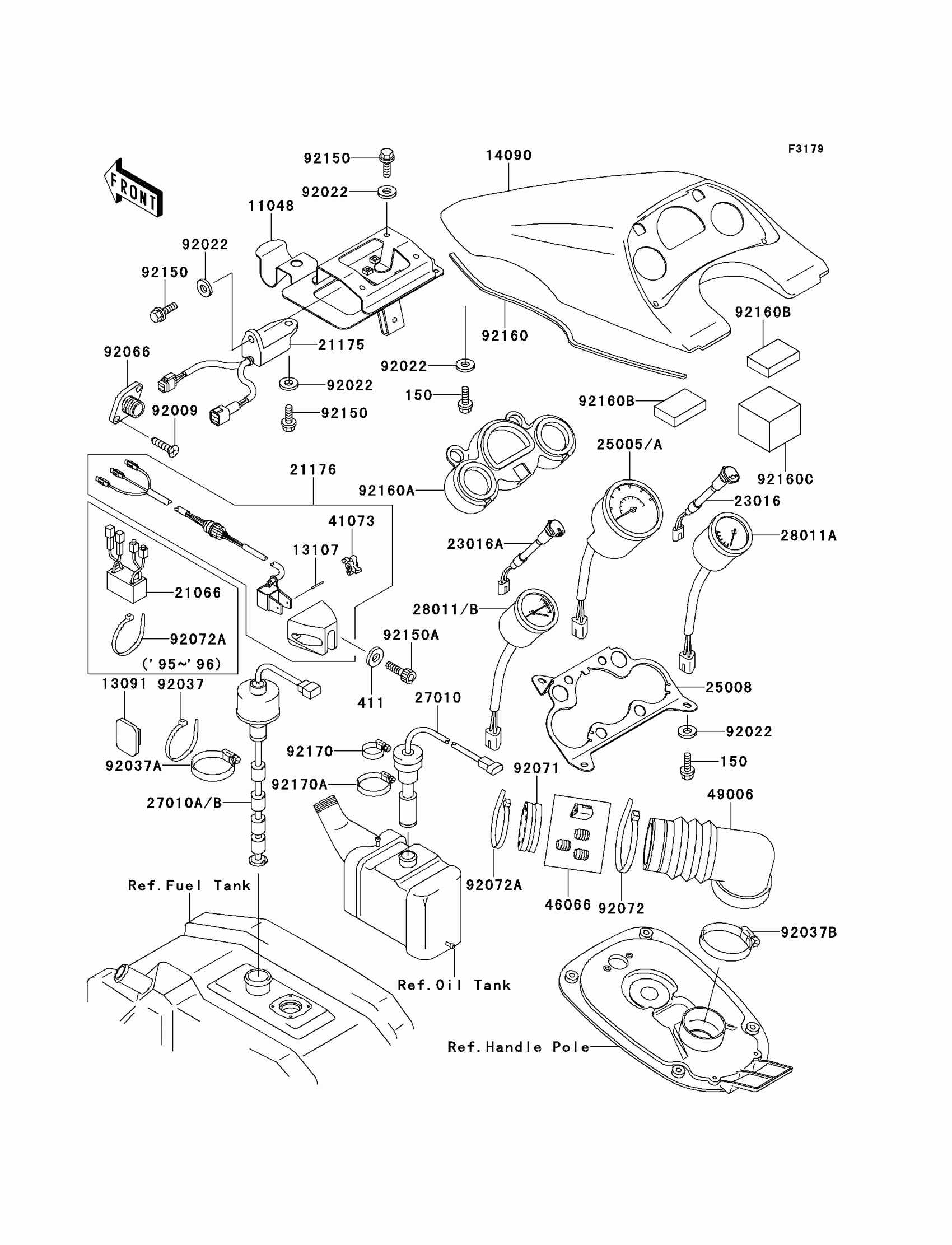

Kawasaki 750 ZXi Meters Diagram
#
150
BOLT-WS,6X14
150R0614
$5.96
411
WASHER-PLAIN,6MM
411S0600
$2.06
11048
BRACKET,UNIT MOUNT
11048-3766
Unavailable
13091
HOLDER,BAND
13091-3764
$5.17
13107
SHAFT,PADDLEWHEEL
13107-3743
$6.35
14090
COVER,METER,J.S.VIOLET
14090-3752-23
Unavailable
21175
CONTROL UNIT-ELECTRONIC
21175-3701
$277.07
21176
SENSOR,SPEEDOMETER
21176-3704
$165.70
23016
LAMP-ASSY,OIL LEVEL WARNING
23016-3703
$72.37
23016A
LAMP-ASSY,WATER TEMP WARNING
23016-3704
$72.37
25005A
SPEEDOMETER
25005-3702
$434.03
25008
BRACKET-METER
25008-3706
Unavailable
27010
SWITCH,OIL LEVEL
27010-3740
Unavailable
27010B
SWITCH,FUEL LEVEL
27010-3746
Unavailable
28011A
METER,FUEL
28011-3708
$254.23
28011B
METER,TRIM
28011-3716
Unavailable
41073
WHEEL-ASSY,PADDLE
41073-3701
$16.84
46066
CONNECTOR-ASSY
46066-3701
Unavailable
49006
BOOT,HARNESS
49006-3715
Unavailable
92009
SCREW,TAPPING,4X14
92009-3755
$2.55
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92037
CLAMP
92037-1173
$3.49
92037A
CLAMP
92037-3009
$3.70
92037B
CLAMP
92037-3711
$6.72
92066
PLUG,SPEEDOMETER SENSER
92066-3750
$10.09
92071
GROMMET,HARNESS
92071-3803
Unavailable
92072
BAND,L=292.1
92072-3509
Unavailable
92072A
BAND,L=201
92072-3778
$1.84
92150
BOLT,6X20
92150-3758
$5.11
92150A
BOLT,SOCKET,6X25
92150-3823
$4.40
92160
DAMPER
92160-3843
Unavailable
92160A
DAMPER,METER
92160-3844
$67.99
92160B
DAMPER
92160-3861
Unavailable
92160C
DAMPER
92160-3862
Unavailable
92170
CLAMP
92170-3718
$13.67
92170A
CLAMP
92170-3734
$15.26
