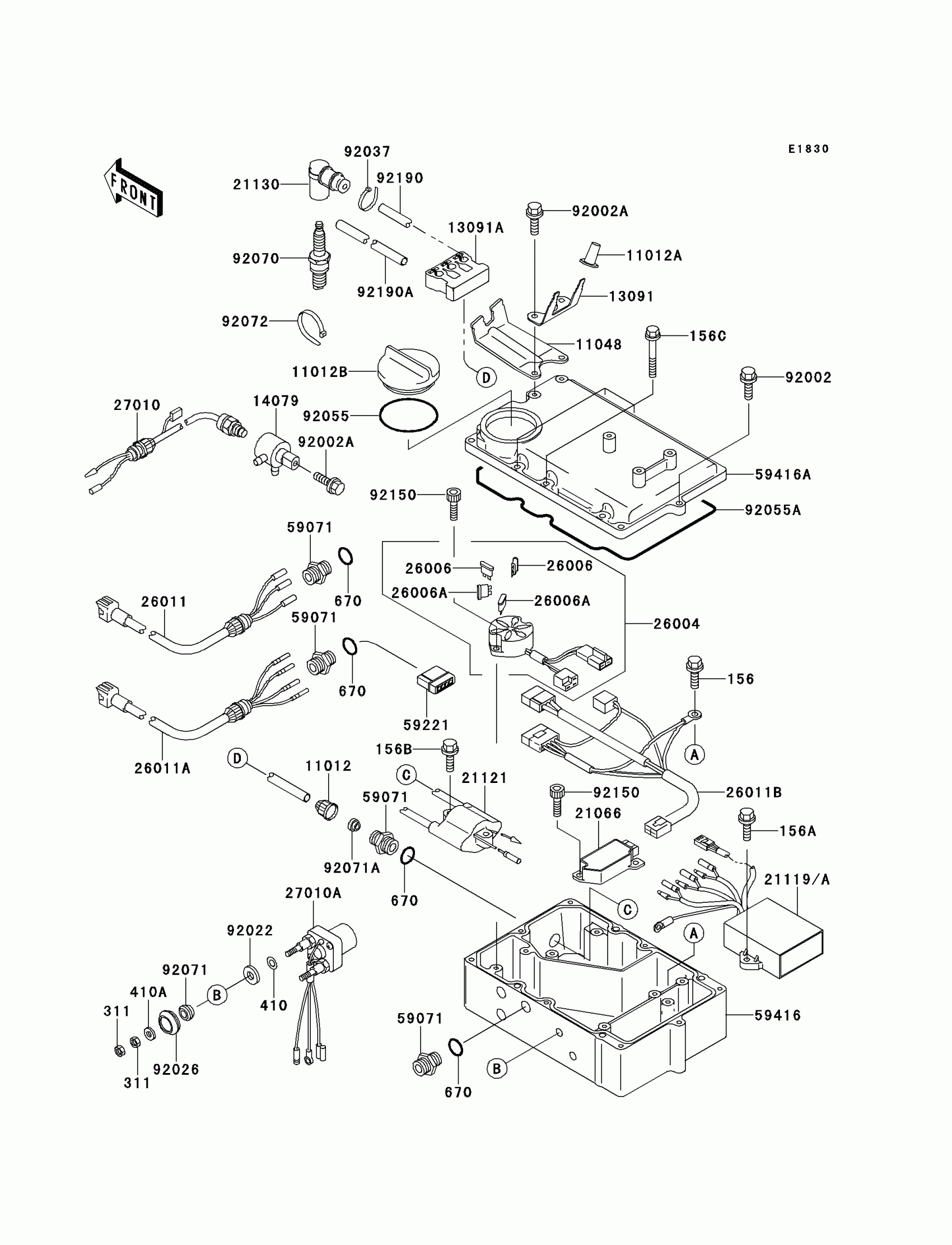

Kawasaki 750 ZXi Ignition System Diagram
#
156
BOLT-WP,6X14
156R0614
$3.90
156A
BOLT-WP,6X20
156R0620
$3.65
11012
CAP
11012-3005
$5.54
11012A
CAP,HOLDER
11012-3768
$7.22
11012B
CAP
11012-3791
$12.48
11048
BRACKET
11048-3770
$36.45
13091
HOLDER,PLUG CAP
13091-3781
Unavailable
13091A
HOLDER
13091-3785
$18.22
14079
HOLDER-ASSY
14079-3710
$110.58
21066
REGULATOR-VOLTAGE
21066-3712
$218.86
21119A
IGNITER
21119-3740
Unavailable
21121
COIL-IGNITION
21121-3711
$126.75
21130
CAP-SPARK PLUG
21130-3706
$52.27
26004
FUSE-ASSY
26004-3716
$120.09
26006
FUSE,BLADE,10A,RED
26006-1007
$4.96
26006A
FUSE,BLADE,30A,GREEN
26006-1067
Unavailable
26011
WIRE-LEAD,ENGINE STOP SWITCH
26011-3816
Unavailable
26011A
WIRE-LEAD,MAIN STARTER SWITCH
26011-3818
$60.18
26011B
WIRE-LEAD,REGULATOR
26011-3819
$66.07
27010
SWITCH
27010-3736
$140.35
27010A
SWITCH,STARTER
27010-3737
$161.37
59071
JOINT
59071-3001
$6.29
59221
CONNECTOR-CORD
59221-3705
Unavailable
59416
CASE-ELECTRIC,LWR
59416-3734
Unavailable
59416A
CASE-ELECTRIC,UPP
59416-3735
$94.65
92002
BOLT,6X25
92002-3714
$5.00
92002A
BOLT,6X16
92002-3728
$4.69
92022
WASHER
92022-3035
$3.52
92026
SPACER
92026-3703
$4.69
92037
CLAMP
92037-1173
$3.49
92055
RING-O
92055-1292
$8.42
92055A
RING-O,ELECTRIC
92055-3738
$34.11
92070
PLUG-SPARK,BR8ES(NGK),SOLID
92070-3702
Unavailable
92071
GROMMET
92071-3004
$3.99
92071A
GROMMET
92071-527
$6.68
92072
BAND,L=201
92072-3778
$1.84
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92190
TUBE,8X10X490
92190-3940
Unavailable
92190A
TUBE,8X10X370
92190-3941
Unavailable
156B
BOLT-WP,6X25
156R0625
$4.76
156C
BOLT-WP,6X90
156R0690
$9.37
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER PLAIN 10MM
410B1000
$0.58
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
670
O RING,16MM
670B2016
$1.36
