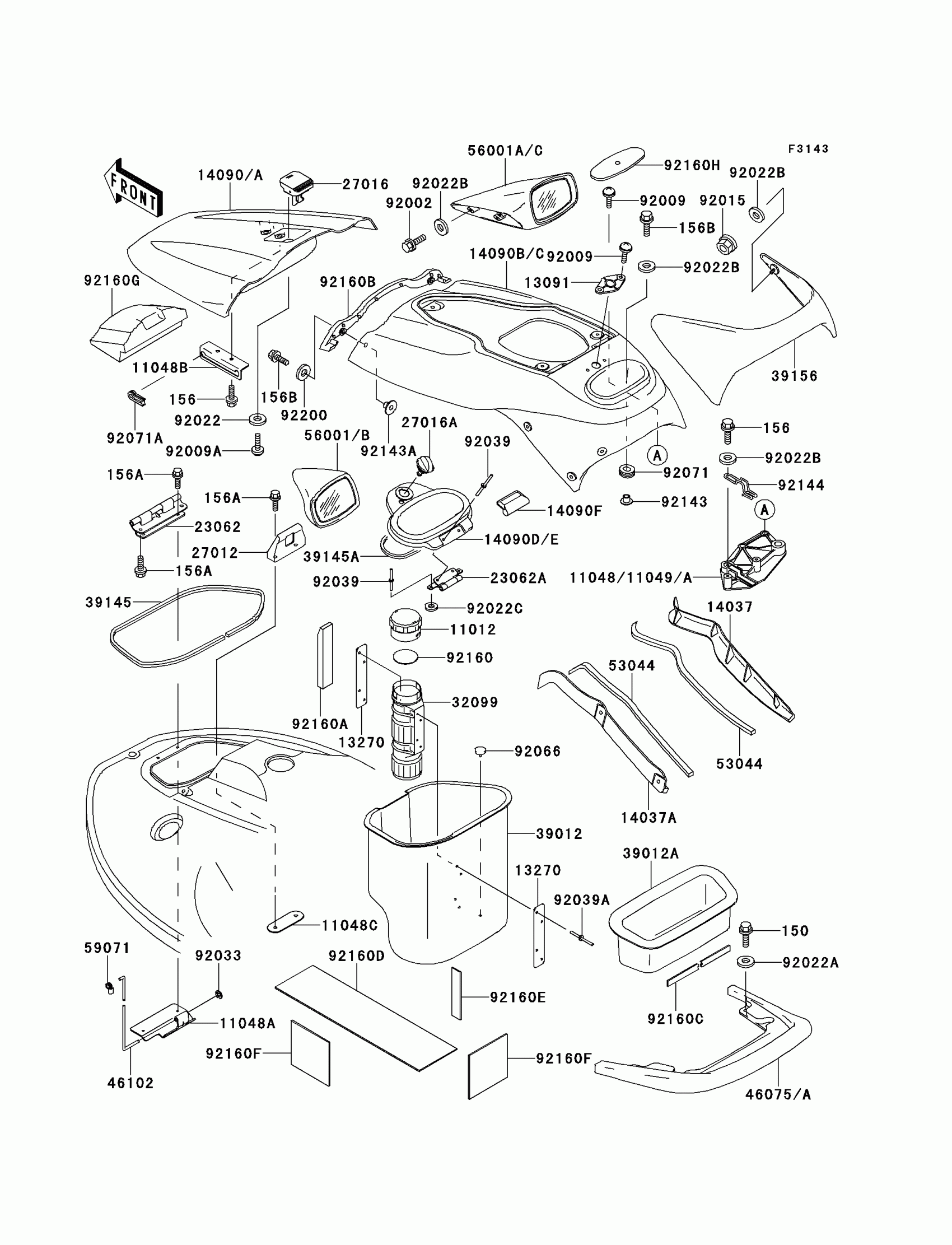

Kawasaki 750 ZXi Hull Fittings Diagram
#
11012
CAP,FIRE EXTINGUISHER
11012-3766
$10.30
11048A
BRACKET,HATCH COVER
11048-3776
$88.44
11048B
BRACKET,HATCH COVER
11048-3777
Unavailable
11048C
BRACKET,HATCH COVER LOCK
11048-3778
Unavailable
11049
BRACKET,FUEL TAP
11049-3714
$32.54
13091
HOLDER,LOCK
13091-3789
$10.11
13270
PLATE,FIRE EXTINGUISHER
13270-3729
Unavailable
14037
SCREEN,HANDLE COVER,RH
14037-3705
$15.89
14037A
SCREEN,HANDLE COVER,LH
14037-3706
$15.89
14090
COVER,HATCH,F.RED
14090-3747-B1
Unavailable
14090B
COVER,HANDLE,F.RED
14090-3748-B1
Unavailable
14090D
COVER,CENTER STORAGE,F.RED
14090-3757-B1
Unavailable
14090F
COVER,STORAGE HINGE,GRAY
14090-3763-RA
Unavailable
23062
BRACKET-COMP,HATCH COVER
23062-3711
$106.82
23062A
BRACKET-COMP,STORAGE HINGE
23062-3713
$102.97
27012
HOOK,HATCH COVER LOCK
27012-3778
Unavailable
27016
LOCK-ASSY,HATCH COVER
27016-3721
$85.52
27016A
LOCK-ASSY,STORAGE COVER
27016-3732
Unavailable
32099
CASE,FIRE EXTINGUISHER
32099-3769
$19.37
39012
CASE-STORAGE,FR
39012-3713
$19.19
39012A
CASE-STORAGE,TOOL CASE
39012-3714
$9.55
39145
TRIM-SEAL
39145-3743
$56.52
39145A
TRIM-SEAL,L=450
39145-3744
$20.70
39156
PAD,KNEE,J.S.VIOLET
39156-3782-PJ
Unavailable
46075
GRIP,TAIL,J.S.VIOLET
46075-3736-RE
Unavailable
46102
ROD,HATCH COVER STOPPER
46102-3722
$21.83
53044
TRIM,L=385
53044-1255
$25.27
56001B
MIRROR-ASSY,LH,J.S.VIOLET
56001-3707-RE
Unavailable
56001C
MIRROR-ASSY,RH,J.S.VIOLET
56001-3708-RE
Unavailable
150
BOLT-WS,6X20
150R0620
$2.65
156
BOLT-WP,6X12
156R0612
$3.90
156A
BOLT-WP,6X18
156R0618
$3.73
156B
BOLT-WP,6X25
156R0625
$4.76
59071
JOINT
59071-3743
$6.89
92002
BOLT,6X30
92002-3726
$4.69
92009
SCREW,6X20
92009-3781
$6.57
92009A
SCREW,5X16
92009-3789
$2.97
92015
NUT,6MM
92015-3767
$4.69
92022
WASHER,5X16X1.5
92022-3041
$4.18
92022A
WASHER,6.5X20X1.5
92022-3710
$3.65
92022B
WASHER,6.2X20X2
92022-3714
$4.18
92022C
WASHER
92022-563
$1.13
92033
RING-SNAP,E-TYPE,4MM
92033-3722
$3.27
92039
RIVET,4MM
92039-3703
$4.69
92039A
RIVET
92039-3755
$6.57
92066
PLUG
92066-3752
$3.56
92071
GROMMET
92071-3808
$4.22
92071A
GROMMET
92071-3809
$5.05
92143
COLLAR
92143-3750
$6.81
92143A
COLLAR
92143-3753
$8.12
92144
SPRING
92144-3746
$4.93
92160
DAMPER
92160-3814
$7.91
92160A
DAMPER
92160-3821
$8.86
92160B
DAMPER,HANDLE COVER,FR
92160-3833
Unavailable
92160C
DAMPER,TOOL CASE
92160-3836
$11.91
92160D
DAMPER
92160-3839
$22.14
92160E
DAMPER
92160-3840
$5.88
92160F
DAMPER,WATER MUFFLER
92160-3841
$8.03
92160G
DAMPER,FIRE EXTINGUISHER CASE
92160-3858
$36.57
92160H
DAMPER
92160-3863
$11.34
92200
WASHER,7.5X24X1.5
92200-3741
$5.07
