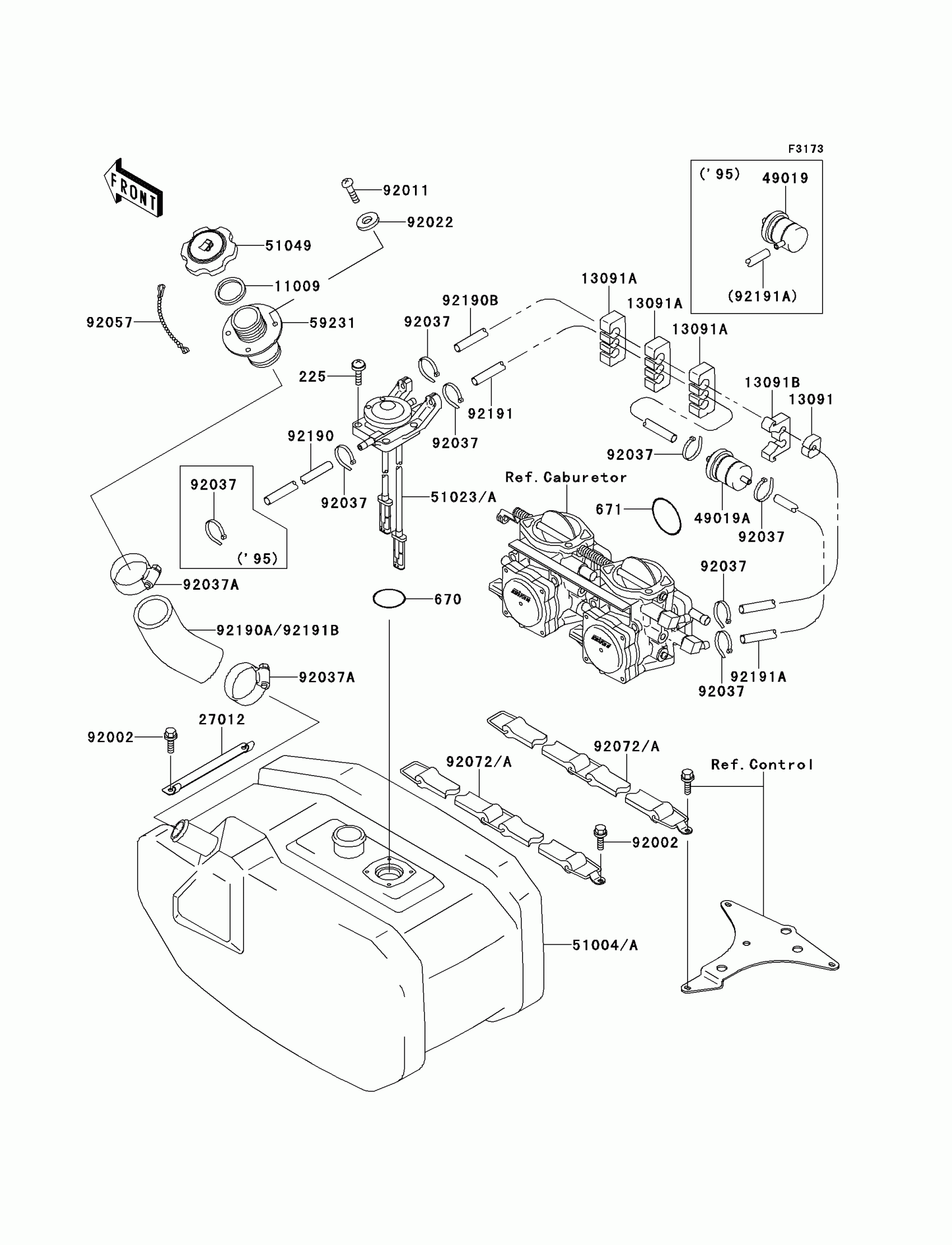

Kawasaki 750 ZXi Fuel Tank Diagram

#

Description
Price

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.45

670

"0" RING,36MM

670B3036

$1.03

671

O RING,65MM

671B2565

$8.86

11009

GASKET,TANK CAP

11009-3020

$13.51

13091

HOLDER

13091-3712

$4.65

13091A

HOLDER,TUBE

13091-3758

$11.19

13091B

HOLDER,FILTER

13091-3795

$9.80

27012

HOOK,BOW EYE

27012-3766

$20.79

49019A

FILTER-FUEL

49019-3712

$45.64

51004A

TANK-FUEL

51004-3723

Unavailable

51023A

TAP-ASSY,FUEL

51023-3724

$134.11

51049

CAP-TANK,FUEL

51049-3719

$28.71

59231

FILLER,FUEL TANK

59231-3001

$17.77

92002

BOLT,6X16

92002-3728

$4.69

92011

SCREW

92011-562

$1.65

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92072A

BAND,FUEL TANK

92072-3797

$53.84

92190

TUBE,5.8X10.8X860

92190-3853

$28.39

92190B

TUBE,"RETURN"

92190-3988

$57.30

92191

TUBE,"ON",5.8X10.8X270

92191-3708

$12.80

92191A

TUBE,"ON",5.8X10.8X940

92191-3715

$26.83

92191B

TUBE,FUEL TANK-FILLER

92191-3755

Unavailable
