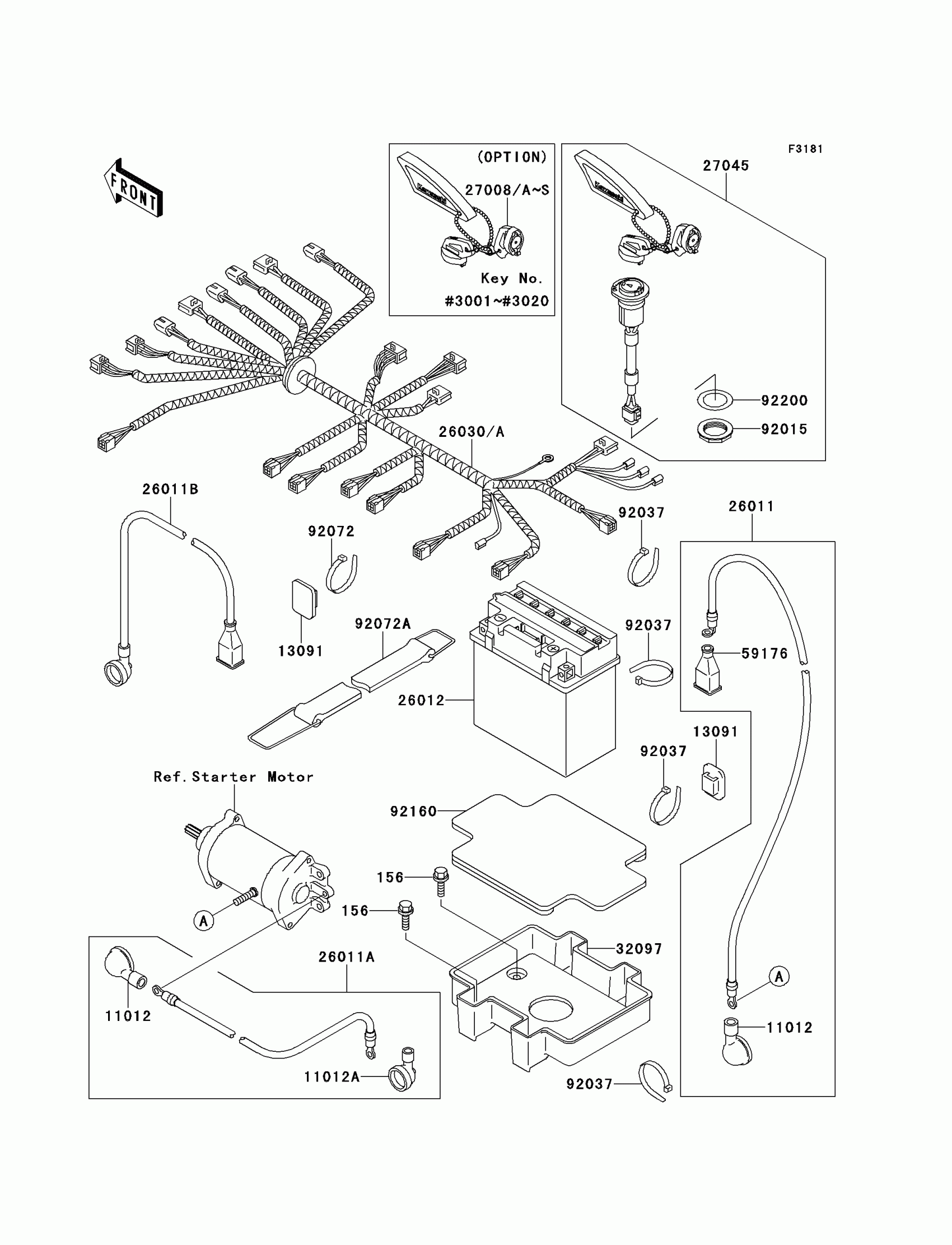

Kawasaki 750 ZXi Electrical Equipment(JH750-C1/C2) Diagram

#

Description
Price

11012

CAP

11012-3004

$7.44

11012A

CAP,LEAD WIRE

11012-3726

$7.71

13091

HOLDER,BAND

13091-3764

$4.58

26011

WIRE-LEAD,STARTER-BATTERY

26011-3796

$70.16

26011A

WIRE-LEAD,RELAY-STARTER

26011-3797

$66.79

26011B

WIRE-LEAD,BATTERY(+)

26011-3825

$61.36

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3721

$150.70

26030A

HARNESS,MAIN

26030-3706

Unavailable

27008

KEY-LOCK,MAGNETIC SW,#3001

27008-3724

$75.48

27008A

KEY-LOCK,MAGNETIC SW,#3002

27008-3725

Unavailable

27008B

KEY-LOCK,MAGNETIC SW,#3003

27008-3726

Unavailable

27008C

KEY-LOCK,MAGNETIC SW,#3004

27008-3727

$75.48

27008D

KEY-LOCK,MAGNETIC SW,#3005

27008-3728

$75.48

27008E

KEY-LOCK,MAGNETIC SW,#3006

27008-3729

$75.48

27008F

KEY-LOCK,MAGNETIC SW,#3007

27008-3730

Unavailable

27008G

KEY-LOCK,MAGNETIC SW,#3008

27008-3731

$75.48

27008H

KEY-LOCK,MAGNETIC SW,#3009

27008-3732

$75.48

27008I

KEY-LOCK,MAGNETIC SW,#3010

27008-3733

Unavailable

27008J

KEY-LOCK,MAGNETIC SW,#3011

27008-3734

$75.48

27008K

KEY-LOCK,MAGNETIC SW,#3012

27008-3735

$75.48

27008L

KEY-LOCK,MAGNETIC SW,#3013

27008-3736

$75.48

27008M

KEY-LOCK,MAGNETIC SW,#3014

27008-3737

Unavailable

27008N

KEY-LOCK,MAGNETIC SW,#3015

27008-3738

Unavailable

27008O

KEY-LOCK,MAGNETIC SW,#3016

27008-3739

$75.48

27008P

KEY-LOCK,MAGNETIC SW,#3017

27008-3740

Unavailable

156

BOLT-WP,6X16

156R0616

$2.76

27008Q

KEY-LOCK,MAGNETIC SW,#3018

27008-3741

Unavailable

27008R

KEY-LOCK,MAGNETIC SW,#3019

27008-3742

$75.48

27008S

KEY-LOCK,MAGNETIC SW,#3020

27008-3743

Unavailable

27045

SWITCH-ASSY,MAIN

27045-3701

$362.14

32097

CASE-BATTERY

32097-3703

$18.59

59176

CAP.,TERMINAL

59176-501

Unavailable

92015

NUT

92015-3848

$4.85

92037

CLAMP

92037-1173

$2.58

92072

BAND,L=201

92072-3778

$1.61

92072A

BAND,BATTERY

92072-3787

$16.71

92160

DAMPER,BATTERY

92160-3860

$11.39

92200

WASHER

92200-3736

$2.66
