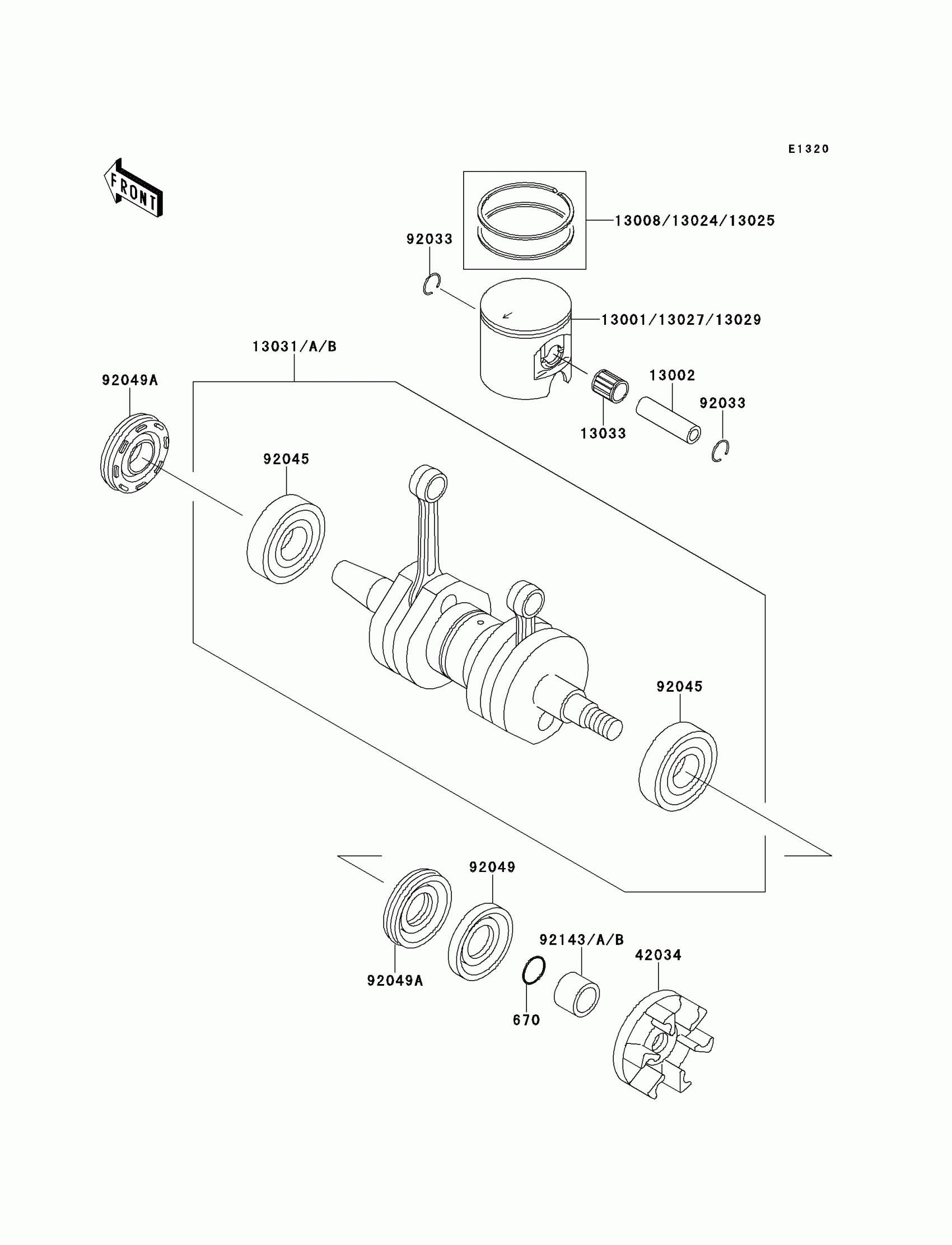

Kawasaki 750 ZXi Crankshaft/Piston(s) Diagram

Description

Price

670

O RING,16MM

670B2016

$1.36

13001

PISTON-ENGINE,STD

13001-3719

$143.13

13002

PIN-PISTON

13002-3706

$24.70

13008

RING-SET-PISTON,STD

13008-3708

$76.68

13024

RING-SET-PISTON LL,O/S 1.00

13024-3706

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-3706

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3711

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3711

Unavailable

13031A

CRANKSHAFT-COMP

13031-3730

$1,210.39

13033

BEARING-SMALL END

13033-3703

$28.84

42034

COUPLING

42034-3707

$53.42

92033

RING-SNAP

92033-3721

$2.76

92045

BEARING-BALL

92045-3714

$45.18

92049

SEAL-OIL,S30726

92049-3706

$14.43

92049A

SEAL-OIL,FWJ7307210ZS

92049-3713

$33.99

92143A

COLLAR

92143-3758

$37.85
