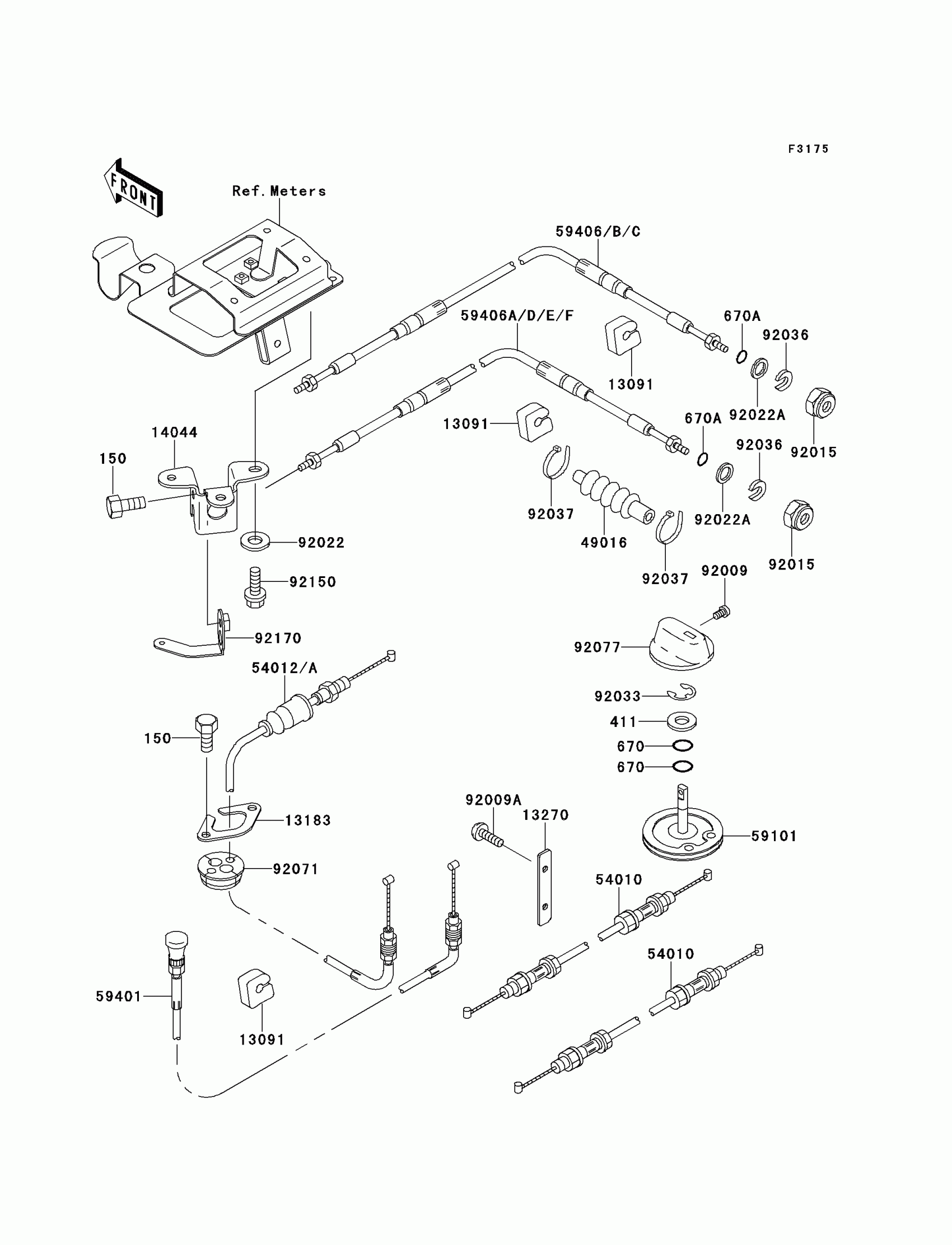

Kawasaki 750 ZXi Cables Diagram

#

Description
Price

150

BOLT-WS,6X14

150R0614

$5.96

411

WASHER-PLAIN,8MM

411S0800

$3.09

670

O RING,8MM

670B1508

$1.29

670A

O RING,11MM

670B2011

$1.28

13091

HOLDER

13091-3712

$4.65

13183

PLATE

13183-3810

Unavailable

13270

PLATE,FUEL TAP

13270-3798

$7.62

14044

HOLDER-CABLE,STEERING

14044-3730

$56.27

49016

COVER-SEAL,TILT CABLE

49016-3702

$4.10

54010

CABLE,FUEL TAP

54010-3710

Unavailable

54012A

CABLE-THROTTLE

54012-3754

$56.78

59101

REEL,SHIFT CABLE

59101-3709

$58.03

59401

CABLE-CHOKE

59401-3714

$45.79

59406B

CABLE-STRG

59406-3746

$158.12

59406F

CABLE-STRG,TILT

59406-3760

Unavailable

92009

SCREW,4X8

92009-3729

$6.61

92009A

SCREW,5X16

92009-3789

$2.97

92015

NUT,20MM

92015-526

$29.72

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92022A

WASHER

92022-535

$7.34

92033

RING-SNAP,7MM

92033-3704

$2.94

92036

RING-SNAP

92036-501

Unavailable

92037

CLAMP

92037-1173

$3.49

92071

GROMMET,HARNESS

92071-3790

$9.64

92077

KNOB,FUEL TAP

92077-3725

Unavailable

92150

BOLT,6X20

92150-3758

$5.11

92170

CLAMP,STEERING CABLE

92170-3744

$10.19
