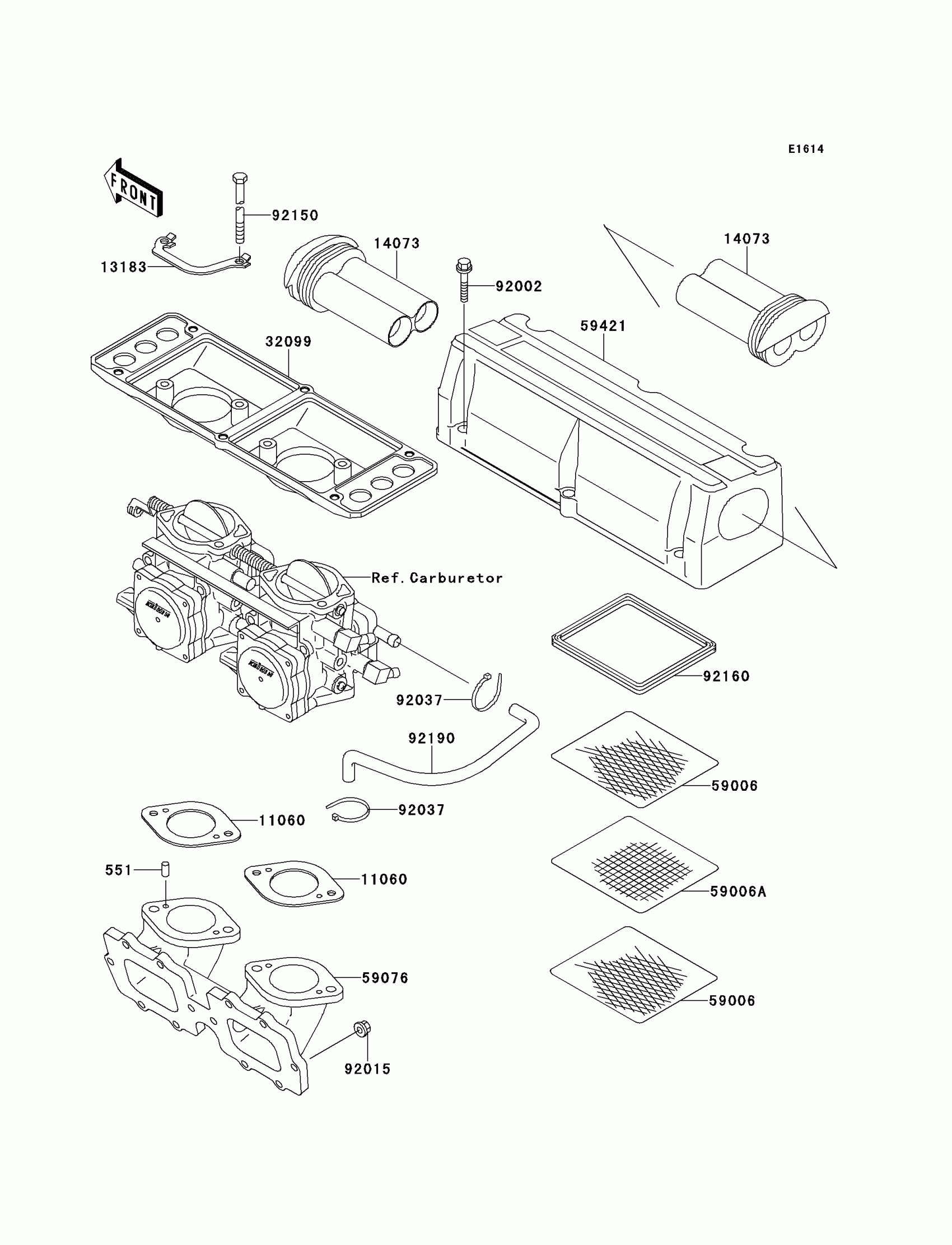

Kawasaki 750 SXi Flame Arrester(JS750-B1) Diagram

Description

Price

551

PIN-DOWEL

551R0408

$5.38

11060

GASKET

11060-3758

$10.46

13183

PLATE

13183-3726

$6.34

14073

DUCT

14073-3733

$30.06

32099

CASE

32099-3770

Unavailable

59006

ARRESTER-FLAME

59006-3707

$30.40

59006A

ARRESTER-FLAME

59006-3708

$15.04

59076

MANIFOLD-INTAKE

59076-3718

Unavailable

59421

COVER-INTAKE

59421-3719

$72.82

92002

BOLT,6X30

92002-3726

$4.69

92015

NUT,6MM

92015-3767

$4.69

92037

CLAMP

92037-1173

$3.49

92150

BOLT,6X125

92150-3784

Unavailable

92160

DAMPER

92160-3704

$18.76

92190

TUBE

92190-3965

$15.04
