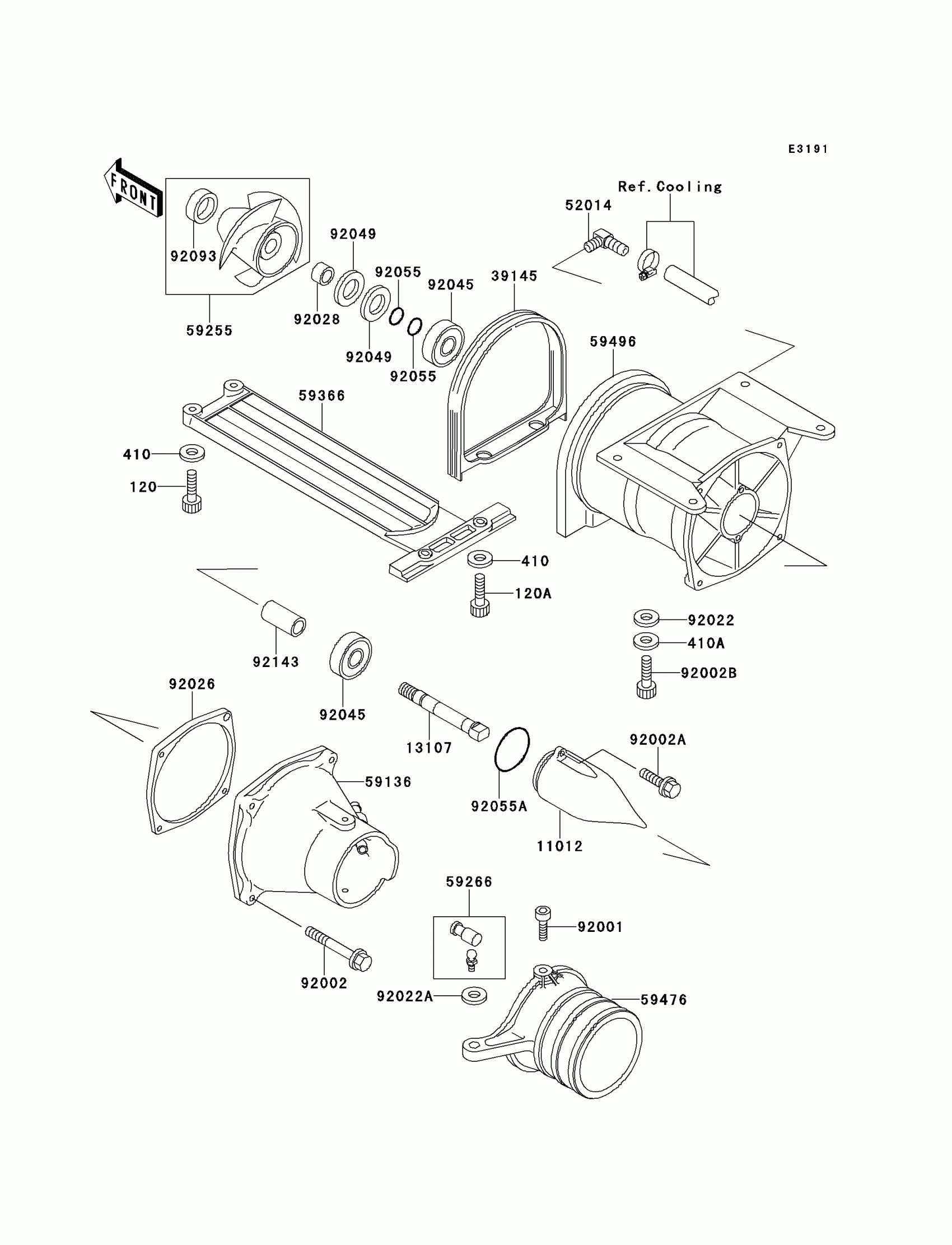

Kawasaki 750 SXi (Canada Only) Jet Pump Diagram
#
Description
Price
120
BOLT-SOCKET,6X16
120R0616
$3.65
120A
BOLT-SOCKET,6X20
120R0620
$3.92
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
410A
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
11012
CAP,JET PUMP
11012-3712
$58.91
13107
SHAFT,JET PUMP
13107-3721
$77.79
39145
TRIM-SEAL
39145-3735
$48.67
52014
ELBOW
52014-3708
$34.82
59136
NOZZLE-PUMP
59136-3730
$140.79
59255
IMPELLER-COMP
59255-3706
$564.09
59266
JOINT-BALL
59266-3707
$66.16
59366
GRATE
59366-3707
Unavailable
59476
NOZZLE-STRG
59476-3713
$87.11
59496
VANE-GUIDE
59496-3726
$1,103.37
92001
BOLT,SOCKET,6X11
92001-3701
$14.67
92002
BOLT,6X40
92002-3716
$5.52
92002A
BOLT,6X16
92002-3728
$4.69
92002B
BOLT,SOCKET,8X20
92002-3771
$8.28
92022
WASHER,8.4X23X2.5
92022-3744
$4.18
92022A
WASHER
92022-567
$2.67
92026
SPACER,JET PUMP
92026-3708
$53.33
92028
BUSHING,17X25X15
92028-3717
$34.49
92045
BEARING-BALL,#63032RD
92045-3706
$39.98
92049
SEAL-OIL,TBY25X47X6
92049-3714
$33.99
92055
RING-O,13X1.9
92055-1021
$7.62
92055A
RING-O
92055-3706
$4.45
92093
SEAL,JET PUMP
92093-3739
$15.50
92143
COLLAR,17.4X25.4X53
92143-3708
$24.05
