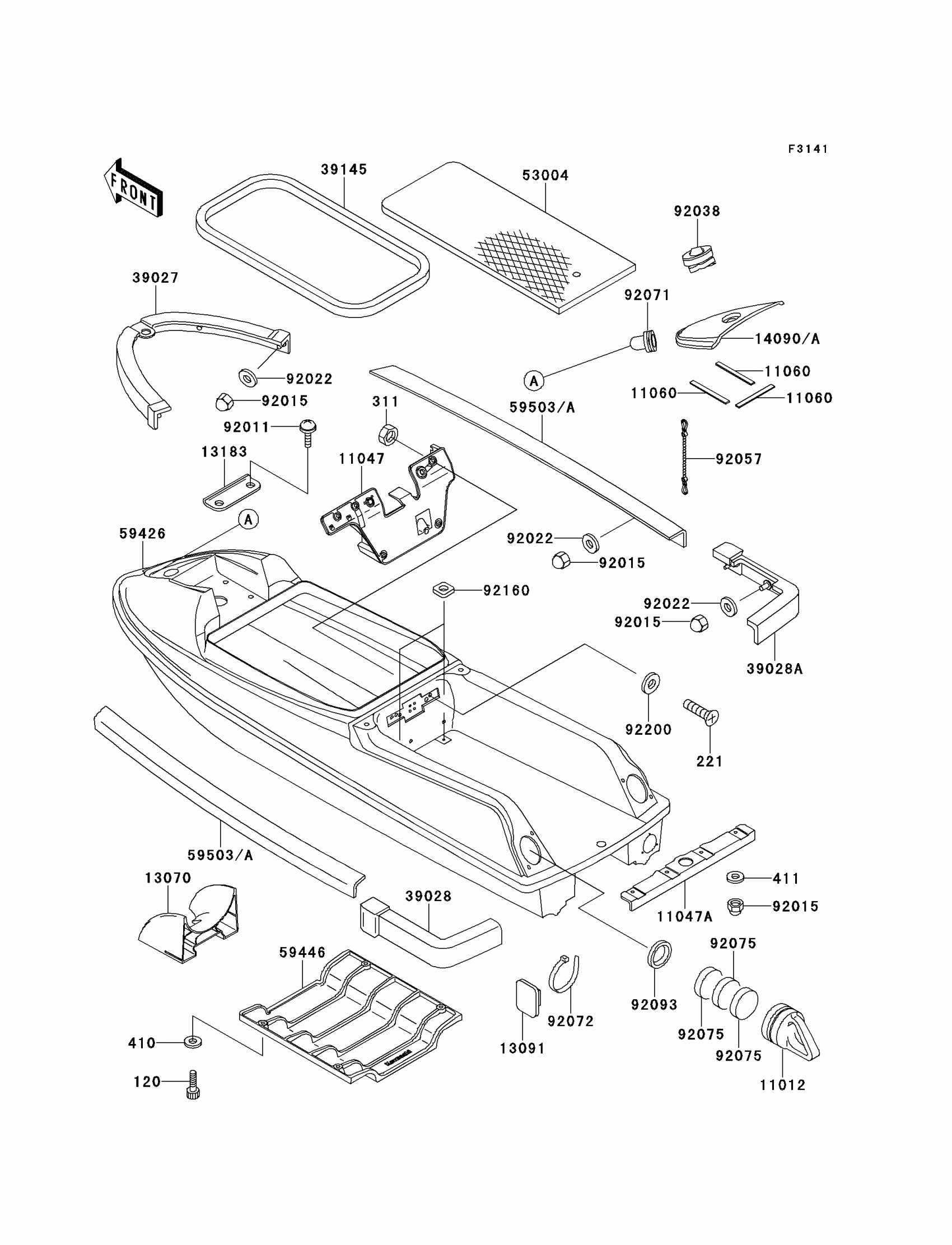

Kawasaki 750 SXi (Canada Only) Hull Diagram
#
Description
Price
120
BOLT-SOCKET,6X20
120R0620
$3.92
221
SCREW-CSK-CROS,6X20
221R0620
$3.34
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
411
WASHER-PLAIN,5MM
411S0500
$0.94
11012
CAP,VIOLET
11012-3752-RE
Unavailable
11047
BRACKET,CONTROL KNOB
11047-3745
$275.98
11047A
BRACKET
11047-3754
Unavailable
11060
GASKET
11060-3722
$4.55
13070
GUIDE,INTAKE
13070-3708
$72.57
13091
HOLDER,BAND
13091-3764
$5.17
13183
PLATE
13183-3787
$9.43
14090
COVER,TANK CAP,J.S.VIOLET
14090-3707-23
$14.97
39027
BUMPER-FRONT,VIOLET
39027-3726-RE
Unavailable
39028
BUMPER-REAR,LH,VIOLET
39028-3726-RE
Unavailable
39028A
BUMPER-REAR,RH,VIOLET
39028-3727-RE
Unavailable
39145
TRIM-SEAL
39145-3731
$117.79
53004
MAT
53004-3740
Unavailable
59446
COVER-JET PUMP
59446-3715
Unavailable
59503A
FENDER-BOAT,J.S.VIOLET
59503-3704-RE
Unavailable
92011
SCREW,TAPPING
92011-561
Unavailable
92015
NUT,CAP,5MM
92015-3802
$4.99
92022
WASHER
92022-567
$2.67
92038
KEY,TANK CAP
92038-3707
$115.79
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92071
GROMMET
92071-3780
$4.28
92072
BAND,L=148
92072-3768
$3.92
92075
DAMPER
92075-3719
$9.40
92093
SEAL,OSR70X82X7.5
92093-3704
$15.74
92160
DAMPER
92160-3797
$6.05
92200
WASHER
92200-3720
$2.46
