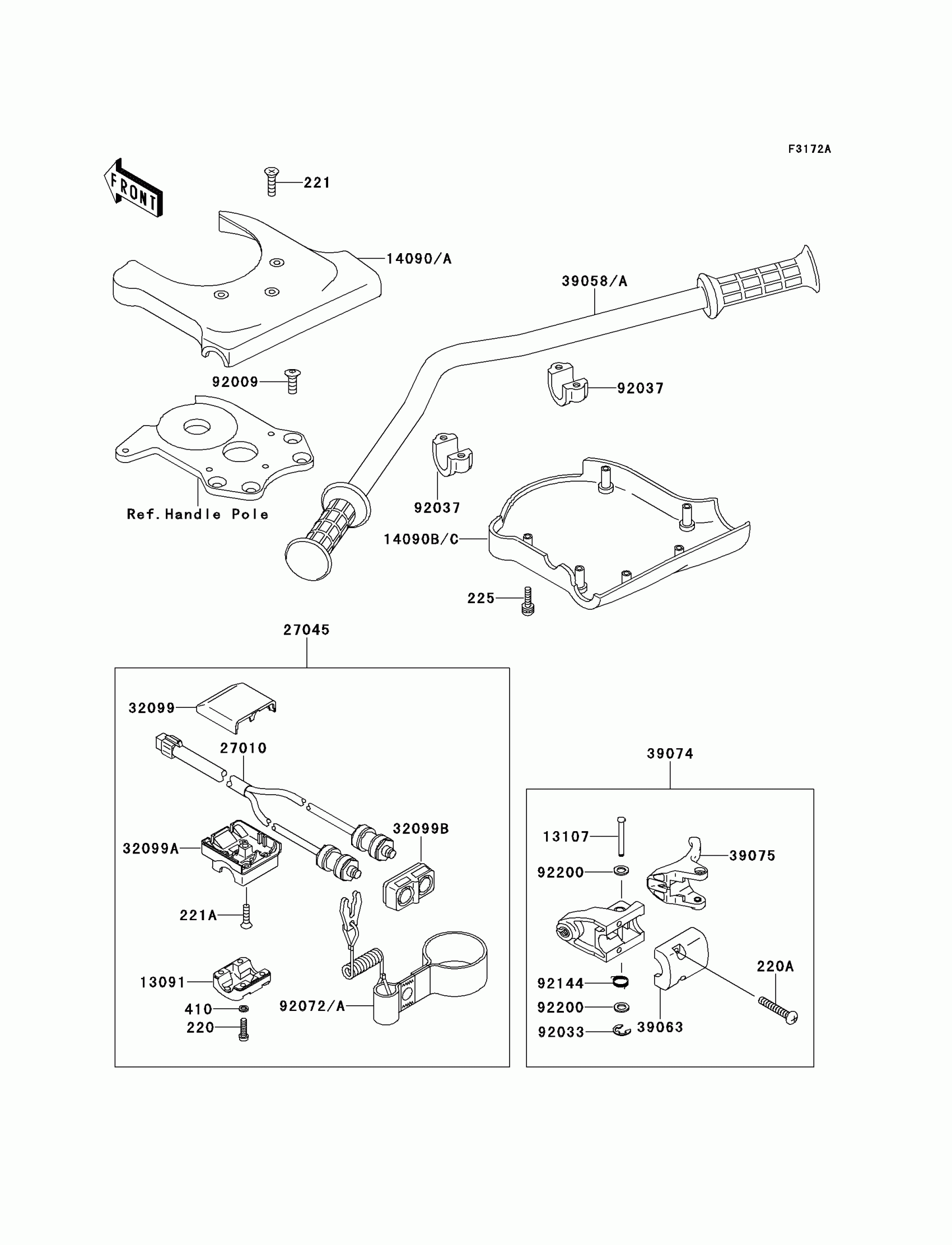

Kawasaki 750 SXi (Canada Only) Handlebar(JS750-B2/B3) Diagram

Description

Price

220

SCREW-PAN-CROS,5X20

220R0520

$3.59

220A

SCREW-PAN-CROS

220R0630

$5.10

221

SCREW-CSK-CROS,6X16

221R0616

$1.06

221A

SCREW-CSK-CROS,6X25

221R0625

$3.97

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.14

410

W-PLAIN-S,5MM

410S0500

$1.20

13091

HOLDER,SWITCH

13091-3767

Unavailable

13107

SHAFT

13107-3740

$8.37

14090

COVER,HANDLE,UPP,BLACK

14090-3766-MA

$608.63

14090B

COVER,HANDLE,LWR,BLACK

14090-3767-MA

$473.10

27010

SWITCH,STOP&START

27010-3732

$204.93

27045

SWITCH-ASSY,STOP&START

27045-3706

Unavailable

32099

CASE,UPP,SWITCH

32099-3764

Unavailable

32099A

CASE,LWR,SWITCH

32099-3766

$40.74

32099B

CASE,FR,SWITCH

32099-3809

$85.84

39058A

HANDLE-COMP,J.S.VIOLET

39058-3713-RE

Unavailable

39063

HOUSING-CONTROL

39063-3720

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3717

$117.37

39075

LEVER-THROTTLE

39075-3710

$51.83

92009

SCREW,8X22

92009-3701

$5.72

92033

RING-SNAP

92033-3723

$2.64

92037

CLAMP,HANDLEBAR

92037-503

$15.14

92072

BAND,TETHER SWITCH

92072-3784

$60.42

92144

SPRING

92144-3749

$3.81

92200

WASHER

92200-3738

$2.66
