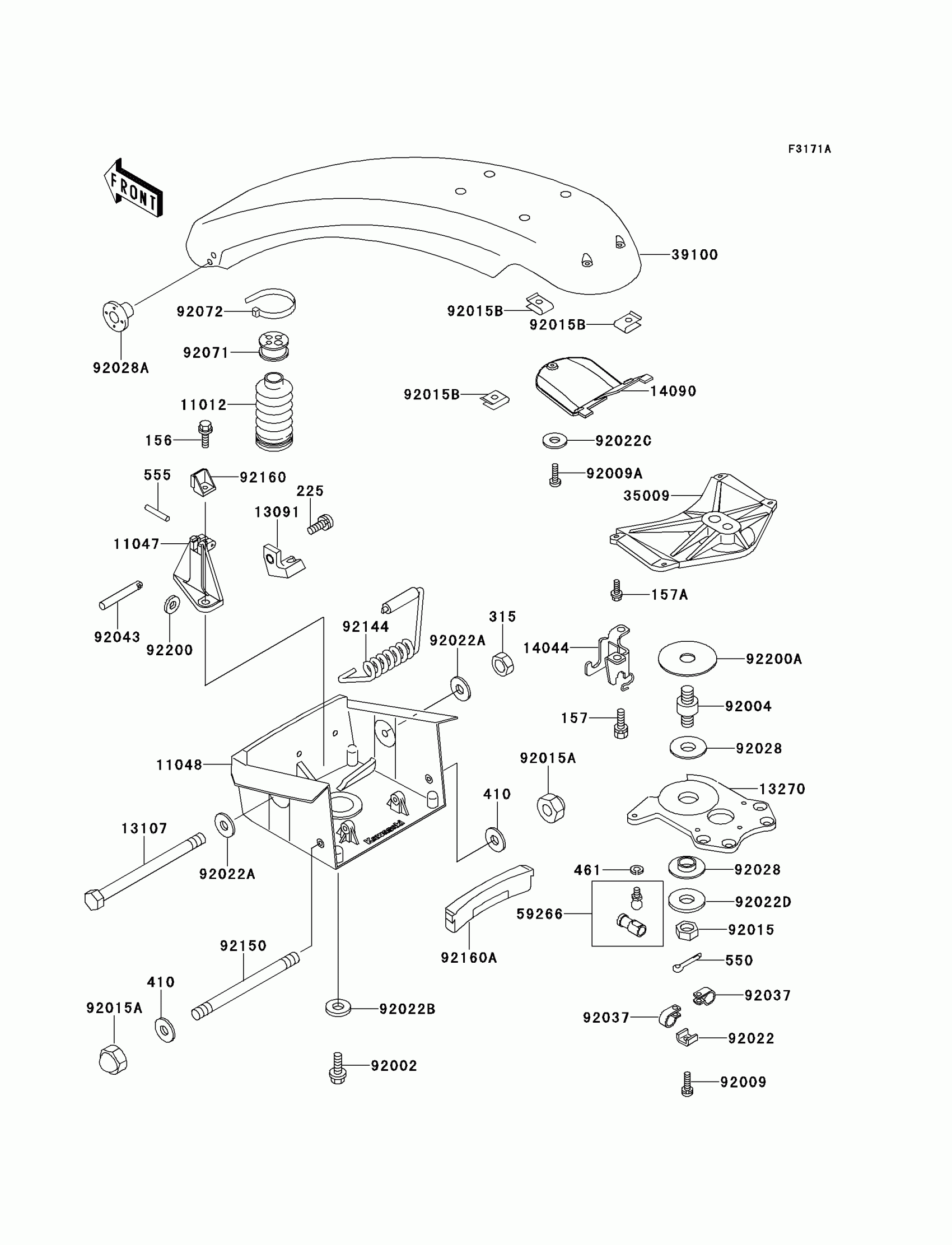

Kawasaki 750 SXi (Canada Only) Handle Pole(JS750-B2/B3) Diagram

#

Description
Price

156

BOLT-WP,6X16

156R0616

$2.76

157

BOLT-WSP,6X16

157R0616

Unavailable

157A

BOLT-WSP,6X20

157R0620

$3.51

225

SCREW-PAN-WSP-CROS,5X16

225R0516

Unavailable

315

NUT-HEX-FINE,14MM

315R1400

$7.76

11012

CAP

11012-3754

Unavailable

11047

BRACKET

11047-3800

Unavailable

11048

BRACKET,PIVOT SHAFT,J.WHITE

11048-3785-8C

$195.18

13091

HOLDER

13091-3774

$8.36

13107

SHAFT,PIVOT

13107-3725

Unavailable

13270

PLATE,HANDLEBER

13270-3805

Unavailable

14044

HOLDER-CABLE

14044-3716

$46.29

14090

COVER,HANDLE POLE,J.S.VIOLET

14090-3708-23

$10.31

35009

BRACE

35009-3707

$54.49

39100

POLE-COMP-HANDLE,J.S.VIOLET

39100-3713-23

Unavailable

59266

JOINT-BALL

59266-3707

$59.33

92002

BOLT,8X25

92002-3774

$7.76

92004

STUD

92004-3728

$70.34

92009

SCREW,5X16

92009-3736

$4.59

92009A

SCREW,5X16

92009-3797

$1.89

92015

NUT,CASTLE,18MM

92015-3006

$38.59

92015A

NUT,CAP,6MM

92015-3755

$4.59

92015B

NUT,CLIP,5MM

92015-3830

$6.04

92022

WASHER,CLAMP

92022-3014

$4.24

92022A

WASHER,15X34X2.0

92022-3738

$4.93

92022B

WASHER,8.5X34X3

92022-3746

$8.76

92022C

WASHER

92022-567

$1.89

92022D

WASHER

92022-571

$36.85

92028

BUSHING

92028-3743

$8.04

92028A

BUSHING,STEERING

92028-3752

$8.45

92037

CLAMP,LEAD WIRE

92037-3007

$7.22

92043

PIN

92043-3739

Unavailable

92071

GROMMET

92071-3788

$10.22

92072

BAND,L=201

92072-3778

$1.61

92144

SPRING

92144-3735

$101.50

92150

BOLT,6X119

92150-3787

Unavailable

92160

DAMPER

92160-3790

$7.76

92160A

DAMPER

92160-3846

Unavailable

92200

WASHER,3.5X12X1

92200-3723

$3.25

92200A

WASHER,20.5X80X3

92200-3725

$14.64

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

461

WASHER-SPRING,6MM

461S0600

$0.84

550

PIN-COTTER,4X40

550S4040

$5.51

555

PIN-SPRING,3X25

555B0325

$3.05
