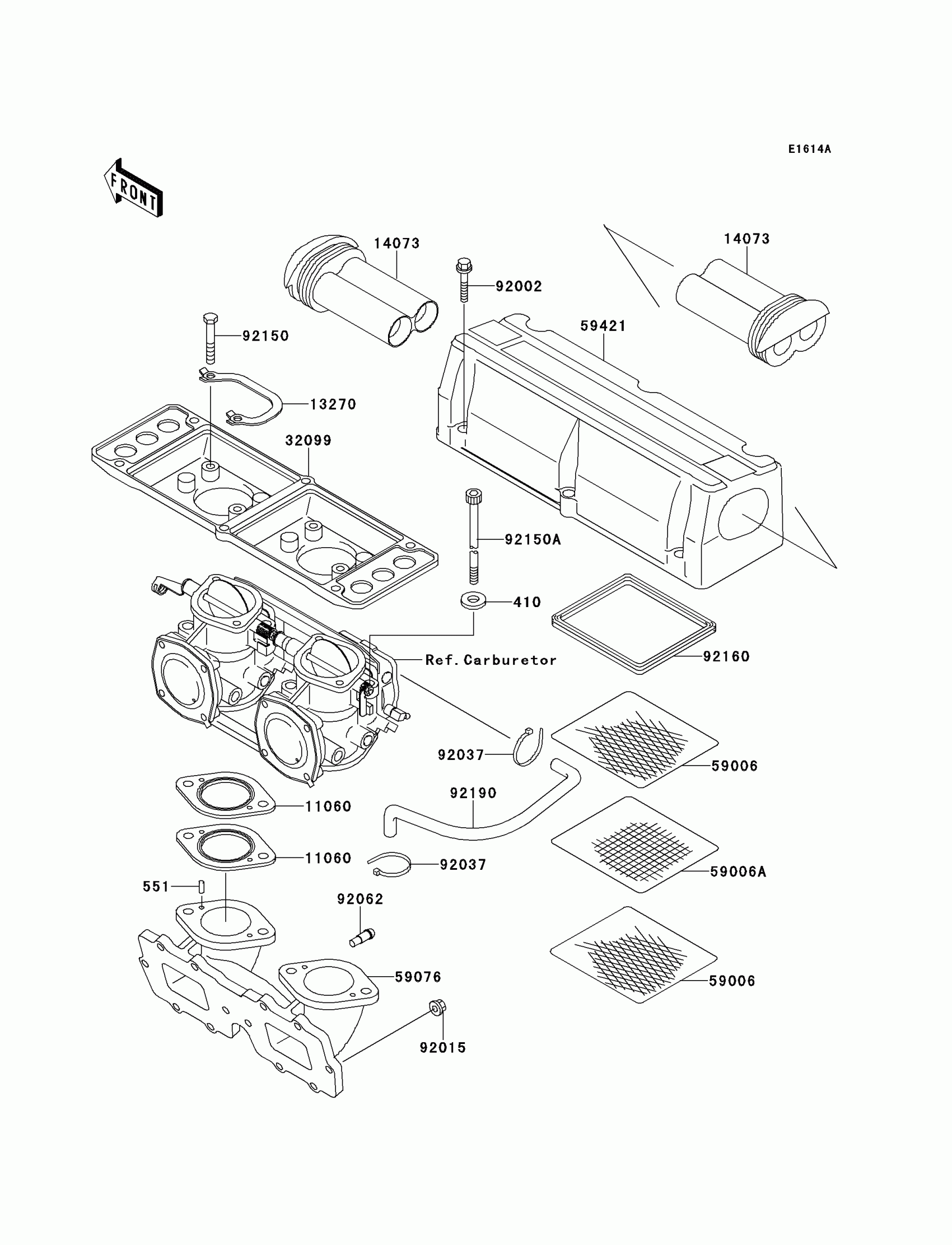

Kawasaki 750 SXi (Canada Only) Flame Arrester(JS750-B2/B3) Diagram

Description

Price

410

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

551

PIN-DOWEL

551R0416

$5.00

11060

GASKET,CARBURETOR

11060-3761

$9.28

13270

PLATE

13270-3804

$5.96

14073

DUCT

14073-3733

$30.06

32099

CASE

32099-3801

$108.74

59006

ARRESTER-FLAME

59006-3707

$30.40

59006A

ARRESTER-FLAME

59006-3708

$15.04

59076

MANIFOLD-INTAKE

59076-3720

Unavailable

59421

COVER-INTAKE

59421-3719

$72.82

92002

BOLT,6X30

92002-3726

$4.69

92015

NUT,6MM

92015-3767

$4.69

92037

CLAMP

92037-1173

$3.49

92062

NOZZLE

92062-3703

$15.43

92150

BOLT,6X30

92150-3766

Unavailable

92150A

BOLT,SOCKET,8X85

92150-3852

$17.95

92160

DAMPER

92160-3704

$18.76

92190

TUBE

92190-3965

$15.04
