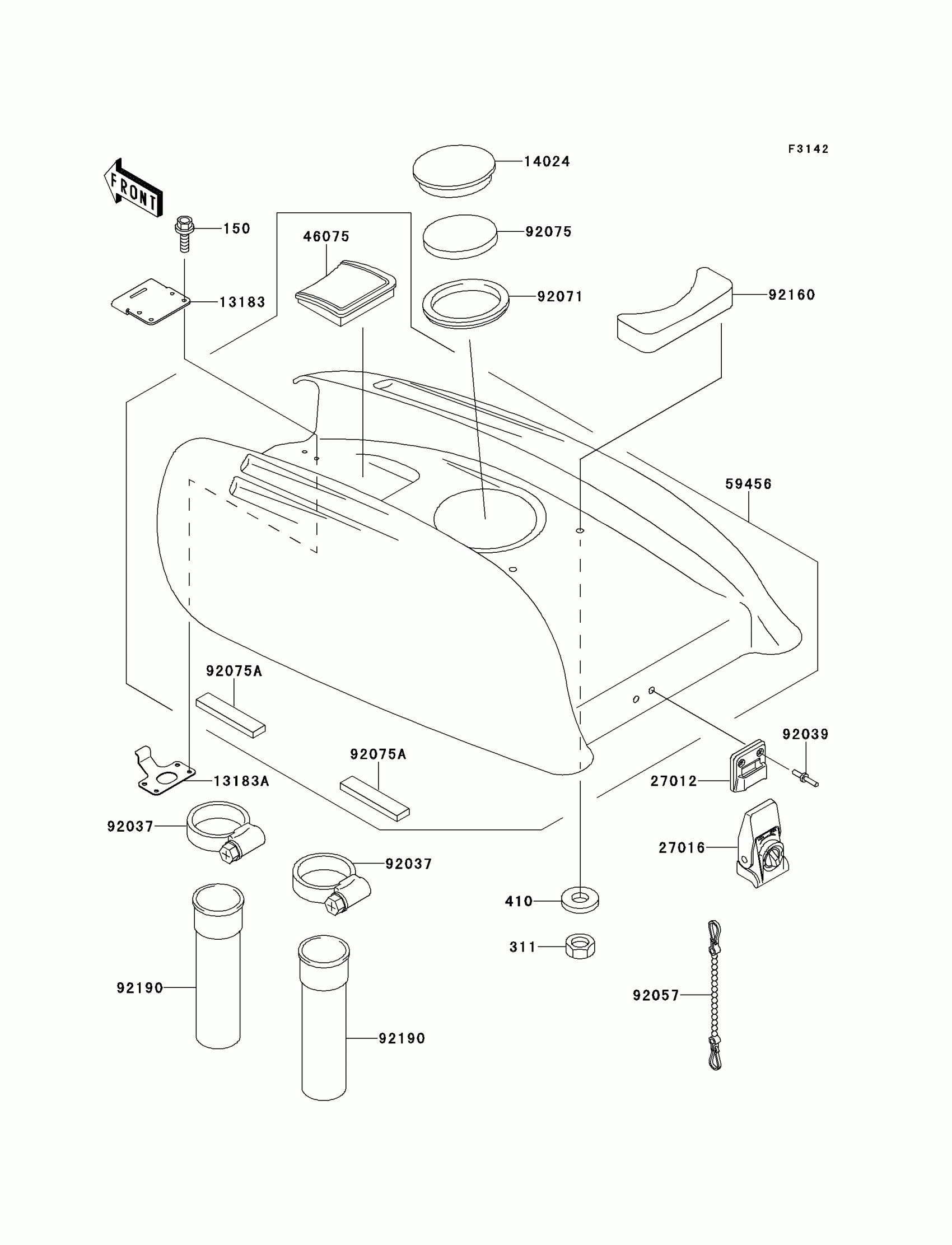

Kawasaki 750 SXi (Canada Only) Engine Hood Diagram

Description

Price

150

BOLT-WS,5X25

150R0525

$3.60

311

NUT-HEX,5MM

311R0500

$1.75

410

W-PLAIN-S,5MM

410S0500

$1.59

13183

PLATE,ENGINE HOOD

13183-3788

$45.37

13183A

PLATE,ENGINE HOOD

13183-3789

$35.04

14024

COVER

14024-3748

$7.76

27012

HOOK,ENGINE HOOD LOCK

27012-3762

$38.78

27016

LOCK-ASSY,ENGINE HOOD

27016-3723

Unavailable

46075

GRIP,ENGINE HOOD,J.WHITE

46075-3722-8C

$19.58

59456

HOOD-COMP-ENGINE,J.WHITE

59456-3728-8C

Unavailable

92037

CLAMP

92037-3738

$6.89

92039

RIVET

92039-3750

$7.58

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92071

GROMMET

92071-3742

$9.94

92075

DAMPER

92075-3737

$24.84

92075A

DAMPER

92075-3757

$6.52

92160

DAMPER

92160-3772

$80.83

92190

TUBE

92190-3824

$49.07
