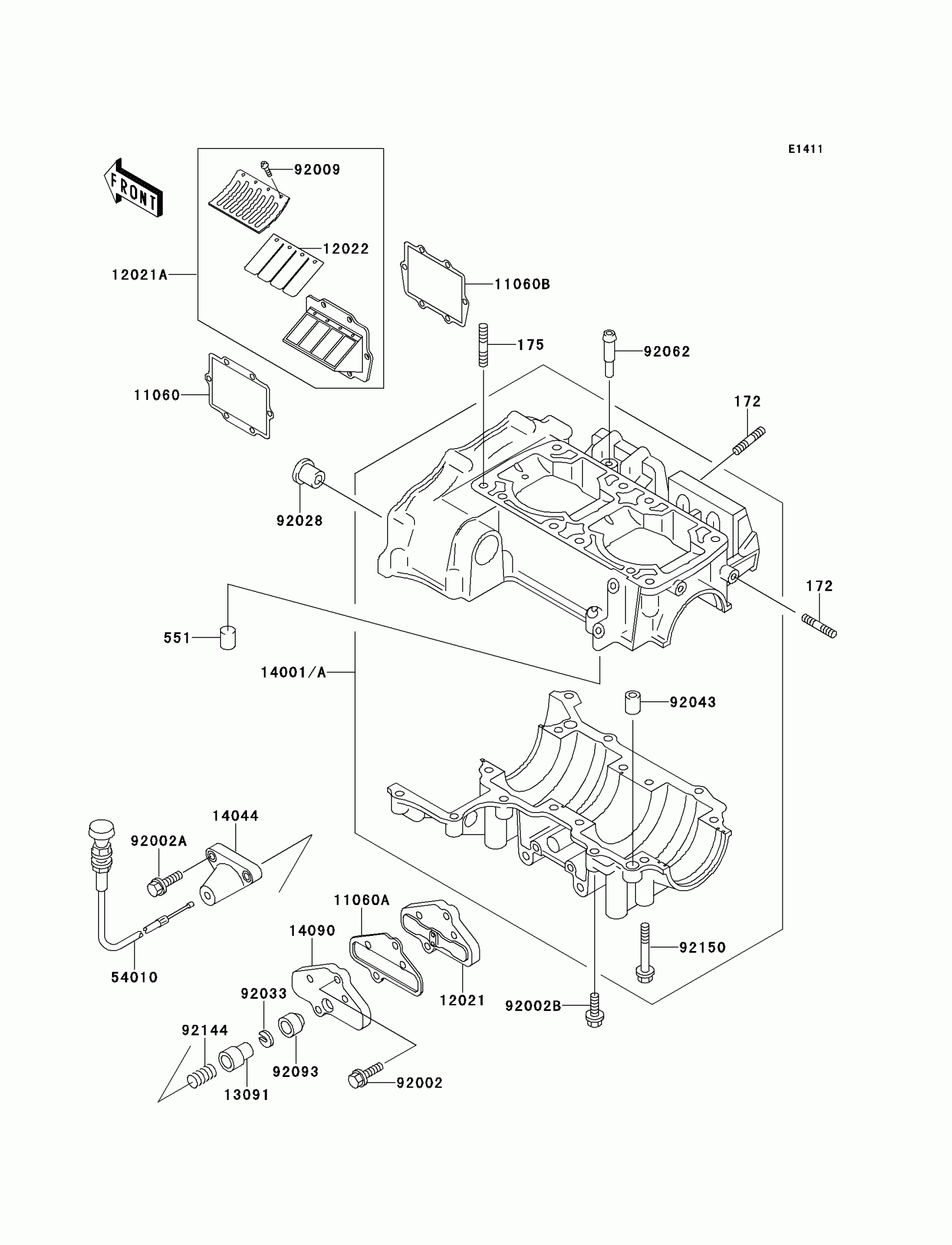

Kawasaki 750 SXi (Canada Only) Crankcase Diagram

Description

Price

172

BOLT-STUD,6X20

172R0620

$7.83

175

BOLT-STUD-FINE,10X35

175R1035

$10.56

551

PIN-DOWEL

551R0612

$4.69

11060

GASKET,REED VALVE

11060-3717

$17.78

11060A

GASKET,CONTROL VALVE

11060-3723

$12.82

11060B

GASKET,REED VALVE

11060-3757

$17.78

12021

VALVE-ASSY-REED,CONTROL

12021-3707

$151.66

12021A

VALVE-ASSY-REED

12021-3708

$150.51

12022

VALVE-REED

12022-3703

$27.37

13091

HOLDER

13091-3707

$4.62

14001A

SET-CRANKCASE

14001-5346

$674.51

14044

HOLDER-CABLE

14044-3702

$21.16

14090

COVER,CONTROL VALVE

14090-3734

Unavailable

54010

CABLE,CONTROL VALVE

54010-3707

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X45

92002-3717

$6.05

92002B

BOLT,6X30

92002-3726

$4.69

92009

SCREW,3X6

92009-1371

$4.18

92028

BUSHING

92028-3718

$9.43

92033

RING-SNAP

92033-3708

$3.15

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92062

NOZZLE

92062-3705

$8.44

92093

SEAL

92093-3703

$4.95

92144

SPRING

92144-3701

$4.95

92150

BOLT,8X65

92150-3708

$12.18
