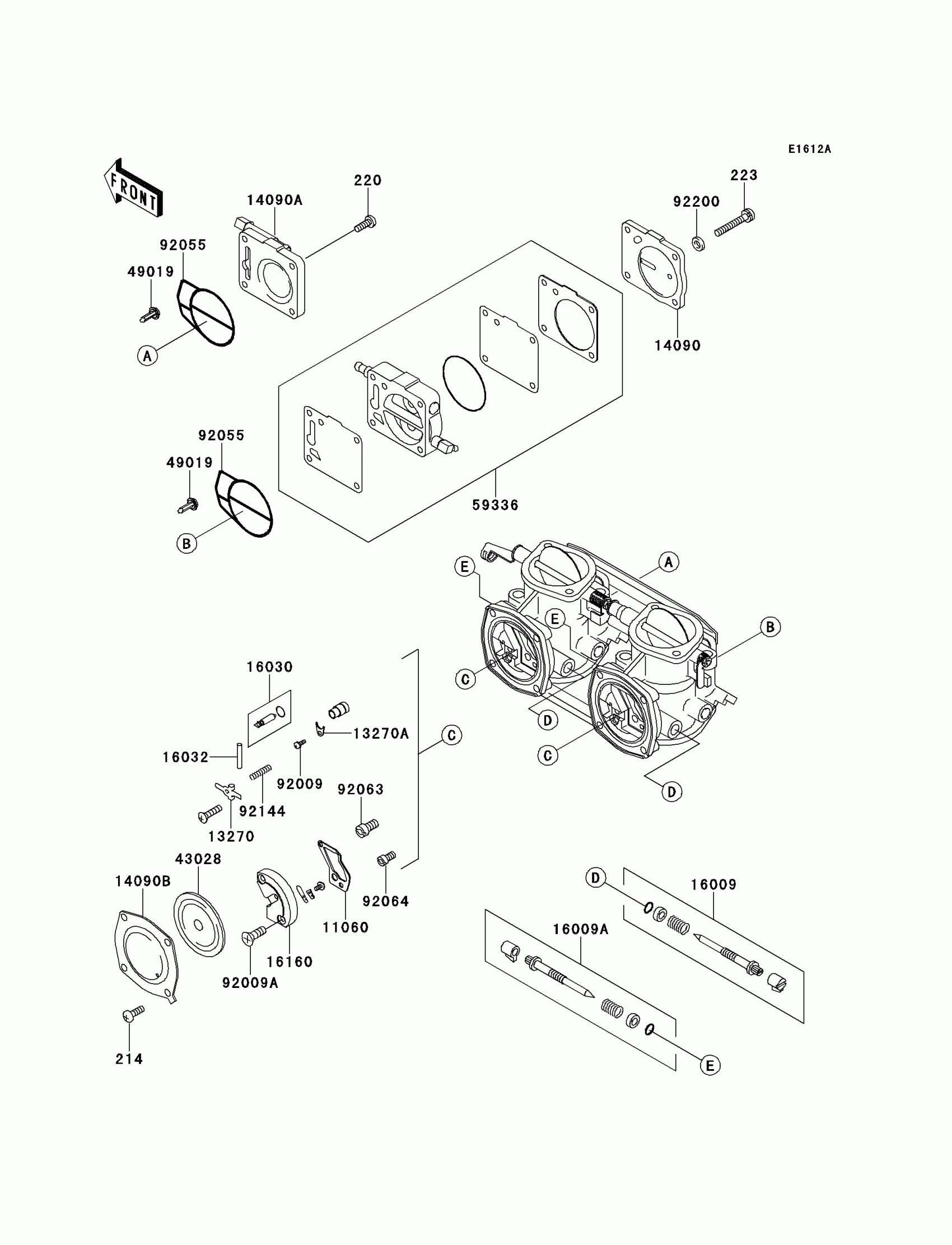

Kawasaki 750 SXi (Canada Only) Carburetor Parts(JS750-B2/B3) Diagram

Description

Price

214

SCREW-PAN+-,5X10

214R0510

$4.39

220

SCREW-PAN-CROS

220R0516

$5.00

223

SCREW-PAN-WS-CROS,5X35

223R0535

$5.88

11060

GASKET

11060-3774

$12.14

13270

PLATE

13270-3828

$64.96

13270A

PLATE

13270-3829

$59.77

14090

COVER

14090-3783

Unavailable

14090A

COVER

14090-3784

$43.96

14090B

COVER

14090-3785

$34.20

16009

NEEDLE-JET,SLOW

16009-3717

$49.90

16009A

NEEDLE-JET,MAIN

16009-3718

$49.90

16030

VALVE-FLOAT

16030-3703

$48.22

16032

FLOAT PIN

16032-006

$7.29

16160

BODY

16160-3737

$24.05

43028

DIAPHRAGM

43028-3709

$29.32

49019

FILTER-FUEL

49019-3713

$7.78

59336

CASE-PUMP,DIAPHRAGM

59336-3712

$164.61

92009

SCREW,3X7

92009-3821

$2.97

92009A

SCREW,4X14

92009-3822

$7.29

92055

RING-O

92055-3745

$17.14

92063

JET-MAIN,#147.5

92063-3715

Unavailable

92064

JET-PILOT,#67.5

92064-3701

$9.43

92144

SPRING

92144-3756

$11.38

92200

WASHER,5.3X10X1.0

92200-3745

$2.97
