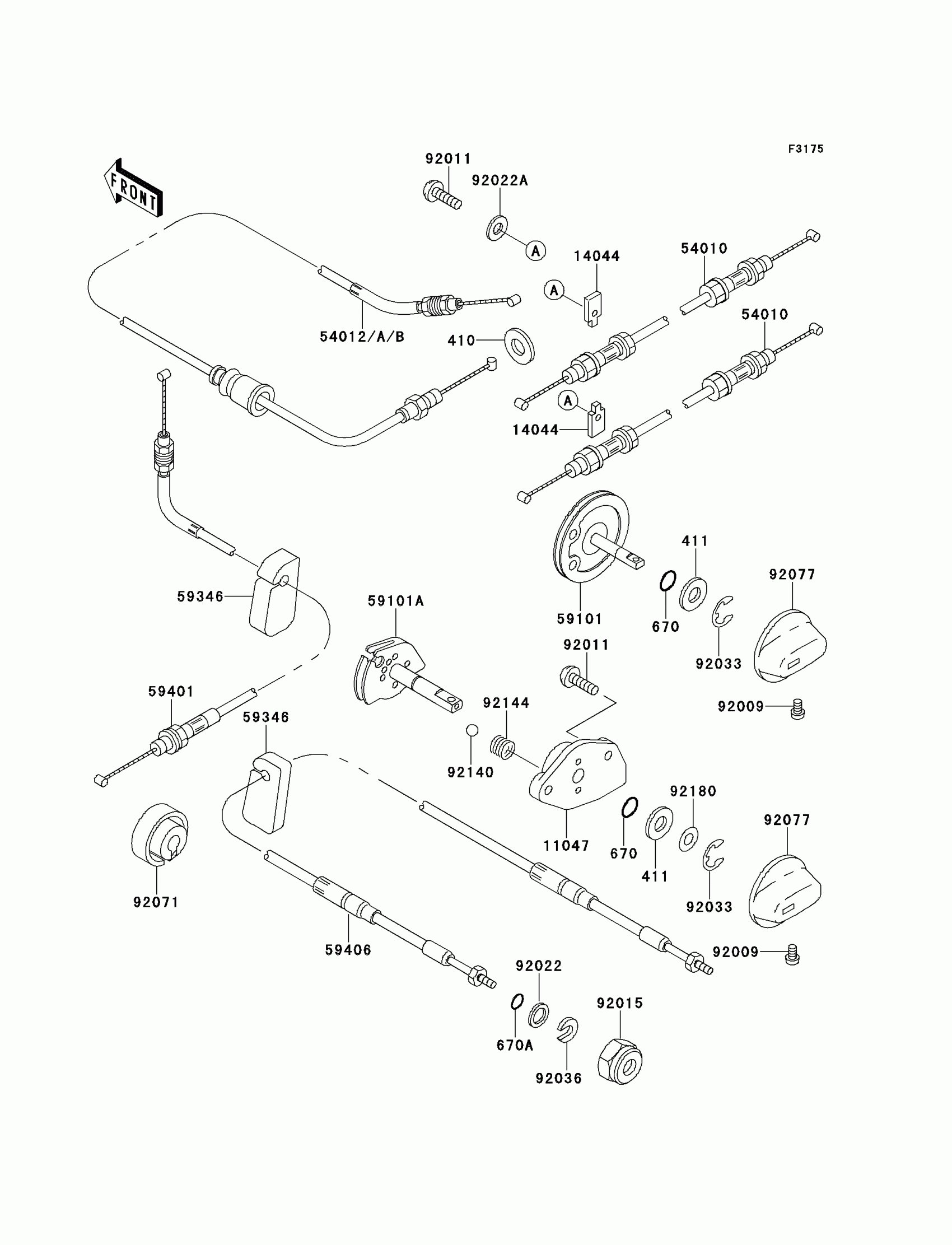

Kawasaki 750 SXi (Canada Only) Cables Diagram

Description

Price

411

WASHER-PLAIN,8MM

411S0800

$3.09

670

O RING,8MM

670B1508

$1.29

670A

O RING,11MM

670B2011

$1.28

11047

BRACKET,CHOKE CABLE

11047-3746

Unavailable

14044

HOLDER-CABLE

14044-3715

$5.96

54010

CABLE,SHIFT

54010-3706

Unavailable

54012B

CABLE-THROTTLE

54012-3753

$52.44

59101

REEL,SHIFT CABLE

59101-3709

$58.03

59101A

REEL,CHOKE CABLE

59101-3711

Unavailable

59346

DETENT

59346-504

$8.60

59401

CABLE-CHOKE

59401-3712

$31.99

59406

CABLE-STRG

59406-3726

$133.50

92009

SCREW,4X8

92009-3729

$6.61

92011

SCREW

92011-562

$1.65

92015

NUT,20MM

92015-526

$29.72

92022

WASHER

92022-535

$7.34

92022A

WASHER

92022-563

$1.13

92033

RING-SNAP,7MM

92033-3704

$2.94

92036

RING-SNAP

92036-501

Unavailable

92071

GROMMET

92071-3774

$8.37

92077

KNOB,CABLE

92077-3716

$19.45

92140

BALL,3MM

92140-3702

$4.95

92144

SPRING

92144-3712

$2.53

92180

SHIM,8.5X18X0.15

92180-3702

Unavailable
