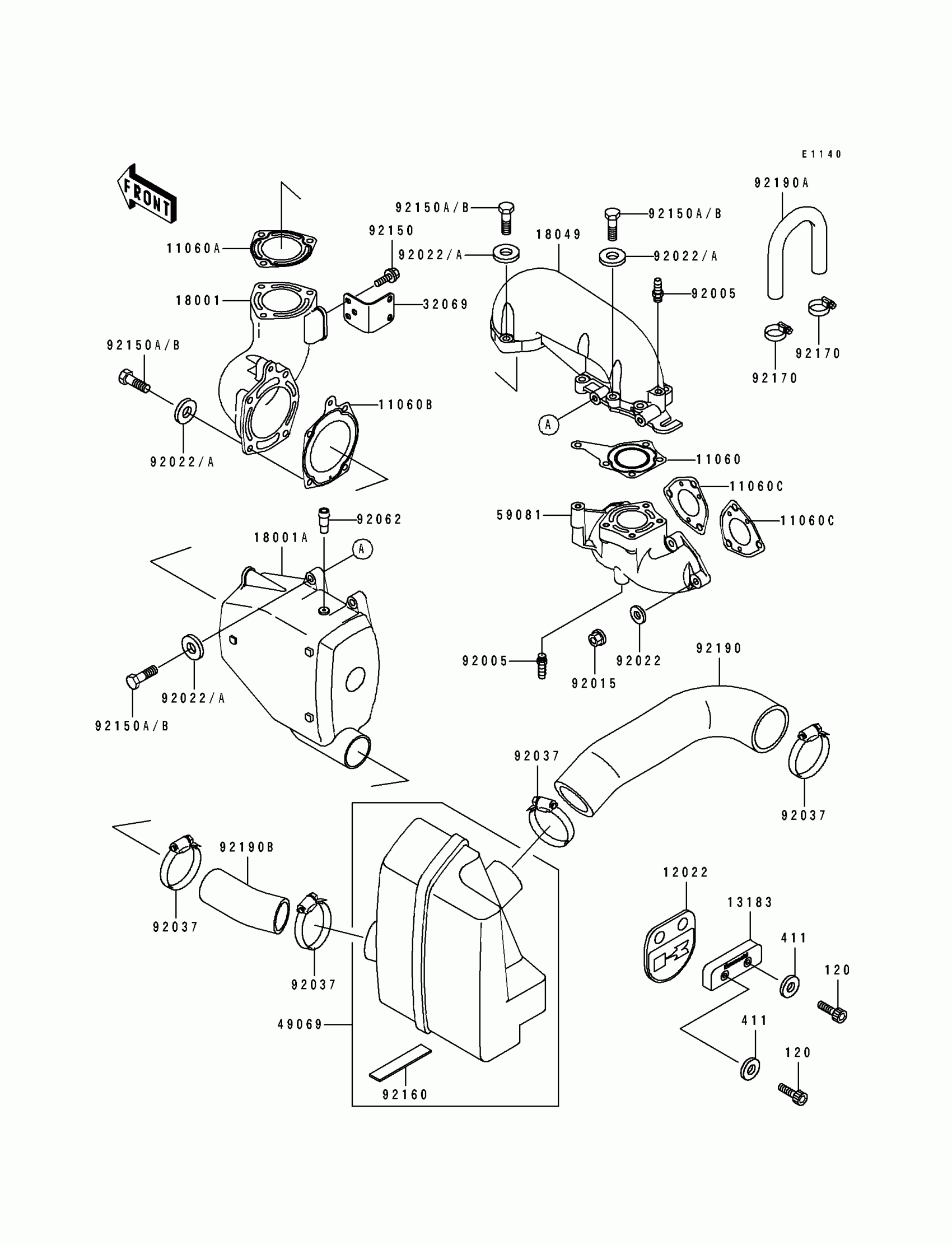

Kawasaki 750 SX Muffler(s) Diagram
#
Description
Price
11060
GASKET,EXHAUST
11060-3712
$33.70
11060A
GASKET,MUFFLER,FR
11060-3713
$31.98
11060B
GASKET,MUFFLER CHAMBER
11060-3714
$31.98
11060C
GASKET,EXHAUST PIPE
11060-3721
Unavailable
12022
VALVE-REED
12022-3705
Unavailable
13183
PLATE
13183-3817
Unavailable
18001
MUFFLER,FR
18001-3739
$249.44
18001A
MUFFLER
18001-3740
Unavailable
18049
PIPE-EXHAUST
18049-3750
Unavailable
32069
BRACKET-MUFFLER
32069-3707
Unavailable
49069
MUFFLER-ASSY,WATER
49069-3704
$357.59
59081
MANIFOLD-EXHAUST
59081-3709
Unavailable
92005
FITTING,HOSE
92005-3712
$10.88
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,8.2X18X1.5
92022-3743
$4.22
92037
CLAMP
92037-3009
$3.70
92062
NOZZLE
92062-3705
$8.44
92150
BOLT,8X16
92150-3722
$7.62
92150B
BOLT,8X35
92150-3833
$9.45
92160
DAMPER
92160-3793
$7.24
92170
CLAMP
92170-3718
$13.67
92190
TUBE,WATER MUFFLER-BULKHEAD
92190-3828
$49.60
92190A
TUBE,HEAD-EXHAUST PIPE
92190-3829
$18.58
92190B
TUBE,CHAMBER-WATER MUFFLER
92190-3919
$20.90
120
BOLT-SOCKET,6X20
120R0620
$3.92
411
WASHER-PLAIN,6MM
411S0600
$2.06
