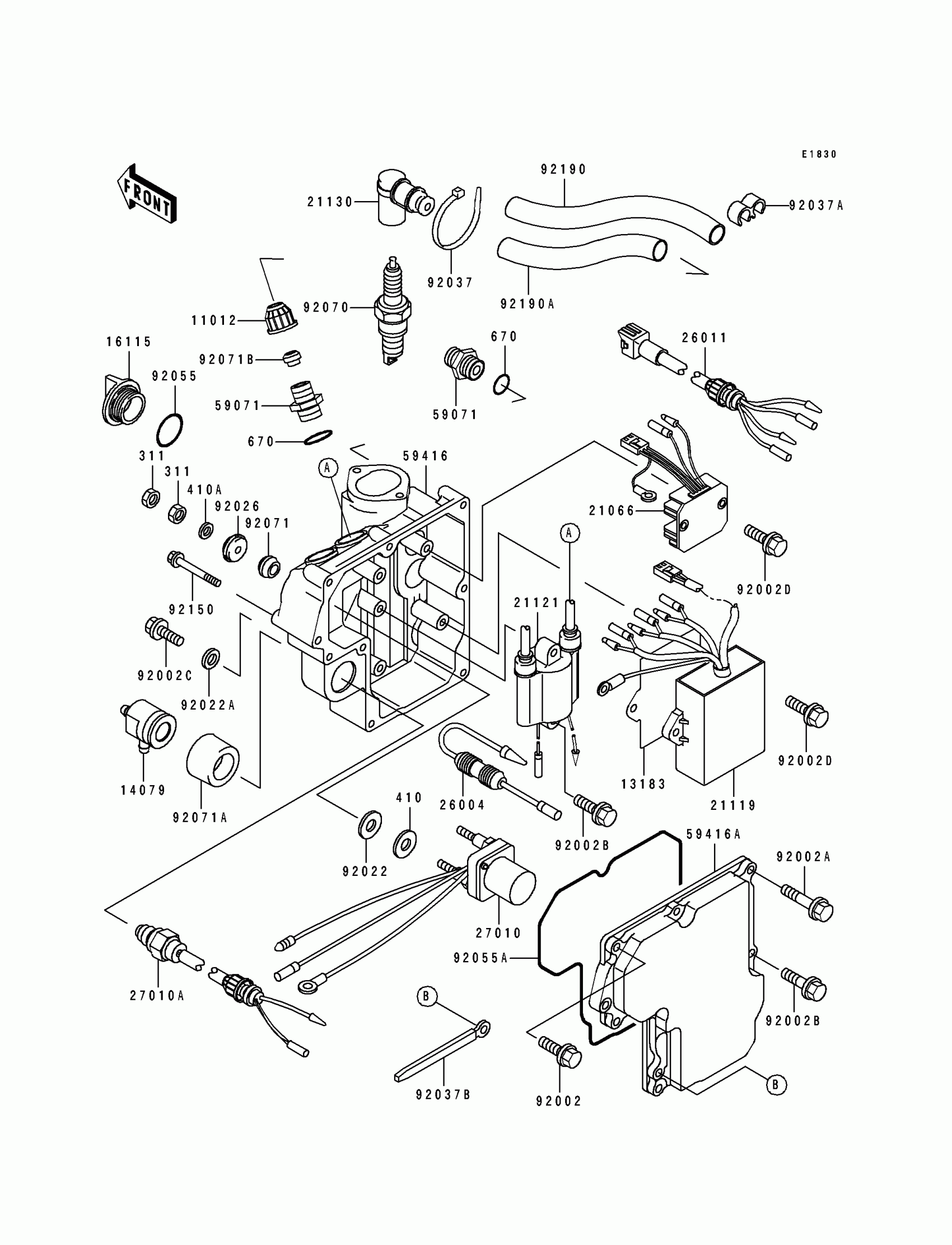

Kawasaki 750 SX Ignition System Diagram

#

Description
Price

11012

CAP

11012-3005

$5.54

13183

PLATE

13183-3811

$8.44

14079

HOLDER-ASSY

14079-3707

$98.62

16115

CAP-OIL FILLER

16115-1009

$14.30

21066

REGULATOR-VOLTAGE

21066-3709

$208.80

21119

IGNITER

21119-3733

Unavailable

21121

COIL-IGNITION

21121-3705

Unavailable

21130

CAP-SPARK PLUG

21130-3706

$52.27

26004

FUSE-ASSY

26004-3712

$55.72

26011

WIRE-LEAD

26011-3792

$130.74

27010

SWITCH,STARTER RELAY

27010-3724

$115.46

27010A

SWITCH,WATER SENSOR

27010-3725

$99.29

59071

JOINT

59071-3001

$6.29

59416

CASE-ELECTRIC

59416-3725

Unavailable

59416A

CASE-ELECTRIC

59416-3726

$52.58

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X40

92002-3716

$5.52

92002B

BOLT,6X30

92002-3726

$4.69

92002C

BOLT,6X16

92002-3728

$4.69

92002D

BOLT,6X20

92002-3755

$4.69

92022

WASHER

92022-3035

$3.52

92022A

WASHER

92022-567

$2.67

92026

SPACER

92026-3703

$4.69

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,HOSE

92037-1603

$5.00

92037B

CLAMP,L=100

92037-3736

$5.52

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,ELECTRIC CASE

92055-3731

$24.84

92070

PLUG-SPARK,BR8ES(NGK),SOLID

92070-2078

$3.62

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-3782

$12.62

92071B

GROMMET

92071-527

$6.68

92150

BOLT,6X85

92150-3763

$10.14

92190

TUBE,HIGH TENSION,L=330

92190-3707

$12.07

92190A

TUBE

92190-3886

Unavailable

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

670

O RING,16MM

670B2016

$1.36
