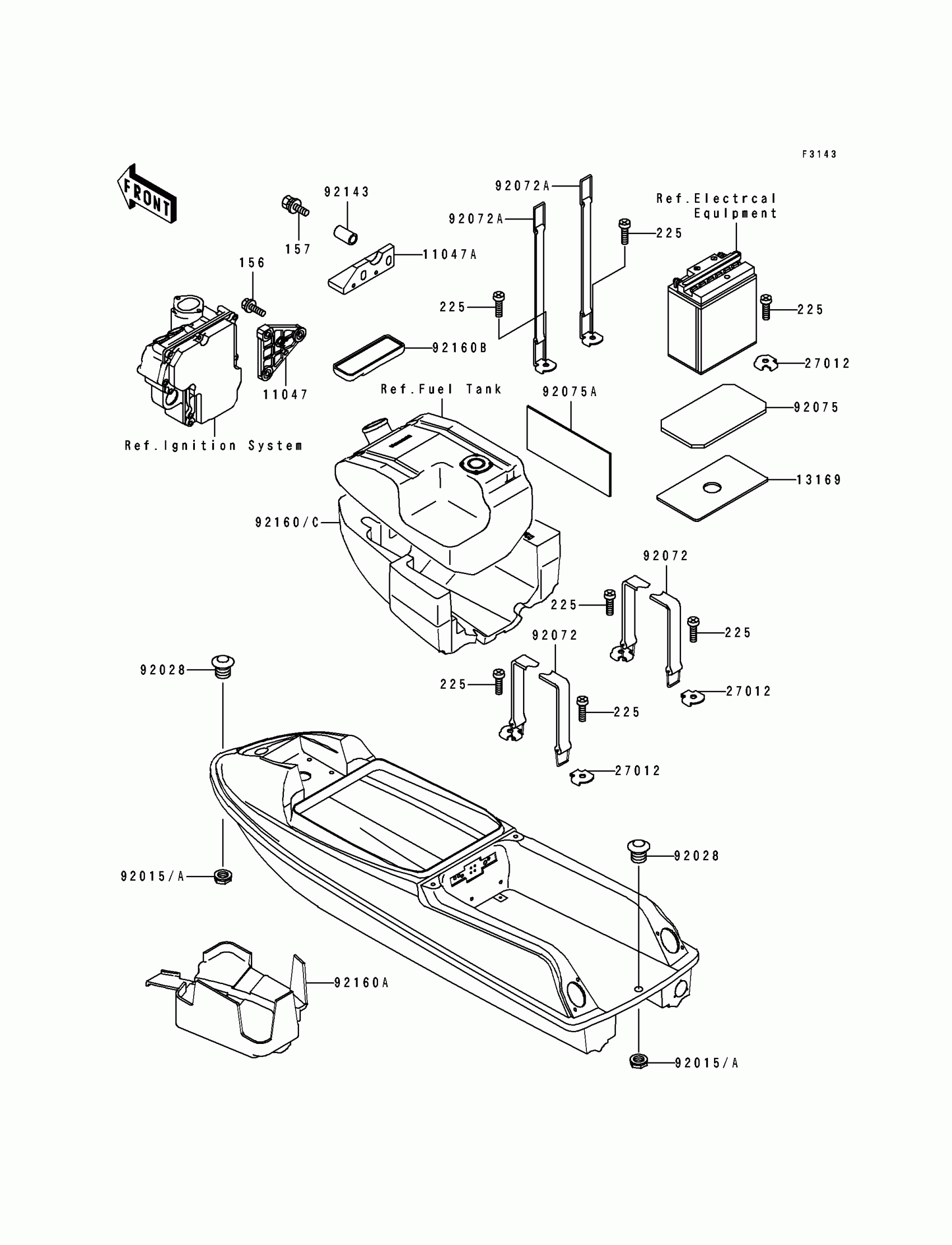

Kawasaki 750 SX Hull Fittings Diagram

Description

Price

11047

BRACKET

11047-3752

$139.93

11047A

BRACKET

11047-3753

Unavailable

13169

PLATE,BATTERY

13169-3014

Unavailable

27012

HOOK

27012-3758

Unavailable

92015A

NUT,26MM

92015-3840

$9.98

92028

BUSHING

92028-3734

$9.98

92072

BAND,FUEL TANK

92072-3763

Unavailable

92072A

BAND,BATTERY

92072-3766

Unavailable

92075

DAMPER,BATTERY

92075-509

$19.35

92075A

DAMPER,MUFFLER

92075-522

Unavailable

92143

COLLAR,6X8.5X14.7

92143-3728

Unavailable

92160A

DAMPER,WATER MUFFLER

92160-3770

Unavailable

92160B

DAMPER

92160-3777

$22.14

92160C

DAMPER,FUEL TANK

92160-3798

$107.27

156

BOLT-WP,6X25

156R0625

$4.76

157

BOLT-WSP,6X25

157R0625

$4.43

225

SCREW-PAN-WSP-CROS,6X12

225R0612

$2.65
