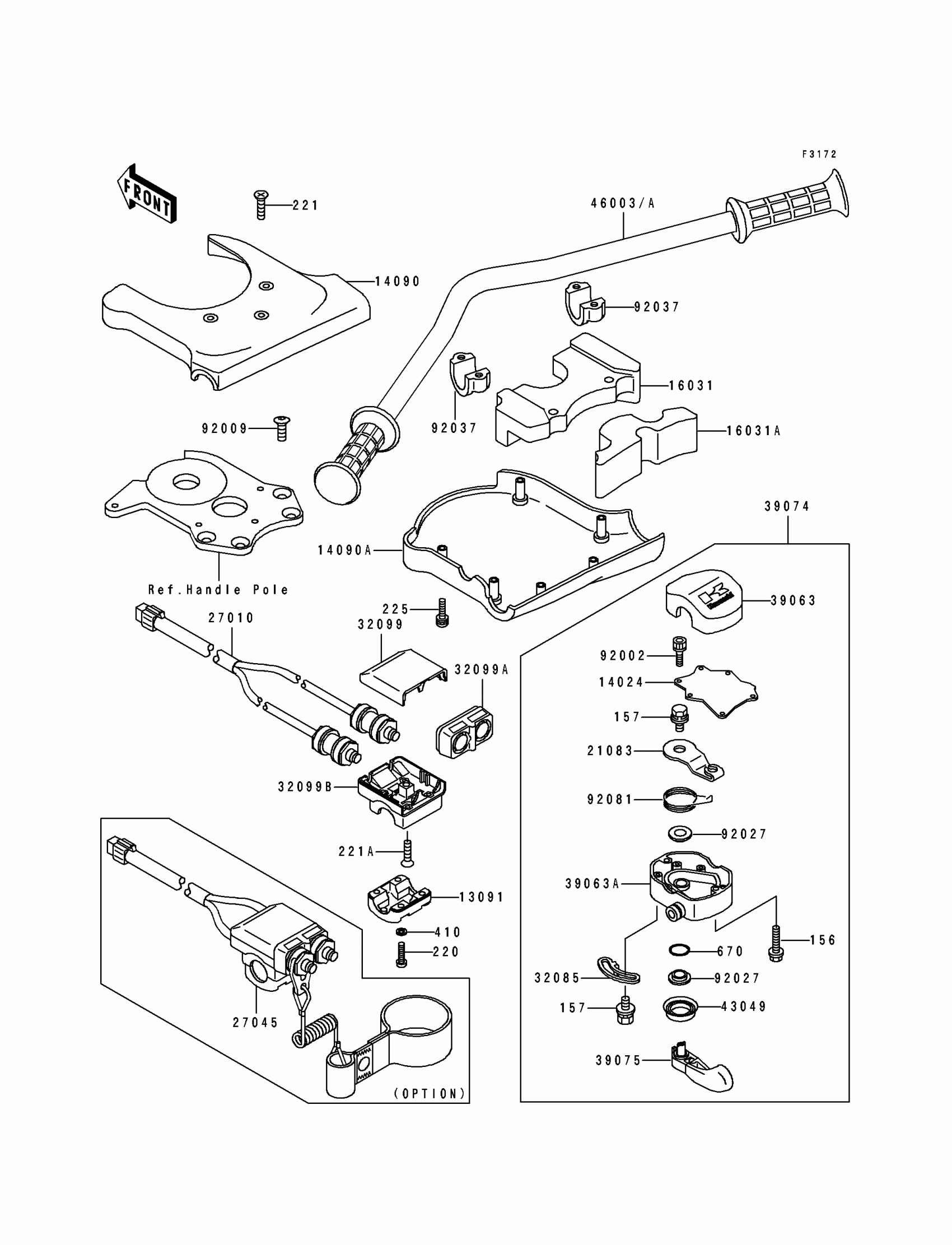

Kawasaki 750 SX Handlebar Diagram
#
Description
Price
13091
HOLDER,SWITCH
13091-3767
$43.63
14024
COVER,THROTTLE LEVER
14024-3701
Unavailable
14090
COVER,HANDLE,UPP,VIOLET
14090-3705-PJ
$436.20
14090A
COVER,HANDLE,LWR,VIOLET
14090-3706-PJ
$324.09
16031
FLOAT,HANDLE COVER
16031-3800
$66.07
16031A
FLOAT,HANDLE COVER
16031-3812
$56.35
21083
ARM,THROTTLE LEVER
21083-3701
$15.65
27010
SWITCH,STOP&START
27010-3732
$205.82
27045
SWITCH-ASSY,STOP&START
27045-3706
Unavailable
32085
STOPPER
32085-3709
Unavailable
32099
CASE,UPP,SWITCH
32099-3764
$36.90
32099A
CASE,FR,SWITCH
32099-3765
$46.07
32099B
CASE,LWR,SWITCH
32099-3766
$38.27
39063
HOUSING-CONTROL,UPP
39063-3713
Unavailable
39063A
HOUSING-CONTROL,LWR
39063-3714
$75.52
39074
LEVER-ASSY-THROTTLE
39074-3714
$229.21
39075
LEVER-THROTTLE
39075-3708
$67.20
43049
PACKING,THROTTLE LEVER
43049-3701
$7.69
46003A
HANDLE
46003-3728
$194.10
92002
BOLT,SOCKET,3X10
92002-3751
$5.46
92009
SCREW,8X22
92009-3701
$7.49
92027
COLLAR,THROTTLE LEVER
92027-3704
Unavailable
92037
CLAMP,HANDLEBAR
92037-503
$16.01
92081
SPRING,THROTTLE LEVER RETURN
92081-3702
$6.52
156
BOLT-WP,5X25
156R0525
$5.22
157
BOLT-WSP,5X12
157R0512
$2.78
220
SCREW-PAN-CROS,5X20
220R0520
$4.72
221
SCREW-CSK-CROS,6X16
221R0616
$1.41
221A
SCREW-CSK-CROS,6X25
221R0625
$4.45
225
SCREW-PAN-WSP-CROS,5X20
225R0520
$4.45
410
W-PLAIN-S,5MM
410S0500
$1.59
670
O RING,8MM
670B1508
$1.29
