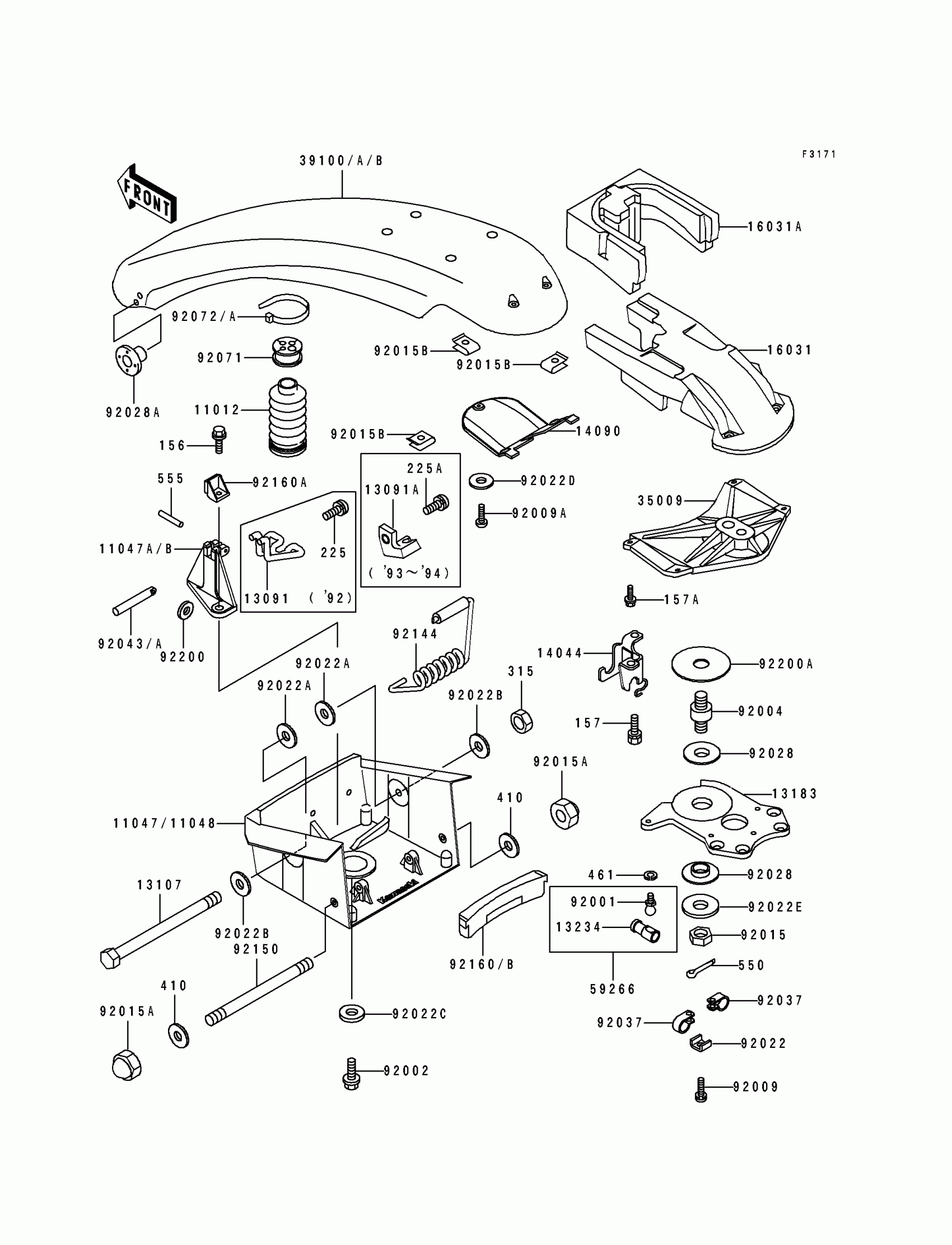

Kawasaki 750 SX Handle Pole(JS750-A1/A2/A3) Diagram
#
11012
CAP
11012-3754
Unavailable
11047B
BRACKET
11047-3800
Unavailable
11048
BRACKET,PIVOT SHAFT,J.WHITE
11048-3735-8C
Unavailable
13091A
HOLDER
13091-3774
$10.99
13107
SHAFT,PIVOT
13107-3725
$68.33
13183
PLATE,HANDLEBER
13183-3793
Unavailable
13234
SHAFT-COMP,JOINT
13234-3708
Unavailable
14044
HOLDER-CABLE
14044-3716
$42.37
14090
COVER,HANDLE POLE,J.WHITE
14090-3708-8C
$12.34
16031
FLOAT,HANDLE POLE
16031-3801
Unavailable
16031A
FLOAT,HANDLE POLE
16031-3809
Unavailable
35009
BRACE
35009-3707
$49.97
39100B
POLE-COMP-HANDLE,J.WHITE
39100-3711-8C
Unavailable
59266
JOINT-BALL
59266-3707
$66.16
92001
BOLT,BALL,6MM
92001-3703
Unavailable
92002
BOLT,8X25
92002-3774
$7.91
92004
STUD
92004-3728
$69.03
92009
SCREW,5X16
92009-3736
$5.20
92009A
SCREW,5X16
92009-3797
$2.67
92015
NUT,CASTLE,18MM
92015-3006
$37.87
92015A
NUT,CAP,6MM
92015-3755
$4.99
92015B
NUT,CLIP,5MM
92015-3830
$7.91
92022
WASHER,CLAMP
92022-3014
$4.76
92022A
WASHER,15X36X4.5
92022-3024
Unavailable
92022B
WASHER,15X34X2.0
92022-3738
$6.57
92022C
WASHER,8.5X34X3
92022-3746
$9.00
92022D
WASHER
92022-567
$2.67
92022E
WASHER
92022-571
$36.16
92028
BUSHING
92028-3743
$10.56
92028A
BUSHING,STEERING
92028-3752
$11.10
92037
CLAMP,LEAD WIRE
92037-3007
$7.31
92043A
PIN
92043-3739
Unavailable
92071
GROMMET
92071-3788
$13.08
92072A
BAND,L=201
92072-3778
$1.84
92144
SPRING
92144-3735
$99.57
92150
BOLT,6X119
92150-3787
$44.60
92160A
DAMPER
92160-3790
$7.94
92160B
DAMPER
92160-3818
Unavailable
92200
WASHER,3.5X12X1
92200-3723
$4.25
92200A
WASHER,20.5X80X3
92200-3725
$15.46
156
BOLT-WP,6X16
156R0616
$3.65
157
BOLT-WSP,6X16
157R0616
$4.66
157A
BOLT-WSP,6X20
157R0620
$3.90
225A
SCREW-PAN-WSP-CROS,5X16
225R0516
$4.99
315
NUT-HEX-FINE,14MM
315R1400
$7.91
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
461
WASHER-SPRING,6MM
461S0600
$1.07
550
PIN-COTTER,4X40
550S4040
$6.35
555
PIN-SPRING,3X25
555B0325
$3.98
