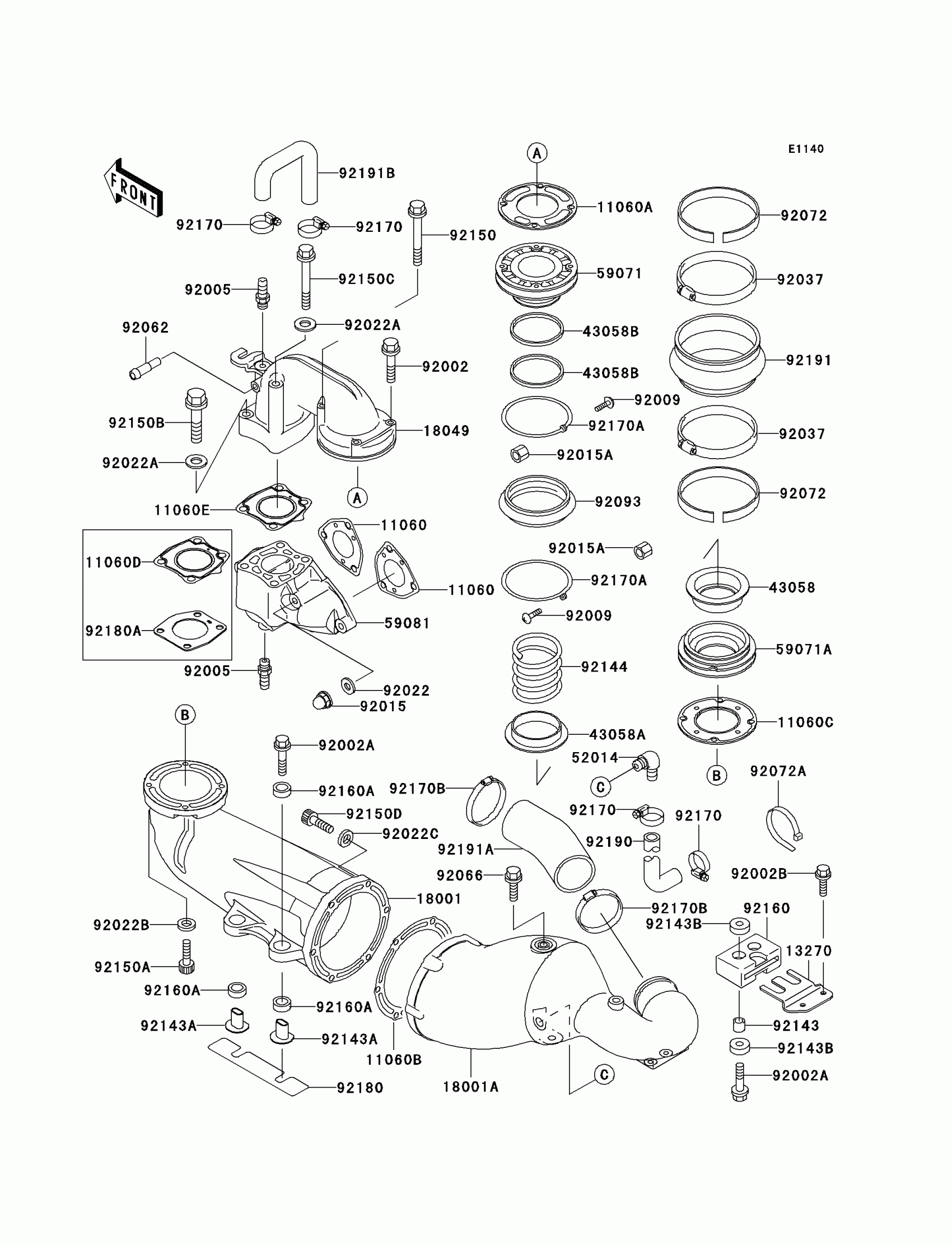

Kawasaki 750 STX Muffler(s) Diagram
#
11060
GASKET,EXHAUST MANIFOLD
11060-3759
$16.53
11060A
GASKET,EXHAUST-JOINT
11060-3763
$37.61
11060B
GASKET,MUFFLER
11060-3766
Unavailable
11060C
GASKET,JOINT-MUFFLER
11060-3770
$32.12
11060D
GASKET,EXHAUST-MANIFOLD
11060-3771
Unavailable
11060E
GASKET,EXHAUST-MANIFOLD
11060-3771
$38.46
13270
PLATE
13270-3816
Unavailable
18001
MUFFLER,FR
18001-3760
$269.90
18001A
MUFFLER,RR
18001-3770
Unavailable
18049
PIPE-EXHAUST
18049-3756
Unavailable
43058
RING
43058-3710
Unavailable
43058A
RING
43058-3711
Unavailable
43058B
RING
43058-3712
Unavailable
52014
ELBOW
52014-3711
$30.12
59071
JOINT
59071-3745
Unavailable
59071A
JOINT
59071-3746
Unavailable
59081
MANIFOLD-EXHAUST
59081-3718
Unavailable
92002
BOLT,6X35
92002-3715
$6.61
92002A
BOLT,6X40
92002-3716
$5.52
92002B
BOLT,6X16
92002-3728
$4.69
92005
FITTING,HOSE
92005-3712
$10.88
92009
SCREW,3X14
92009-3796
$3.32
92015
NUT,CAP,8MM
92015-1371
$5.00
92015A
NUT,3MM
92015-3825
$5.23
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92022B
WASHER,6MM
92022-3747
$1.84
92022C
WASHER
92022-562
$2.41
92037
CLAMP
92037-3706
$10.67
92062
NOZZLE
92062-3705
$8.44
92066
PLUG,CYLINDER HEAD
92066-3001
Unavailable
92072
BAND
92072-3793
Unavailable
92072A
BAND,L=368.3
92072-3808
$1.59
92093
SEAL
92093-3744
Unavailable
92143
COLLAR,7.5X10.5X9
92143-3714
Unavailable
92143A
COLLAR
92143-3759
Unavailable
92143B
COLLAR
92143-3760
Unavailable
92144
SPRING
92144-3751
Unavailable
92150
BOLT,6X80
92150-3761
$9.18
92150A
BOLT,SOCKET,6X18
92150-3775
$4.69
92150B
BOLT,10X50
92150-3819
$13.08
92150C
BOLT,10X145
92150-3820
$33.53
92150D
BOLT,SOCKET,8X30
92150-3851
Unavailable
92160
DAMPER,RR
92160-3774
Unavailable
92160A
DAMPER
92160-3879
Unavailable
92170
CLAMP
92170-3718
$13.67
92170A
CLAMP
92170-3748
$16.08
92170B
CLAMP
92170-3754
$13.41
92180
SHIM
92180-3703
Unavailable
92180A
SHIM
92180-3704
Unavailable
92190
TUBE,MANIFOLD-HULL
92190-3953
$43.37
92191
TUBE
92191-3733
Unavailable
92191A
TUBE,CHAMBER-MUFFLER
92191-3756
Unavailable
92191B
TUBE,HEAD-EXHAUST
92191-3766
$11.83
