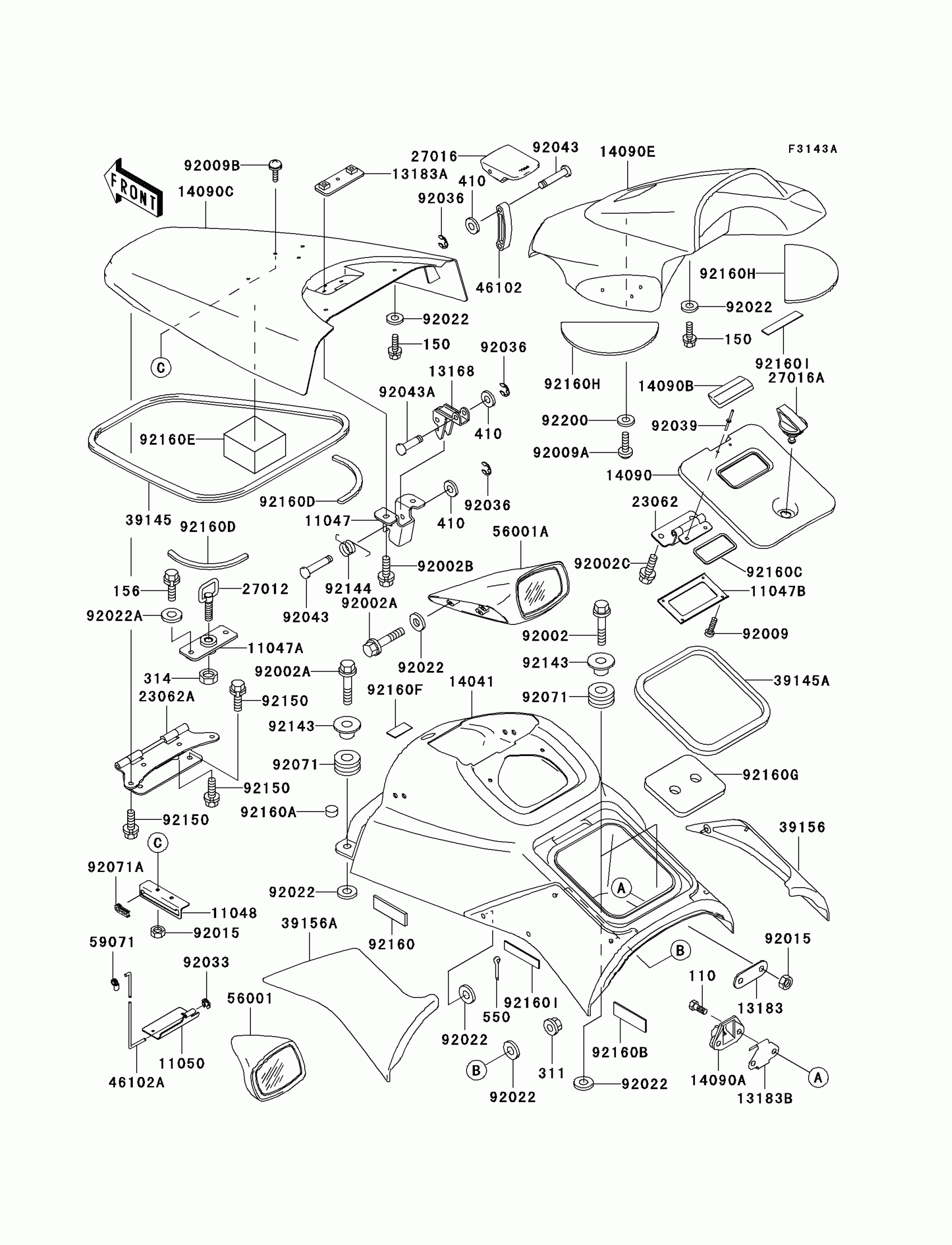

Kawasaki 750 STX Hull Fittings Diagram

#

Description
Price

11047

BRACKET,SEAT SIDE LOCK

11047-3732

Unavailable

11047A

BRACKET,HATCH COVER HINGE

11047-3788

Unavailable

11047B

BRACKET,METER HOLDER

11047-3789

Unavailable

11048

BRACKET,HATCH COVER

11048-3777

Unavailable

11050

BRACKET,HINGE

11050-3723

Unavailable

13168

LEVER,HATCH LOCK

13168-3720

$34.12

13183

PLATE

13183-3754

Unavailable

13183A

PLATE,HATCH LOCK

13183-3792

Unavailable

13183B

PLATE,STORAGE LOCK

13183-3832

Unavailable

14041

COVER-COMP,HANDLE,F.RED

14041-3705-B1

Unavailable

14090

COVER,STORAGE,F.RED

14090-3723-B1

Unavailable

14090A

COVER,STORAGE LOCK

14090-3729

Unavailable

14090B

COVER,HINGE

14090-3793

Unavailable

14090C

COVER,HATCH,F.RED

14090-3803-B1

Unavailable

14090E

COVER,HATCH COVER,F.RED

14090-3805-B1

Unavailable

23062

BRACKET-COMP,HINGE

23062-3706

Unavailable

23062A

BRACKET-COMP,HATCH COVER HINGE

23062-3707

Unavailable

27012

HOOK,HATCH COVER LOCK

27012-3769

Unavailable

27016

LOCK-ASSY,HATCH COVER CAP

27016-3738

Unavailable

27016A

LOCK-ASSY,STORAGE COVER

27016-3739

Unavailable

39145

TRIM-SEAL,FRONT HATCH

39145-3736

Unavailable

39145A

TRIM-SEAL,L=784

39145-3737

Unavailable

39156

PAD,HANDLE COVER,RH,RED

39156-3809-MJ

Unavailable

39156A

PAD,HANDLE COVER,LH,RED

39156-3810-MJ

Unavailable

46102

ROD,CONNECTION

46102-3724

Unavailable

46102A

ROD,HATCH COVER HINGE

46102-3726

Unavailable

56001

MIRROR-ASSY,LH,F.RED

56001-3707-6L

Unavailable

56001A

MIRROR-ASSY,RH,F.RED

56001-3708-6L

Unavailable

59071

JOINT

59071-3743

$6.89

92002

BOLT,6X35

92002-3715

$6.61

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X20

92002-3755

$4.69

92002C

BOLT,6X12

92002-3763

$4.69

92009

SCREW,TAPPING,4X14

92009-3762

$2.12

92009A

SCREW,5X16

92009-3789

$2.97

92009B

SCREW,6X18

92009-3805

$4.71

92015

NUT,6MM

92015-3767

$4.69

110

BOLT,6X16

110R0616

$3.13

150

BOLT-WS,6X14

150R0614

$5.96

156

BOLT-WP,6X20

156R0620

$3.65

311

NUT-HEX,5MM

311R0500

$1.75

314

NUT-HEX-FINE,10MM

314R1000

$2.02

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

550

PIN-COTTER

550S2020

$2.76

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92022A

WASHER,6.2X20X2

92022-3714

$4.18

92033

RING-SNAP,E-TYPE,4MM

92033-3722

$3.27

92036

RING,SNAP

92036-518

$1.56

92039

RIVET,4MM

92039-3703

$4.69

92043

PIN,6X27.5

92043-3732

$9.97

92043A

PIN,6X20

92043-3738

Unavailable

92071

GROMMET

92071-3716

$4.96

92071A

GROMMET

92071-3809

$5.05

92143

COLLAR

92143-3750

$6.81

92144

SPRING

92144-3731

Unavailable

92150

BOLT,6X18

92150-3729

$4.69

92160

DAMPER

92160-3720

$13.43

92160A

DAMPER

92160-3775

Unavailable

92160B

DAMPER,HANDLE COVER

92160-3811

Unavailable

92160C

DAMPER,METER

92160-3816

Unavailable

92160D

DAMPER

92160-3817

Unavailable

92160E

DAMPER

92160-3824

Unavailable

92160F

DAMPER,HANDLE COVER

92160-3825

Unavailable

92160G

DAMPER

92160-3826

Unavailable

92160H

DAMPER

92160-3895

Unavailable

92160I

DAMPER

92160-3898

Unavailable

92200

WASHER,5.9X16X1.5

92200-3714

$2.14
