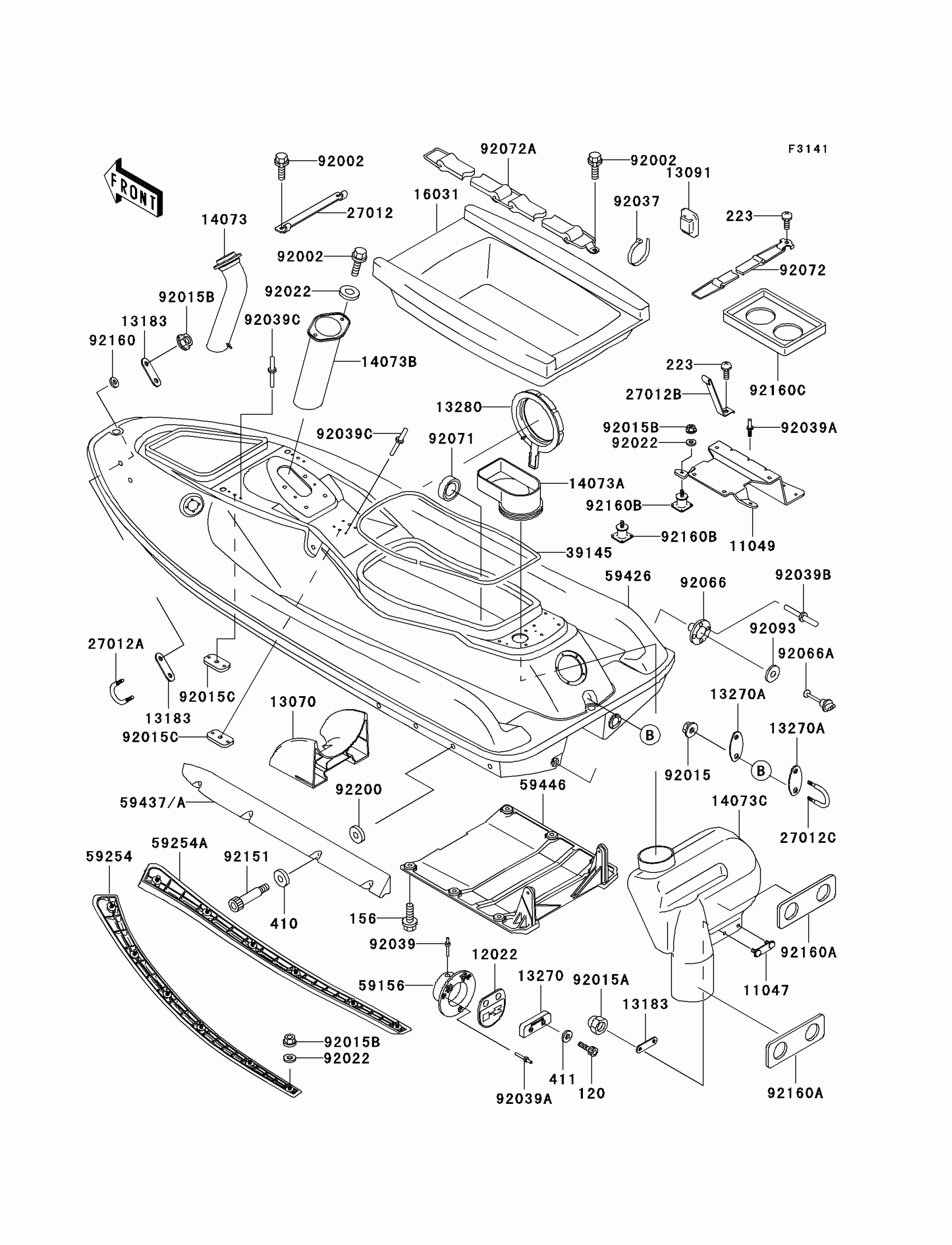

Kawasaki 750 STX Hull Diagram
#
11047
BRACKET,RR DUCT
11047-3774
Unavailable
11049
BRACKET
11049-3730
Unavailable
12022
VALVE-REED
12022-3706
$31.76
13070
GUIDE,INTAKE
13070-3722
Unavailable
13091
HOLDER,BAND
13091-3764
$5.17
13183
PLATE
13183-3809
$7.34
13270
PLATE
13270-3785
$8.16
13270A
PLATE
13270-3860
$8.38
13280
HOLDER
13280-3702
Unavailable
14073
DUCT,FR
14073-3741
Unavailable
14073A
DUCT,RR,INNER
14073-3743
Unavailable
14073B
DUCT,FR
14073-3746
Unavailable
14073C
DUCT,RR,UPPER
14073-3756
Unavailable
16031
FLOAT
16031-3815
Unavailable
27012
HOOK,BOW EYE
27012-3766
$20.79
27012A
HOOK
27012-3776
$38.41
27012B
HOOK
27012-3789
Unavailable
27012C
HOOK
27012-3797
$32.29
39145
TRIM-SEAL,L=2170
39145-3741
Unavailable
59156
PIPE-TAIL
59156-3711
Unavailable
59254
DEFLECTOR,LH
59254-3702
$57.47
59254A
DEFLECTOR,RH
59254-3703
Unavailable
59426
HULL-COMP,J.WHITE
59426-3891-8C
$2,962.97
59437
STABILIZER,LH,F.RED
59437-3719-6L
$175.51
59437A
STABILIZER,RH,F.RED
59437-3720-6L
$175.51
59446
COVER-JET PUMP
59446-3734
$206.95
92002
BOLT,6X16
92002-3728
$4.69
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92015A
NUT,CAP,6MM
92015-3755
$4.99
92015B
NUT,6MM
92015-3767
$4.69
92015C
NUT
92015-3815
Unavailable
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92037
CLAMP
92037-1173
$3.49
92039
RIVET,4.8MM
92039-3719
$6.22
92039A
RIVET
92039-3721
Unavailable
92039B
RIVET
92039-3757
Unavailable
92039C
RIVET,4X19.5
92039-3764
Unavailable
92066
PLUG,RR,DRAIN
92066-3724
Unavailable
92066A
PLUG,RR,DRAIN
92066-3744
$20.70
92071
GROMMET
92071-3783
Unavailable
120
BOLT-SOCKET,6X16
120R0616
$3.65
156
BOLT-WP,6X20
156R0620
$3.65
223
SCREW-PAN-WS-CROS,6X14
223R0614
$3.34
410
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
411
WASHER-PLAIN,6MM
411S0600
$2.06
92072
BAND,BATTERY
92072-3766
Unavailable
92072A
BAND,FUEL TANK
92072-3772
Unavailable
92093
SEAL
92093-3720
$3.62
92151
BOLT,SOCKET,6X40
92151-3719
$6.41
92160
DAMPER
92160-1011
$4.11
92160A
DAMPER
92160-3722
Unavailable
92160B
DAMPER
92160-3823
Unavailable
92160C
DAMPER
92160-3872
Unavailable
92200
WASHER,6X16X3
92200-3754
$4.67
