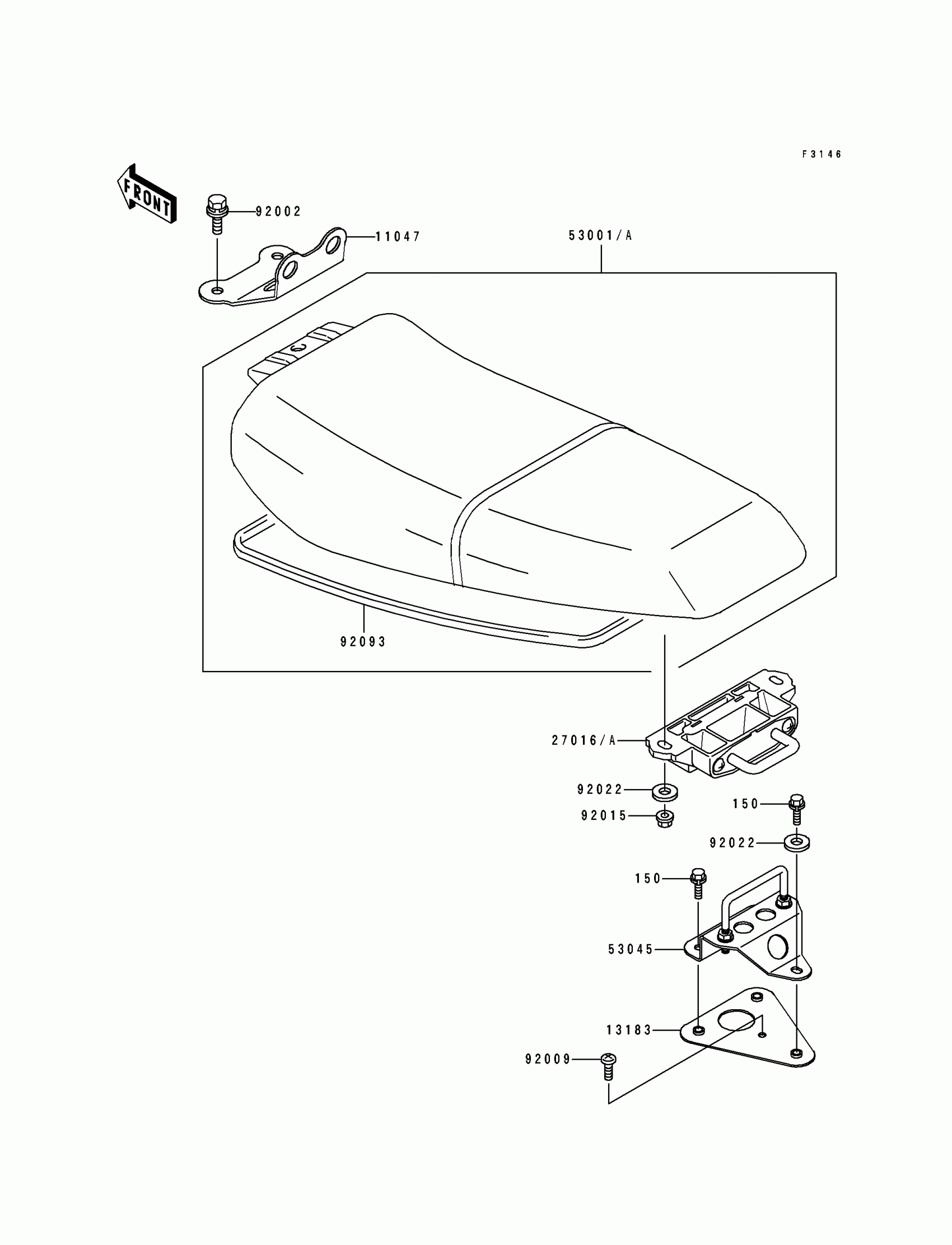

Kawasaki 750 SS Seat(KAW22251 94) Diagram

Description

Price

11047

BRACKET,SEAT,FR

11047-3766

Unavailable

13183

PLATE,SEAT LOCK HOOK

13183-3820

Unavailable

27016

LOCK-ASSY,SEAT

27016-3722

$77.59

27016A

LOCK-ASSY,SEAT

27016-3731

$106.50

53001A

SEAT-ASSY,BLUE 41

53001-3718-LM

Unavailable

53045

HOOK-ASSY,SEAT LOCK

53045-3704

$76.81

92002

BOLT,8X25

92002-3774

$7.91

92009

SCREW,5X16

92009-3789

$2.97

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92093

SEAL,SEAT

92093-3735

Unavailable

150

BOLT-WS,6X16

150R0616

$3.65
