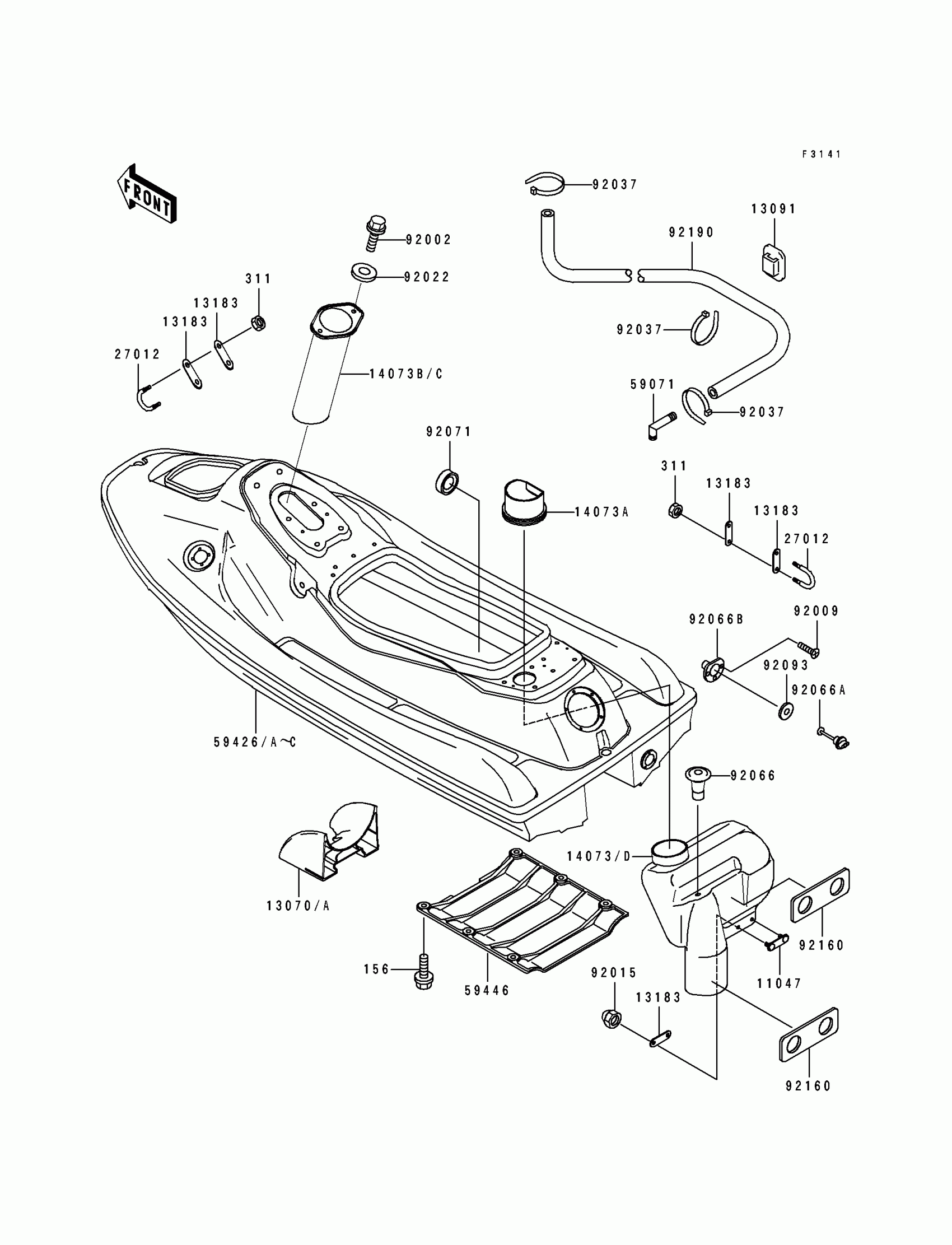

Kawasaki 750 SS Hull Diagram
#
Description
Price
11047
BRACKET,RR DUCT
11047-3774
Unavailable
13070A
GUIDE,INTAKE
13070-3713
$107.11
13091
HOLDER,BAND
13091-3764
$5.17
13183
PLATE
13183-3809
$7.34
14073A
DUCT,INTAKE
14073-3739
Unavailable
14073C
DUCT,FR
14073-3746
Unavailable
14073D
DUCT,RR,MAIN
14073-3747
Unavailable
27012
HOOK
27012-3761
$36.68
59071
JOINT
59071-3733
Unavailable
59426C
HULL-COMP,J.WHITE
59426-3831-8C
$3,019.59
59446
COVER-JET PUMP
59446-3720
Unavailable
92002
BOLT,6X16
92002-3728
$4.69
92009
SCREW,TAPPING,4X14
92009-3755
$2.55
92015
NUT,CAP,6MM
92015-3755
$4.99
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92037
CLAMP
92037-1173
$3.49
92066
PLUG
92066-3706
$5.14
92066A
PLUG,RR,DRAIN
92066-3744
$20.70
92066B
PLUG,RR,DRAIN
92066-3747
$21.09
92071
GROMMET
92071-3783
Unavailable
92093
SEAL
92093-3720
$3.62
92160
DAMPER
92160-3722
Unavailable
92190
TUBE,5X10X1000
92190-3896
Unavailable
156
BOLT-WP,6X20
156R0620
$3.65
311
NUT-HEX,6MM
311R0600
$0.70
