Description

Price

11047

BRACKET,HANDLE HOLDER

11047-3759

$107.88

13183

PLATE,HANDLE POLE BRACKET

13183-3806

Unavailable

13234

SHAFT-COMP,JOINT

13234-3708

Unavailable

13270

PLATE

13270-3780

$7.98

39021

BRACKET-HANDLE POLE

39021-3704

Unavailable

39117

SHAFT-STRG

39117-3706

Unavailable

59266

JOINT-BALL

59266-3707

$66.16

92001

BOLT,BALL,6MM

92001-3703

Unavailable

92002

BOLT,8X25

92002-3774

$7.91

92009

SCREW,5X16

92009-3789

$2.97

92015

NUT,CASTLE,14MM

92015-3805

$35.50

92015C

NUT

92015-3852

$109.82

92022

WASHER,15X34X2.0

92022-3738

$6.57

92028

BUSHING,STEERING

92028-3748

$25.59

92071

GROMMET

92071-3792

$9.34

92144

SPRING

92144-3737

$20.14

92200

WASHER,32.5X70X2

92200-3718

$16.69

120

BOLT-SOCKET,5X10

120R0510

$3.94

550

PIN-COTTER,3X35

550S3035

$4.22

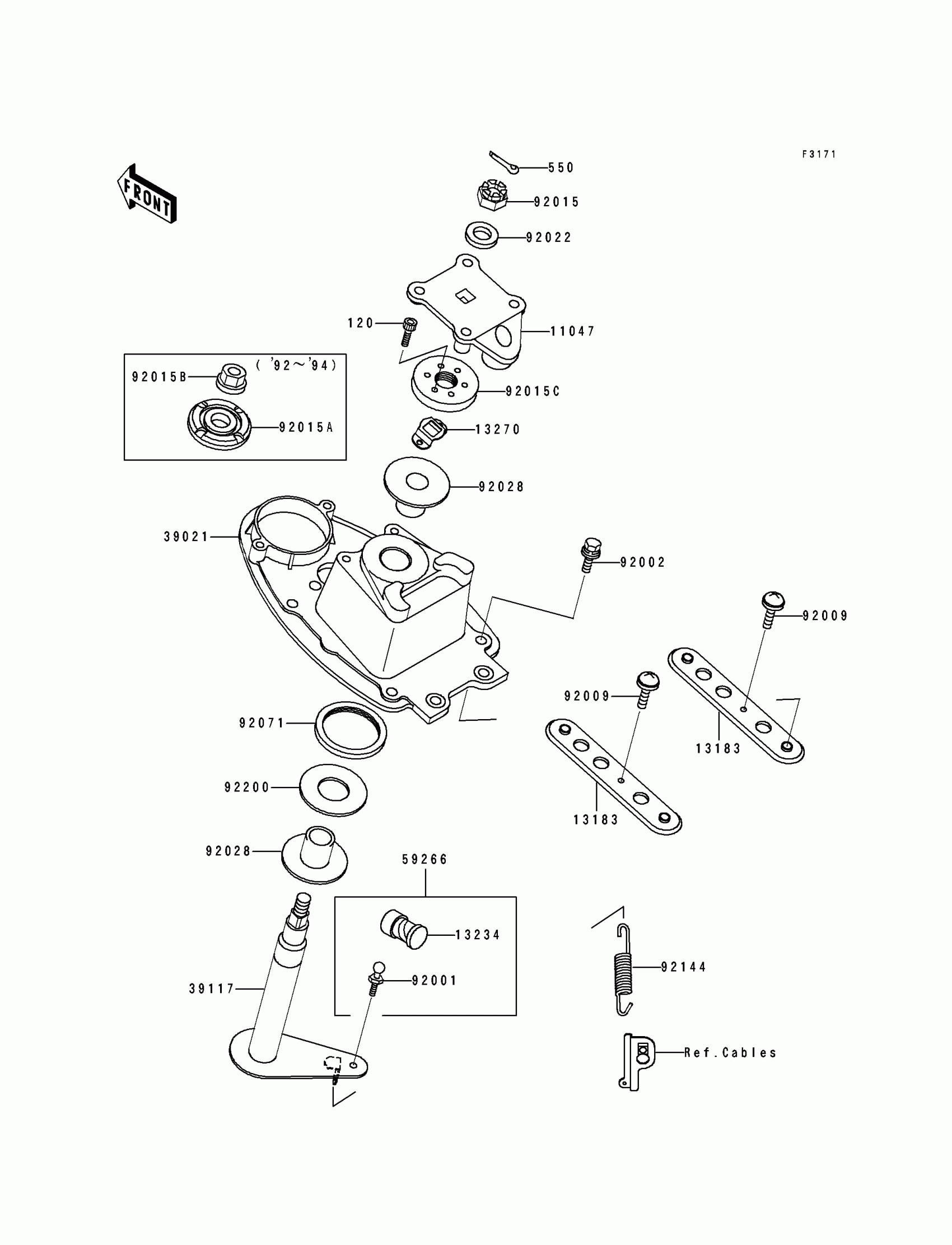

Kawasaki 750 SS Handle Pole Diagram

BRACKET,HANDLE HOLDER

PLATE,HANDLE POLE BRACKET

SHAFT-COMP,JOINT

PLATE

BRACKET-HANDLE POLE

SHAFT-STRG

JOINT-BALL

BOLT,BALL,6MM

BOLT,8X25

SCREW,5X16

NUT,CASTLE,14MM

NUT

WASHER,15X34X2.0

BUSHING,STEERING

GROMMET

SPRING

WASHER,32.5X70X2

BOLT-SOCKET,5X10

PIN-COTTER,3X35
