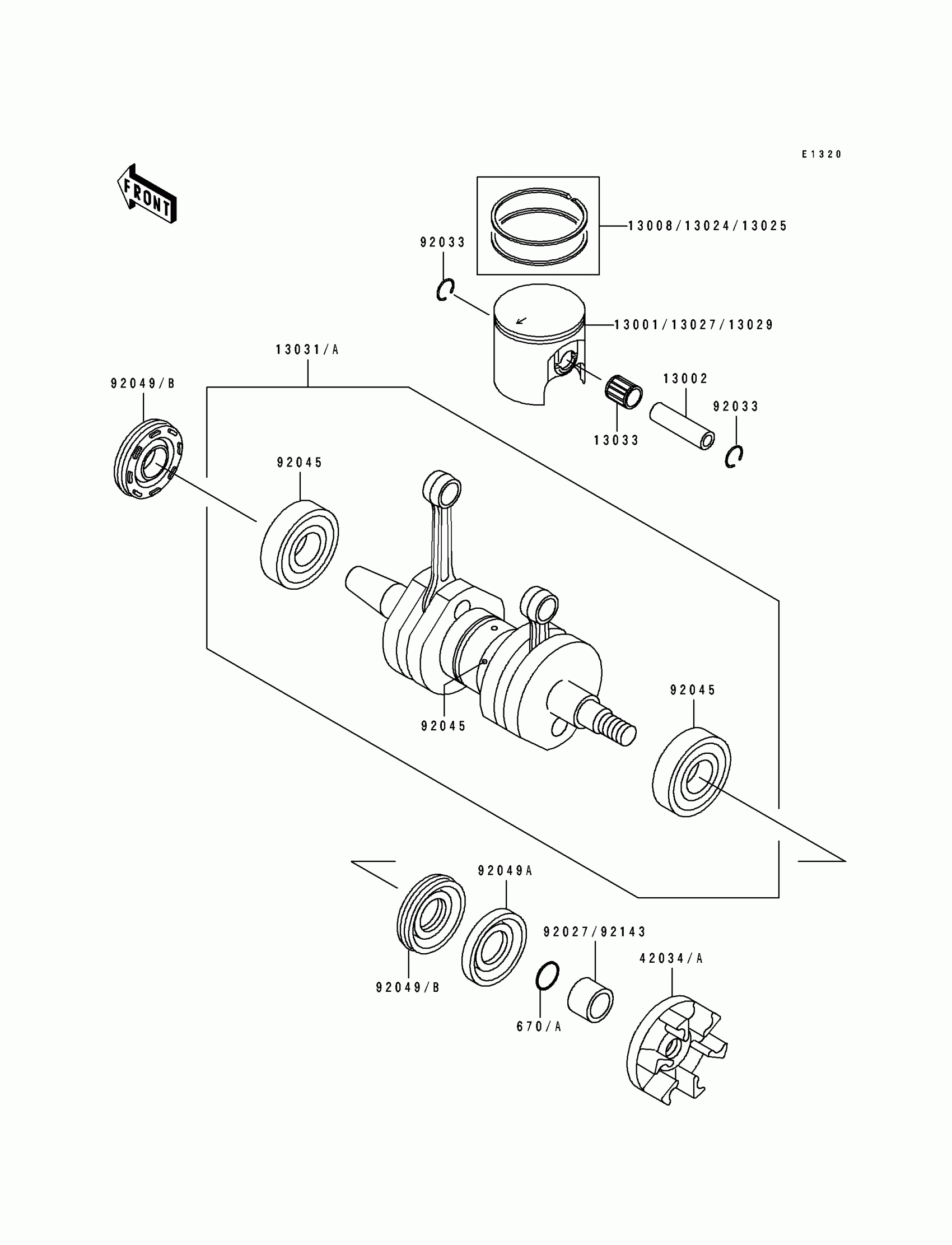

Kawasaki 750 SS Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,STD

13001-3718

Unavailable

13002

PIN-PISTON

13002-3702

$29.79

13008

RING-SET-PISTON,STD

13008-3708

$76.68

13024

RING-SET-PISTON LL,O/S 1.00

13024-3706

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-3706

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3710

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3710

Unavailable

13031A

CRANKSHAFT-COMP

13031-3726

$1,197.56

13033

BEARING-SMALL END

13033-3702

$30.21

42034A

COUPLING

42034-3707

$53.42

92033

RING-SNAP

92033-1207

$2.38

92045

BEARING-BALL

92045-3714

$45.18

92049A

SEAL-OIL,S30726

92049-3706

$14.43

92049B

SEAL-OIL,FWJ7307210ZS

92049-3713

$33.99

92143

COLLAR

92143-3735

$37.85

670A

O RING,16MM

670B2016

$1.36
